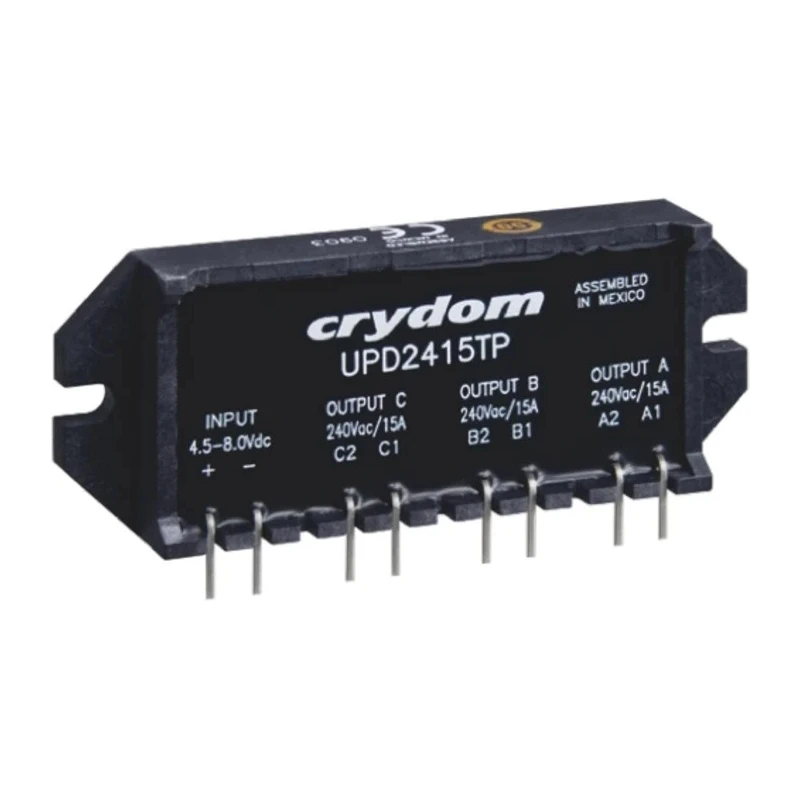

Crydom UPD24TP Series Solid State Relay, 15A Load, PCB Mount, 280 Vrms Load, 8V DC Control
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Dimensions | H28 x W78 x D12.7mm |
| Height | 29mm |
| Operating Temperature Range | - 40 → + 80°C |
| Length | 78.4mm |
| Model | UPD24TP |
| Width | 13mm |
| Mount Type | PCB |
| Output type | SCR |
| Series | UPD24TP |
| Maximum Operating Temperature | +80°C |
| Contact Configuration | 3PST |
| Package Type | SIP-8 |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Switching Function | Instantaneous Switching |
| Maximum Load Current | 15A |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-6001Brand: CrydomManufacturers Part No.: UPD2415TP-10 |
| Minimum Control Voltage | 4.5V dc |
| Maximum Control Voltage | 8V dc |
| Off State Leakage Current | 10mArms |
Key Features
- Supports maximum load current of 15 amps for heavy industrial applications.
- Designed as a PCB mount solid state relay ensuring compact and reliable integration.
- Operates with a maximum load voltage of 280 Vrms, suitable for AC power control.
- Control voltage range supports 4.5V to 8V DC for precise activation.
- Features triple-pole single-throw (3PST) contact configuration for versatile switching.
- Through-hole terminal type supports secure and stable connections.
- Instantaneous switching function without delay enhances performance.
- Operating temperature range from -40°C to +80°C for harsh environments.
Product Description
Crydom UPD2415TP-10 solid state relay (model UPD24TP Series) is engineered for high current AC load switching applications. It supports up to 15 amps load current with a maximum load voltage of 280 Vrms and is designed for PCB mounting in a SIP-8 package.
The relay operates with a control voltage range from 4.5V to 8V DC, instant switching function ensures immediate response, and the triple pole single throw (3PST) contact configuration offers versatile load management. Through-hole terminals allow secure and stable PCB connections.
The UPD2415TP-10 is rated for operation from -40°C to +80°C, making it suitable for harsh industrial environments. Its small size (78.4mm length by 29mm height and 13mm width) and low off state leakage current (10mArms) minimize energy loss and improve system efficiency.
This product complies with RoHS standards and is ideal for various industrial automation, manufacturing, heating control, HVAC, and electrical system integration applications where compact, efficient, and durable solid state relays are required.
Maximum load current: 15A for high power handling. PCB mounting SIP-8 package for compact system design. 280 Vrms maximum load voltage suitable for AC systems. Control voltage range from 4.5V to 8V DC for precise control.
Triple pole single throw contact configuration. Operating temperature range: -40°C to +80°C. Through-hole terminal style for reliable connections. Instantaneous switching function for quick response. Low off state leakage current of 10mArms.
Capacitance of 8pF ensures minimal signal distortion. SCR output suitable for heavy industrial loads. Explore more Solid State Relays and industrial automation components in the Electronics & Electricals category at EnvMart to find the perfect fit for your control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum load current of 15 amps, making it suitable for heavy industrial applications.
The maximum load voltage for this relay is 280 Vrms, which is suitable for AC power control.
It operates with a control voltage range from 4.5V to 8V DC for precise activation.
It features a triple-pole single-throw (3PST) contact configuration, allowing for versatile switching.
The dimensions of this relay are 78.4mm in length, 29mm in height, and 13mm in width.
It operates effectively within a temperature range of -40°C to +80°C, suitable for harsh environments.
This model is designed for PCB mounting, ensuring compact and reliable integration into systems.
It features an instantaneous switching function, which ensures immediate response during operation.
The off state leakage current is rated at 10mArms, minimizing energy loss.
Yes, this product complies with RoHS standards, ensuring it meets environmental regulations.
It utilizes through-hole terminals, which provide secure and stable connections on the PCB.
