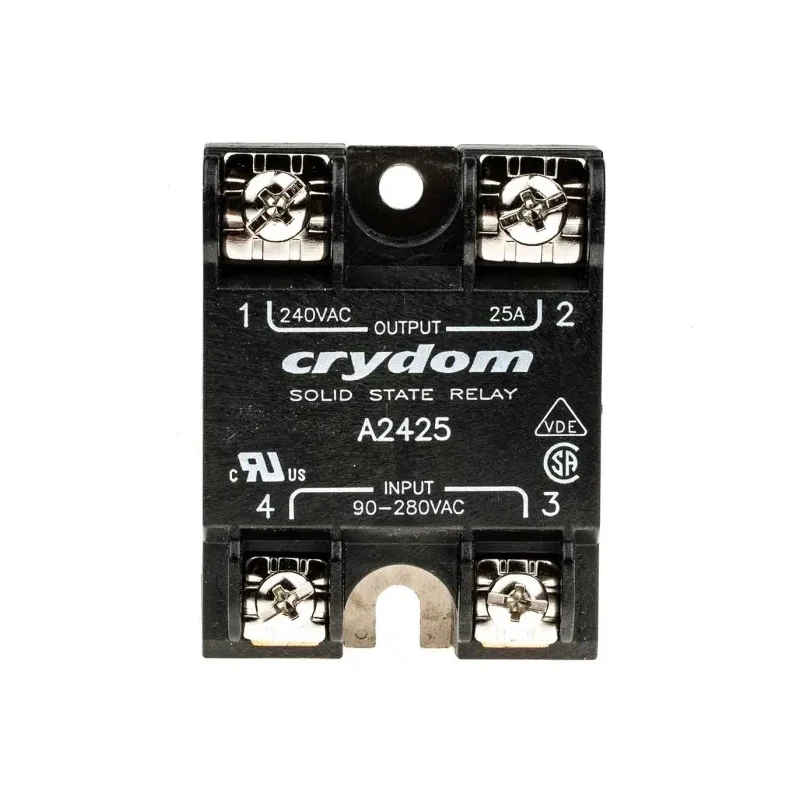

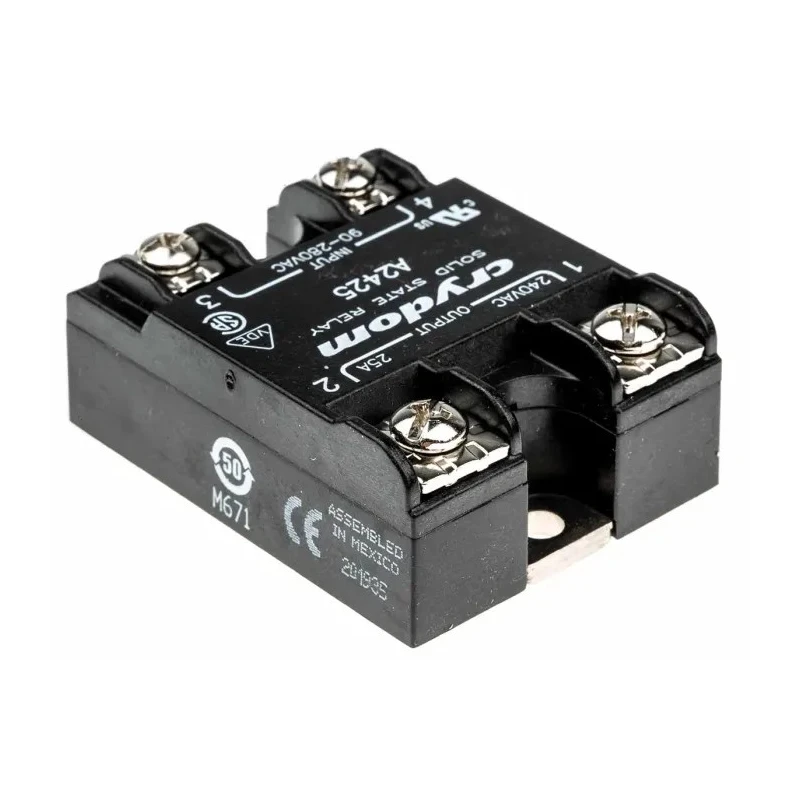

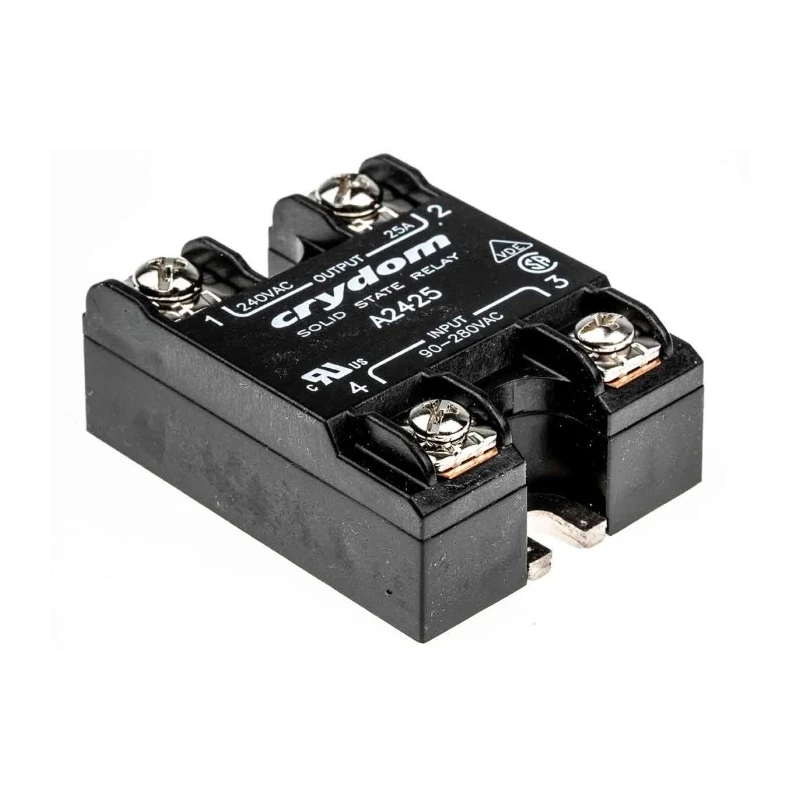

Crydom 1 Series Solid State Relay 25 A Load 280 Vrms Load 280 Vrms Control Panel Mount A2425

Crydom A2425 Solid State Relay 1 Series is engineered for industrial and automation applications requiring robust and reliable power switching. Rated for a maximum load current of 25 A and up to 280 Vrms load voltage, this panel-mount SSR is ideal for managing heavy electrical loads with precise control.

The relay employs zero voltage switching technology, which significantly reduces electrical noise and prolongs device life by engaging the load at zero crossing points of the AC waveform. It features screw terminals that facilitate straightforward and secure wiring connections suitable for complex control systems.

Constructed with a flame-retardant housing and an aluminium baseplate, the relay offers resistance to corrosion and physical impact, assuring longevity and safety in critical environments. Its design supports a wide operating temperature range of -40°C to 80°C enabling its use in demanding industrial settings.

This SSR's capacitance of just 8 pF ensures reliable high-integrity signal transmission, making it advantageous for sensitive control and microcontroller systems. The compact profile (58.4 mm length, 23 mm height, 22 mm width) allows efficient panel space usage, while the IP20 rating confirms appropriate protection against solid objects.

The relay is configured with a single pole single throw (SPST) contact setup and SCR output, perfectly suited for AC load switching applications. Its off-state leakage current is minimal at 1 mArms, contributing to energy efficiency and system stability.

Applications include industrial automation, HVAC systems, manufacturing process control, and general purpose panel-mounted relay requirements. The robust build and precise specifications ensure reliability and performance in electrical control tasks.

The package contains one Crydom 1 Series Solid State Relay model A2425 designed for panel mounting. Browse the Solid State Relay category to explore similar high-quality industrial relays for advanced electrical and automation systems.

Supports a maximum load current of 25 A for heavy-duty applications. Operates with a maximum load voltage of 280 Vrms and minimum load voltage of 24 V. Features a panel mount type with screw terminals for easy installation.

Employs zero voltage switching function to reduce electrical noise and enhance efficiency. Designed to operate in temperatures from -40°C to 80°C ensuring durability in harsh environments. Compact dimensions of 58.4 mm length, 23 mm height, and 22 mm width conserve space in control panels.

Capacitance of 8 pF ensures high integrity signal transmission with minimal interference. IP20 rated housing provides protection suitable for indoor electrical environments. Designed with SPST contact configuration and SCR output type for dependable switching.

Flame-retardant casing enhances safety by limiting flame spread in case of fire.
