Crydom 1 Series Solid State Relay Panel Mount 50A Load 280 Vrms Load 32V Control D2450PG

The Crydom D2450PG 1 Series Solid State Relay is engineered for industrial control applications requiring rugged and reliable switching of AC loads up to 50A at 280 Vrms. This panel mount SSR is ideal for use in automation, lighting, and heating control systems where precise and rapid switching is necessary.

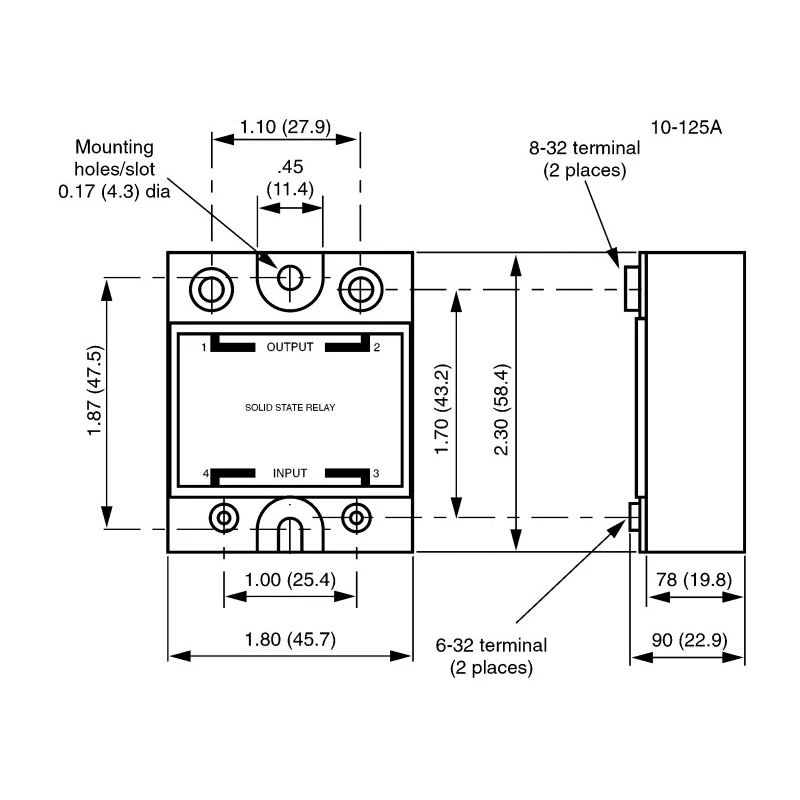

Its construction includes screw terminals that secure the unit firmly onto panels, supported by its compact dimensions of 58.4mm length, 22.6mm width, and 22.9mm height, facilitating integration into various control panels and assemblies. The device offers a wide control voltage range from 3V DC to 32V DC, allowing compatibility with many control sources.

The zero cross switching function remarkably reduces electromagnetic interference by turning the relay on only when the AC load voltage crosses zero volts. This feature improves circuit reliability and minimizes electrical noise that could disrupt sensitive digital equipment.

Designed to operate in harsh environments, with an operating temperature range between -40°C and +80°C, it can be used reliably in industrial and commercial applications subjected to temperature extremes. The device includes an LED input status indicator for easy monitoring of operating conditions.

Its off-state leakage current of 10mA helps maintain energy efficiency when the device is not actively conducting. Certified against CSA, RoHS, and UL standards, the D2450PG ensures compliance with international safety and quality requirements.

The relay is suited for panel mount installations requiring stable, high-current AC load switching. Its SCR output type supports efficient power handling and switching of resistive and inductive loads. Applications include industrial automation, HVAC systems, lighting control, and heating element management.

The durable design ensures long-lasting service in manufacturing, water treatment, and commercial electrical systems.

Choose Crydom solid state relays for trusted performance and compliance in demanding industrial environments. Explore other products in the Solid State Relay category at EnvMart for complementary control solutions.
