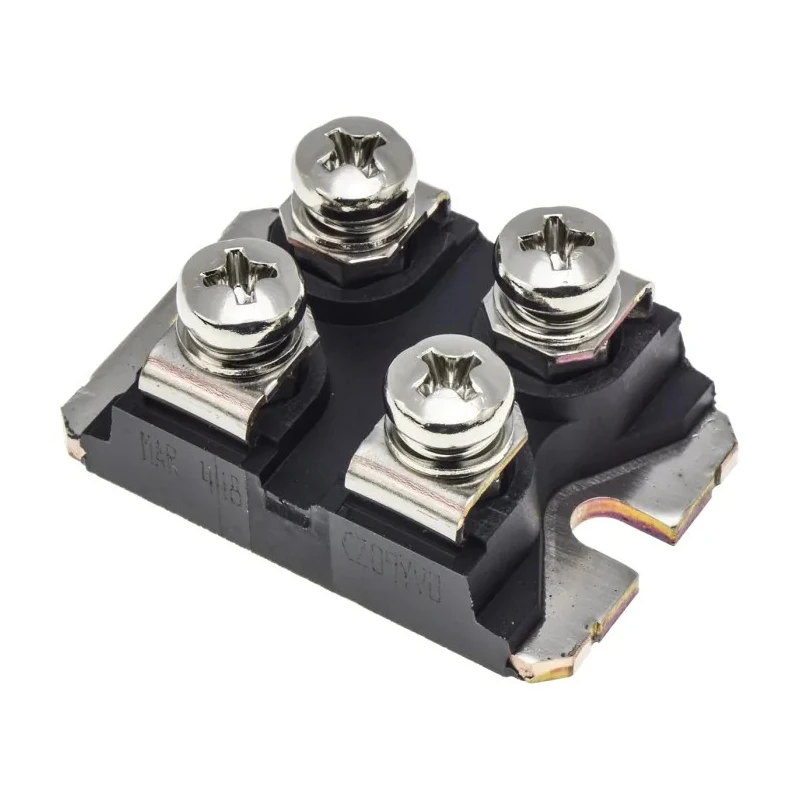

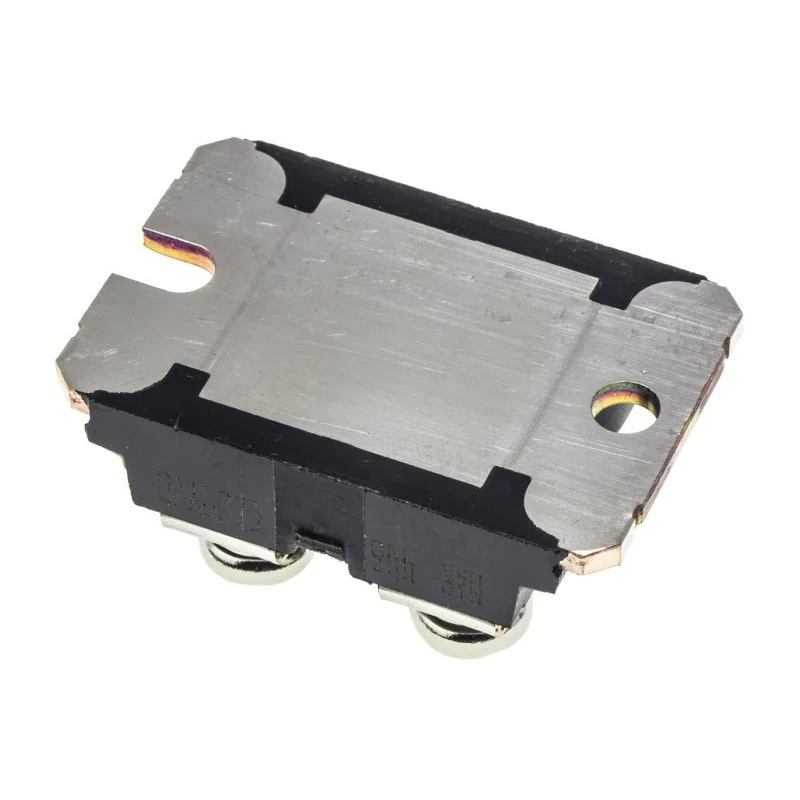

STMicroelectronics 1200 V 120 A Panel Mount Switching Diode 4-Pin ISOTOP STTH12012TV1

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1200 V 120 A Panel Mount Switching Diode 4-Pin ISOTOP STTH12012TV1

Name: STMicroelectronics 1200 V 120 A Panel Mount Switching Diode 4-Pin ISOTOP STTH12012TV1
Brand: STMicroelectronics
SKU: 211842
Price: 39.32 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	4mm
Brand	STMicroelectronics
Height	9.1mm
Length	38.2mm
Model	STTH12012TV1
Width	25.5mm
Mount Type	Panel
Series	STTH12012TV
Maximum Operating Temperature	150°C
Package Type	ISOTOP
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Continuous Forward Current If	120A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Isolated
Rectifier Type	Switching
Peak Reverse Current Ir	30μA
Peak Non-Repetitive Forward Surge Current Ifsm	420A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	125ns

Key Features

This diode features a maximum forward voltage of 1.25 V ensuring efficient switching performance.
It supports high surge currents up to 420 A peak non-repetitive forward surge current.
Operating temperature ranges from -65°C to 150°C for versatility in various industrial environments.
Compact dimensions with 38.2 mm length and 25.5 mm width facilitate easy integration.
RoHS compliant, meeting environmental standards for electronics manufacturing.
Peak reverse recovery time of 125 nanoseconds ensures minimal switching losses.
Isolated diode configuration supports reliable circuit protection and efficiency.
The 4-pin ISOTOP package type is suitable for panel mounting applications.

Product Description

STMicroelectronics STTH12012TV1 is a high-performance switching diode designed for demanding electronic and power applications. With a peak reverse repetitive voltage of 1200 V and continuous forward current of 120 A, this diode offers robust protection and efficient current handling.

The diode's maximum forward voltage of 1.25 V supports effective switching and reduced power loss, making it suitable for power rectification and switching circuits. It operates reliably across a wide temperature range from -65°C to 150°C, adhering to industrial and commercial use requirements.

The 4-pin ISOTOP panel mount package ensures easy installation in power modules and electronic assemblies, while the isolation offers enhanced electrical safety.

The diode also features a peak non-repetitive forward surge current of 420 A and a fast peak reverse recovery time of 125 ns, minimizing switching losses and improving efficiency in rectifier circuits.

Compact size with dimensions 38.2 mm length, 25.5 mm width, 9.1 mm height, and 4 mm diameter enable space-saving designs in power electronics. STMicroelectronics upholds environmental responsibility with RoHS compliance for safer electronics manufacturing.

This switching diode is ideal for use in industrial electronics, power supply designs, renewable energy systems, manufacturing automation, and automotive electronics. This diode features a maximum forward voltage of 1.25 V ensuring efficient switching performance.

It supports high surge currents up to 420 A peak non-repetitive forward surge current. Operating temperature ranges from -65°C to 150°C for versatility in various industrial environments. Compact dimensions with 38.2 mm length and 25.5 mm width facilitate easy integration.

RoHS compliant, meeting environmental standards for electronics manufacturing. Peak reverse recovery time of 125 nanoseconds ensures minimal switching losses. Isolated diode configuration supports reliable circuit protection and efficiency.

The 4-pin ISOTOP package type is suitable for panel mounting applications. Browse EnvMart's range of semiconductor components for further options in diode and rectifier technologies.

Explore more products in our Schottky Diodes & Rectifiers category.
