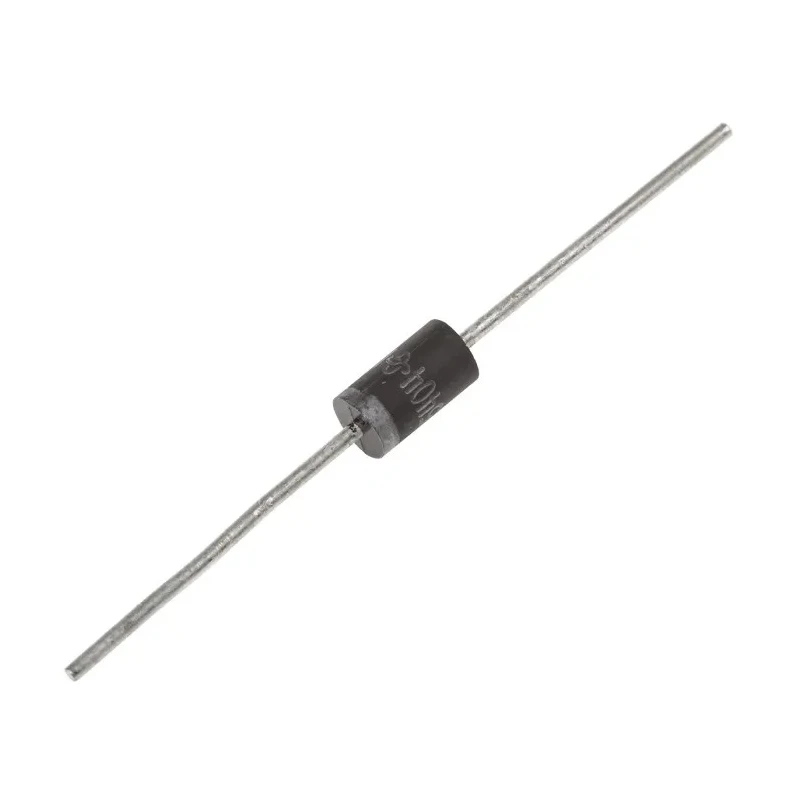

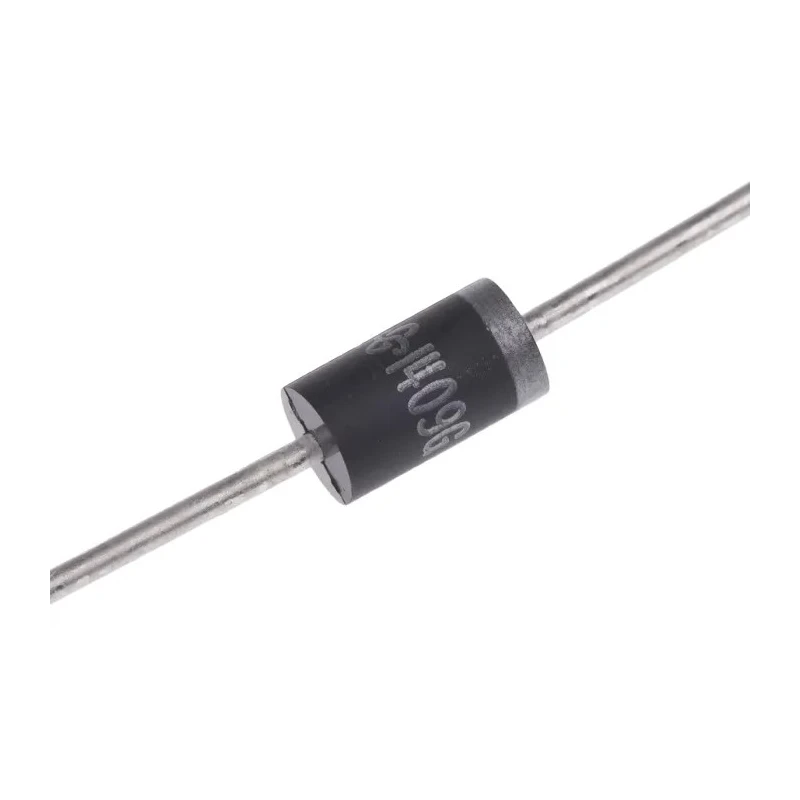

Vishay 400 V 3 A Ultrafast Soft Recovery Diode Through Hole DO-201AD UF5404-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | UF5404-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | UFX |
| Maximum Operating Temperature | 150°C |
| Case | DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode end |
| Terminals | Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Soft Recovery |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 50ns |
| Lite-On 400V 3A, Silicon Junction Diode, 2-Pin DO-201AD UF3004Brand | Lite-On |
Key Features
- Glass passivated chip junction for enhanced reliability.
- Ultrafast reverse recovery time minimizes switching losses.
- Low forward voltage drop increases efficiency.
- High forward surge capability ensures durability under surge currents.
- Matte tin-plated leads ensure solderability per industrial standards.
- Colour band denotes cathode polarity for easy identification.
- Operates in temperature range from -55°C up to 150°C.
- Robust moulding compound meets UL 94 V-0 flammability rating.
Product Description
Vishay UF5404-E3/54 is a 400 V 3 A ultrafast soft recovery diode designed with a single diode configuration and housed in a through hole DO-201AD package. It features a glass passivated chip junction and an ultrafast reverse recovery time of 50 ns, reducing switching losses and improving efficiency in high frequency circuits.
The diode supports a peak forward surge current of 150 A and has a maximum forward voltage drop of 1 V, ensuring high forward conduction efficiency. Its matte tin-plated leads comply with solderability standards J-STD-002 and JESD 22-B102, making it reliable and easy to solder on PCBs. The device is rated for operation in temperatures ranging from -55°C to 150°C, broadening its applicability in harsh environments.
Mechanically, it measures 9.5 mm length, 5.3 mm width, and 5.3 mm height with the moulding compound meeting UL 94 V-0 flammability rating. The colour band marks the cathode terminal for polarity identification. This diode is RoHS compliant with E3 suffix meeting whisker test JESD 201 class 1A.
Applications include high frequency rectification and freewheeling in switching mode converters, inverters for consumer electronics, computer systems, and telecommunications equipment. The combination of low forward voltage drop, ultrafast recovery time, and high surge capability makes it suitable for improving efficiency and reliability in power circuits.
Glass passivated chip junction providing durability. Ultrafast reverse recovery time reduces switching losses significantly. Low forward voltage drop enhances conduction efficiency. High forward surge current for reliable transient performance.
Matte tin-plated leads ensure superior solderability. Colour band for easy cathode polarity identification. Wide operating temperature range of -55°C to 150°C. Compliant with UL 94 V-0 flammability standard for safety. Suitable for high frequency rectification and freewheeling circuits.
This diode is an ideal choice for industrial, consumer electronics, telecommunications, and computer power supply applications. Browse Vishay products and Schottky Diodes & Rectifiers at EnvMart for comprehensive semiconductor solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating of this diode is 400 V.
The peak forward surge current for this model is 150 A.
The maximum continuous forward current for this diode is 3 A.
This diode measures 9.5 mm in length, 5.3 mm in width, and 5.3 mm in height.
The diode operates within a temperature range of -55°C to 150°C.
It comes in a DO-201AD package type.
The reverse recovery time of this diode is 50 ns.
The cathode polarity is identified by a colour band that denotes the cathode end.
The maximum forward voltage drop for this diode is 1 V.
The matte tin-plated leads comply with solderability standards J-STD-002 and JESD 22-B102.
This diode is suitable for high frequency rectification and freewheeling in switching mode converters, inverters, and telecommunications equipment.
The moulding compound meets the UL 94 V-0 flammability rating.
