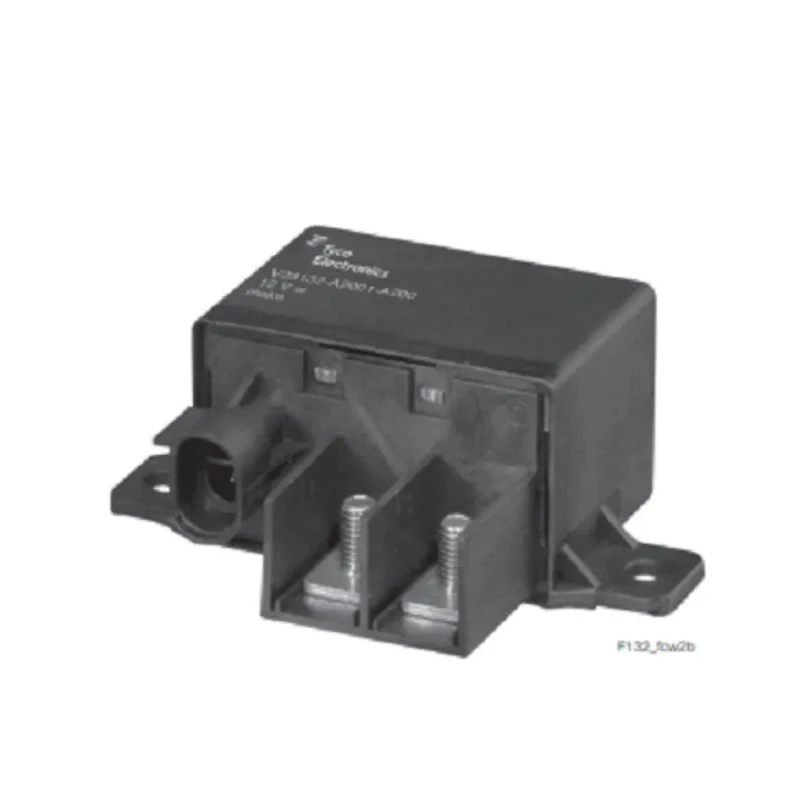

TE Connectivity Automotive Relay 12V DC Coil Voltage 20A Switching Current SPST 1416010-1

TE Connectivity 1416010-1 Automotive Relay is engineered for high reliability in automotive systems requiring a 12V DC coil voltage and 20A switching current. Its SPST contact configuration makes it suitable for engine control, glow plug circuits, heated front screens, and preheating systems, including diesel engines and catalytic converters. The relay's quick connect terminal type supports fast and secure installation in varied electrical setups.

With a coil power of 3.9W and coil resistance of 37 ohms, this relay ensures stable coil operation. It reliably functions within a temperature range of -40°C to 125°C, making it resilient against extreme conditions commonly encountered in automotive and industrial environments. The compact size (74.2mm length, 45mm height, and 40mm depth) allows for flexible integration into constrained spaces.

The contacts are made from silver alloy, providing low contact resistance and excellent conductivity, supporting continuous current up to 130A at 85°C and switching currents up to 300A. This rugged design offers resistance to heat, moisture, and vibration, enhancing durability and operational life. It is suitable for voltage levels up to 24V DC and is available in dustproof and sealed versions for added protection.

This relay is a reliable component for automotive and industrial applications such as engine control systems, start/stop functions, and switching for loading ramps. It supports high current loads and offers safe and efficient circuit control in demanding conditions.

Manufactured in Portugal, this product complies with industry standards ensuring dependable performance. The TE Connectivity 1416010-1 Automotive Relay is an essential component for applications requiring robust switching capabilities in harsh environments.

This Automotive Relay has a coil power rating of 3.9W for efficient operation. The coil resistance is 37Ω ensuring consistent electrical performance. Contact configuration is single pole single throw (SPST) suitable for various automotive control circuits.

Equipped with quick connect terminals for secure and easy wiring. Operates reliably in temperatures ranging from -40°C to 125°C, supporting harsh environments. Compact dimensions: Length 74.2mm, Height 45mm, Depth 40mm for space-efficient installation.

The contact material is silver alloy, enhancing conductivity and durability. Designed to withstand heat, moisture, and vibration, ideal for automotive and industrial use. Suitable for use up to 24V DC voltage with high current switching capability up to 300A.

Originates from Portugal, ensuring quality manufacturing standards. Explore more automotive and industrial relays on EnvMart for reliable electrical components built to meet rigorous operational requirements.
