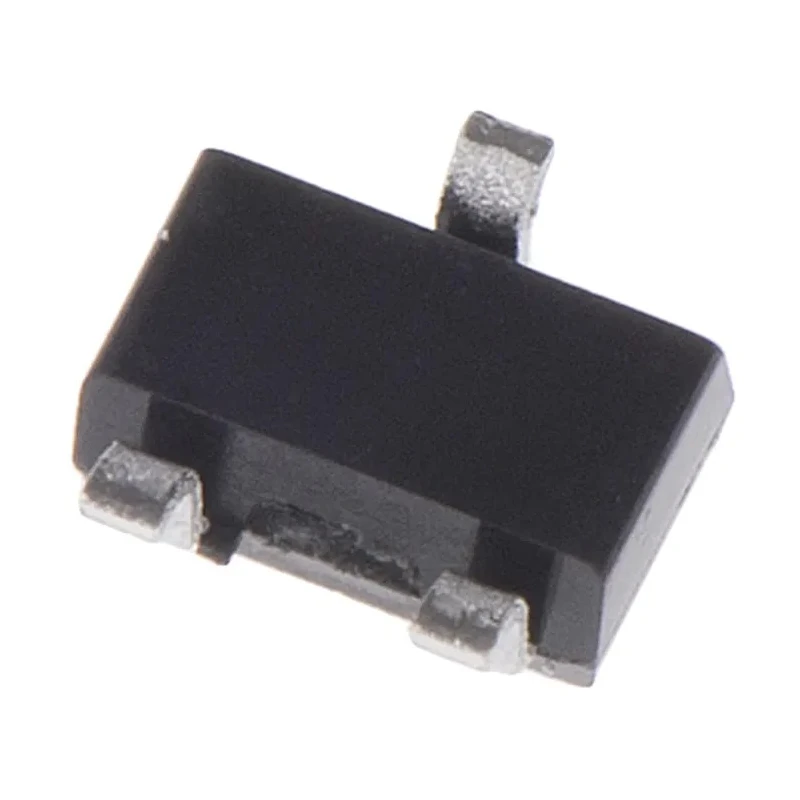

Nexperia 100 V 150 mA General Purpose 3-Pin Surface Mount SC-70 Diode BAV99W,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 100 V 150 mA General Purpose 3-Pin Surface Mount SC-70 Diode BAV99W,115

Name: Nexperia 100 V 150 mA General Purpose 3-Pin Surface Mount SC-70 Diode BAV99W,115
Brand: Nexperia
SKU: 196873
Price: 0.09 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.2mm
Model	BAV99W,115
Width	1.35mm
Mount Type	Surface
Series	BAV99
Maximum Operating Temperature	150°C
Package Type	SC-70
Minimum Operating Temperature	-65°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	150mA
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Series
Rectifier Type	General Purpose
Peak Reverse Current Ir	500nA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
onsemi 70 V 715 mA Diode General Purpose 3-Pin SC-70 BAV99WT1GBrand	onsemi
NXP 100V 150mA, Dual Silicon Junction Diode, 3-Pin SC-70 BAV99W,115Brand	NXP

Key Features

Maximum continuous forward current rating of 150 mA.
Peak reverse repetitive voltage up to 100 V ensures safe operation.
Extremely fast switching speed with peak reverse recovery time of 4 ns.
Low leakage current and low forward voltage drop of 1.25 V max.
Designed for automotive applications meeting AEC-Q101 standard.
Compact 3-pin SC-70 package measuring 2.2 mm length and 1.35 mm width.
Wide operating temperature range from -65°C to 150°C for diverse environments.
Peak non-repetitive forward surge current rating of 4 A for transient tolerance.

Product Description

The Nexperia BAV99W,115 is a high-performance general purpose diode designed for fast switching and reliable operation in demanding electronic circuits. Packaged in a compact 3-pin SC-70 surface mount form factor, this diode delivers up to 150 mA of continuous forward current and withstands reverse voltages up to 100 V, making it ideal for various semiconductor applications.

Featuring a peak reverse recovery time of only 4 nanoseconds, the BAV99W,115 supports high-speed switching operations, minimizing switching losses and improving circuit efficiency. Its low leakage current and maximum forward voltage of 1.25 V provide energy-efficient performance, suitable for power management roles.

Rated for peak non-repetitive forward surge currents up to 4 A, the diode tolerates transient overloads ensuring durability and robustness. The device operates reliably across a broad temperature range from -65°C to 150°C, supporting automotive and industrial applications, enhanced by compliance with AEC-Q101 qualification.

The compact SC-70 plastic package measures just 2.2 mm in length, 1.35 mm in width, and 1 mm in height, offering space-saving advantages for densely packed circuitry. Its 3-pin configuration supports easy surface mounting, optimizing assembly efficiency and mechanical reliability.

Maximum continuous forward current: 150 mA. Peak reverse repetitive voltage: 100 V. Low peak reverse recovery time of 4 ns. Forward voltage max 1.25 V at rated current. AEC-Q101 Automotive qualified for automotive electronics.

Compact SC-70 surface mount package. Wide operating temperature from -65°C to 150°C. Peak surge current rating of 4 A for transient events. Low leakage current and capacitance for efficient switching.

This diode is widely used in electronic design for switching regulators, signal processing, and reverse polarity protection in automotive, industrial, and consumer electronics sectors. Its high switching speed and reliability make it a preferred choice for sensitive and high-frequency circuits.
