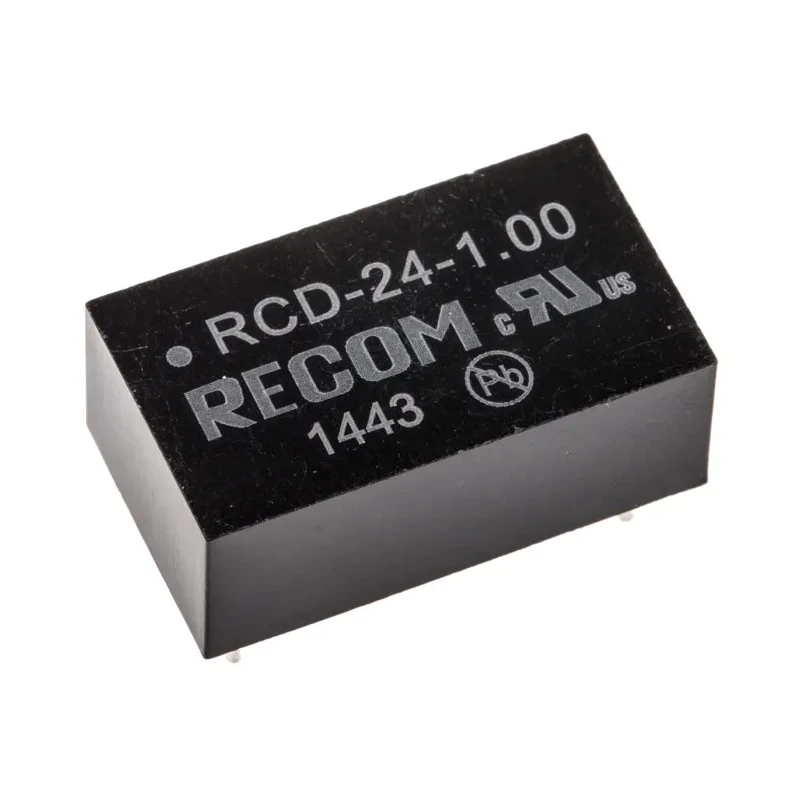

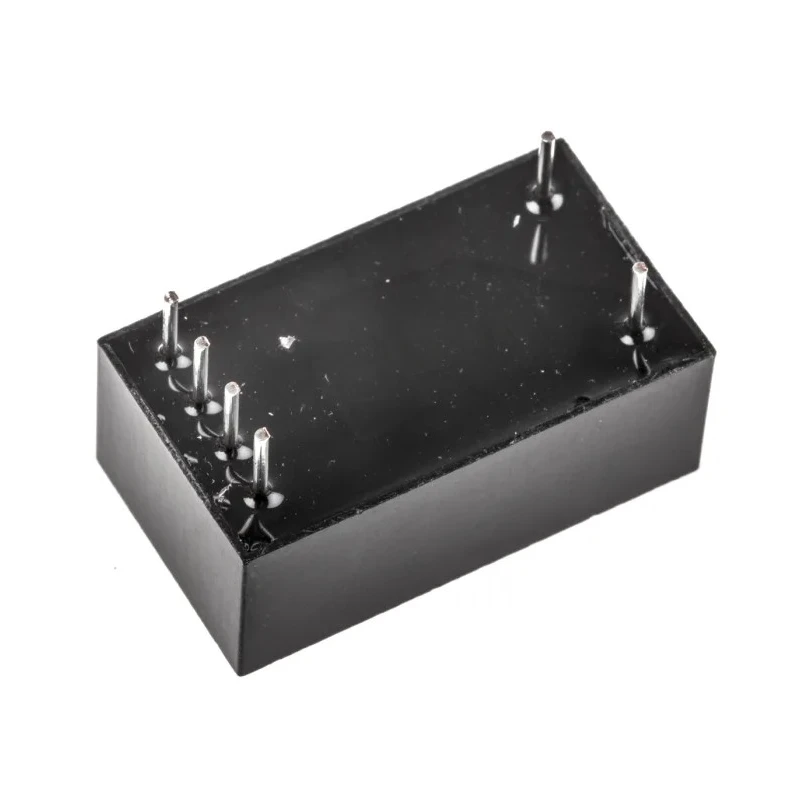

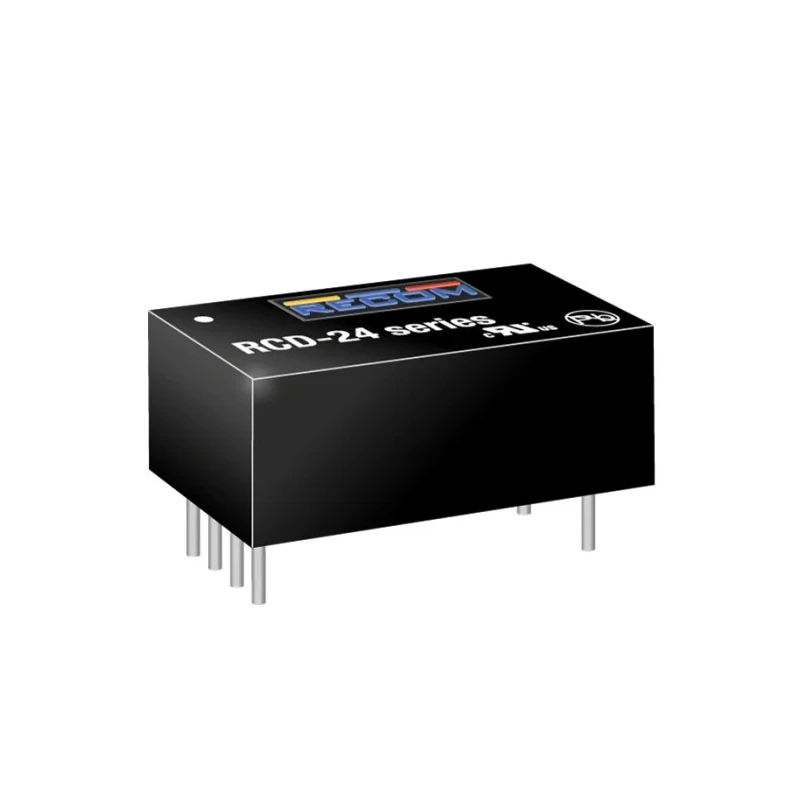

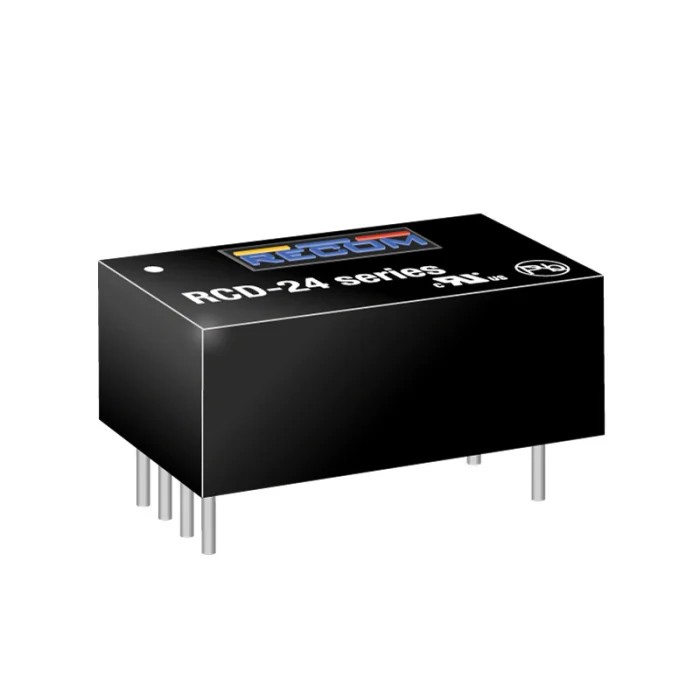

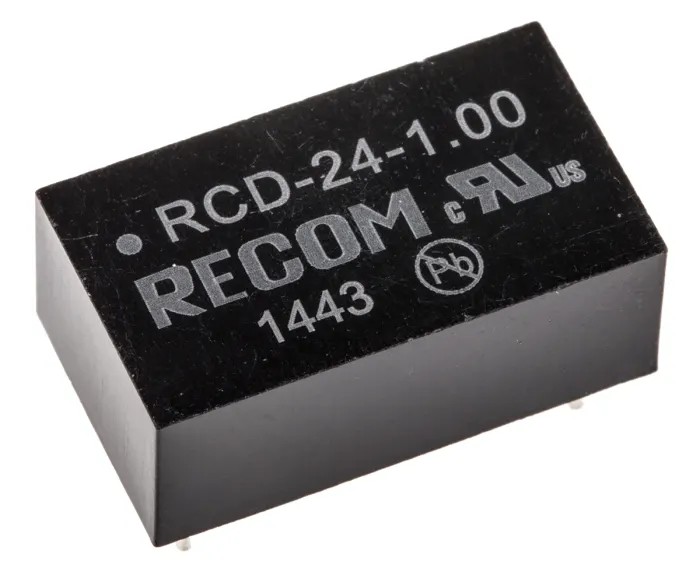

Recom IP67 1 Output PWM Constant Current LED Driver 3V DC to 31V DC, 31W, 1A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Series | RCD-24 |
| Configuration | Enclosed |
| Sub Type | Constant Current LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Maximum Output Power | 31W |
| Input Voltage | 36V dc |
| Output Voltage | 3, 31V dc |
| Power Dissipation | 800mW |
| Standards/Approvals | EN55022 Class B, EN61000-4-4 Class A, EN61000-4-3 Class A, UL-60950-1, EN61373, EN-60950-1, EN61000-4-2 Class A, CSA C22.2 No 60950-1-03, RoHS 2011/65/EU, EN-50121-3-2, EN61000-4-6 Class A |
| Dimming Operation | PWM |
| Primary Type | DC-DC |
| Recom IP67 1 Output LED Driver, 3V dc, 31 V dc, 31 W, 1A PWM LED DriverBrand | Recom |
| Recom IP67 1 Output LED Driver, 33V, 1200mA, 300 mA PWMBrand | Recom |
Key Features
- Operates from a 36V DC input voltage.
- Delivers regulated output voltage from 3V to 31V DC with 31W maximum power.
- IP67 rated for dust and water ingress protection.
- PWM dimming for brightness adjustment.
- Compact PCB mount with black plastic housing for insulation.
- Short circuit protection at rated output current.
- Weighs only 4.5 grams, reducing mechanical strain.
- Meets multiple international industry standards.
Product Description
Recom RCD-24-1.00 is a high-efficiency PWM constant current LED driver designed to power a wide range of LED lighting applications. It accepts DC input voltage up to 36V and provides a regulated output voltage from 3V to 31V DC with a maximum power output of 31W and current of 1A. This driver operates using PWM dimming, allowing precise brightness control.

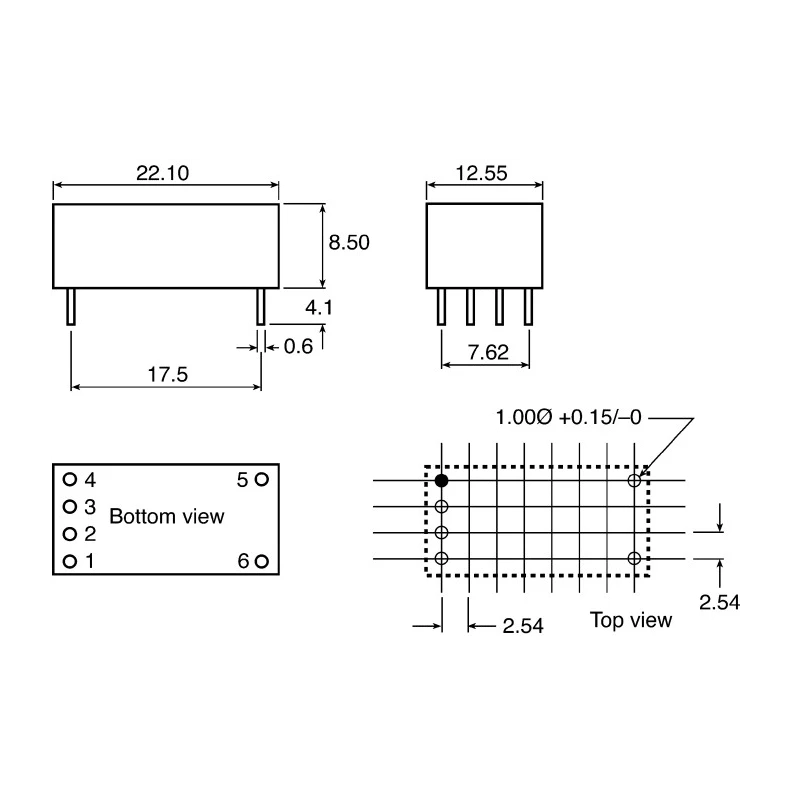

The product features an IP67 rating ensuring protection against dust and immersion, making it highly reliable for outdoor and harsh environment use. Its compact form factor with dimensions 22.1mm (L) x 12.6mm (W) x 8.5mm (H) and lightweight design at just 4.5g allow easy integration into tight spaces with minimal mechanical load.
Built with a black plastic housing, it ensures superior current insulation and electrical safety. Additional protection includes short circuit protection at rated output current, supporting long-term durability and user safety.
Operating over a wide temperature range of -40°C to +71°C, this LED driver performs well under challenging ambient conditions.
Compliance with industry standards such as EN55022 Class B, EN61000 immunity standards, UL-60950-1, CSA C22.2 No 60950-1-03, and RoHS 2011/65/EU confirms its robustness and regulatory approval for various markets.
This LED driver is ideally suited for outdoor lighting systems, hospitality venue lighting, warehouse illumination, and other commercial applications where reliable, dimmable LED power is essential.
Operates from a 36V DC input voltage. Delivers regulated output voltage from 3V to 31V DC with 31W maximum power. IP67 rated for dust and water ingress protection. PWM dimming for brightness adjustment. Compact PCB mount with black plastic housing for insulation.
Short circuit protection at rated output current. Wide temperature range: -40°C to +71°C. Weighs only 4.5 grams, reducing mechanical strain. Meets multiple international industry standards. Ideal for outdoor, commercial, and hospitality lighting systems.
Explore our Recom LED Driver range for engineered solutions to your lighting power management needs.
Explore more products in our LED Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 31W.
It operates with a DC input voltage of up to 36V.
The output voltage range is from 3V to 31V DC.
This driver uses PWM (Pulse Width Modulation) dimming for brightness adjustment.
It has an IP67 rating, providing protection against dust and water ingress.
The dimensions are 22.1mm (L) x 12.6mm (W) x 8.5mm (H).
This LED driver weighs only 4.5 grams.
It operates over a wide temperature range of -40°C to +71°C.
It is designed for PCB mounting.
It includes short circuit protection at the rated output current.
It meets multiple standards including EN55022 Class B, UL-60950-1, and RoHS 2011/65/EU.
It is suitable for outdoor lighting systems, hospitality venue lighting, and warehouse illumination.
