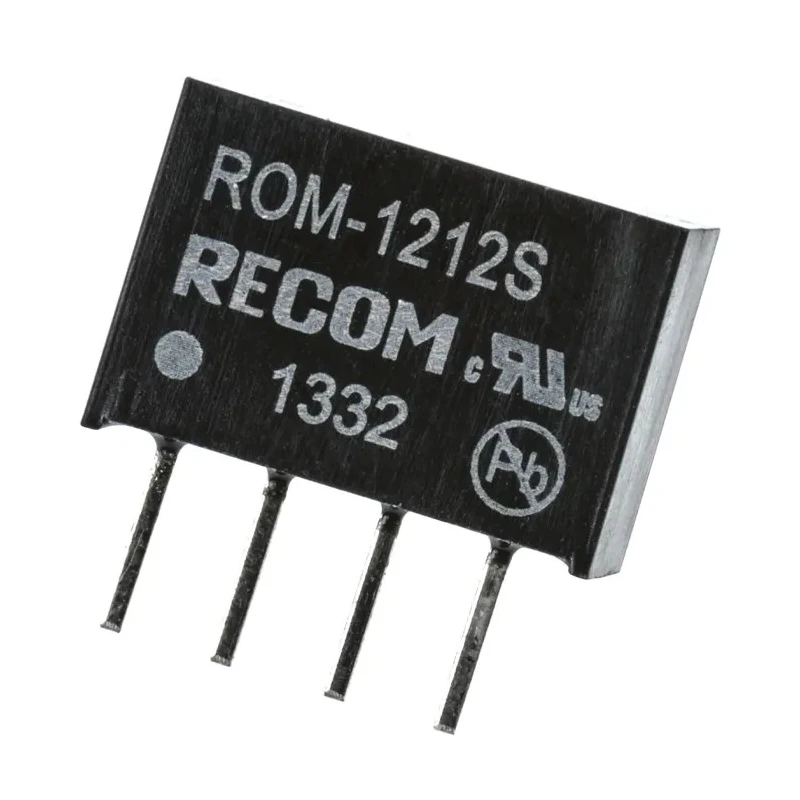

Recom 1W SIP Micro Through Hole DC/DC Converter 12V DC Output 83mA, 12V DC Input ROM-1212S

Recom ROM-1212S is a high reliability, 1 watt DC/DC converter designed for industrial and electronic applications needing isolated voltage conversion in a compact SIP4 through hole package. It delivers 12V dc output voltage with maximum 83mA output current from an input range of 10.8V to 12V dc.

This micro SIP module features 3kV dc electrical isolation ensuring safety and robust transient protection in demanding environments. The operating temperature range of -40°C to 85°C allows stable functionality across diverse industrial conditions without derating.

The converter boasts up to 82% efficiency at full load minimizing energy wasted as heat and improving overall system efficiency. The UL 94V-0 rated package material provides excellent flammability resistance for enhanced safety compliance. The industry standard pinout layout allows easy integration or replacement in existing PCB designs.

The ROM series is well-suited for powering industrial control systems, measurement devices, telecommunications, and other embedded electronic systems requiring reliable isolated supply voltage at low power levels.

Key technical features include a 3kV dc isolation voltage, 11.5mm length, 7.7mm depth, and a robust MTBF of 977000 hours which ensures extended operational lifetime in continuous use applications.

The micro SIP4 package enables compact PCB design. Supports input voltage range from 10.8V to 12V dc. Ensures 3kV dc isolation voltage for device protection. Operating temperature range from -40°C to 85°C for reliable use.

Efficiency of up to 82% helps reduce energy losses. Through hole mount type offers sturdy mechanical installation. Mean time between failure (MTBF) is 977000 hours ensuring robust reliability. Package material conforms to UL 94V-0 flammability standard.

Industry standard pinout simplifies replacement and maintenance. Ideal for industrial and electronic equipment requiring stable isolated DC voltage.

This product is manufactured in Taiwan, Province Of China following industry standards EN60950-1 and EN60601-1. It supports improved production efficiency by being supplied in a tube format suitable for automated assembly.
