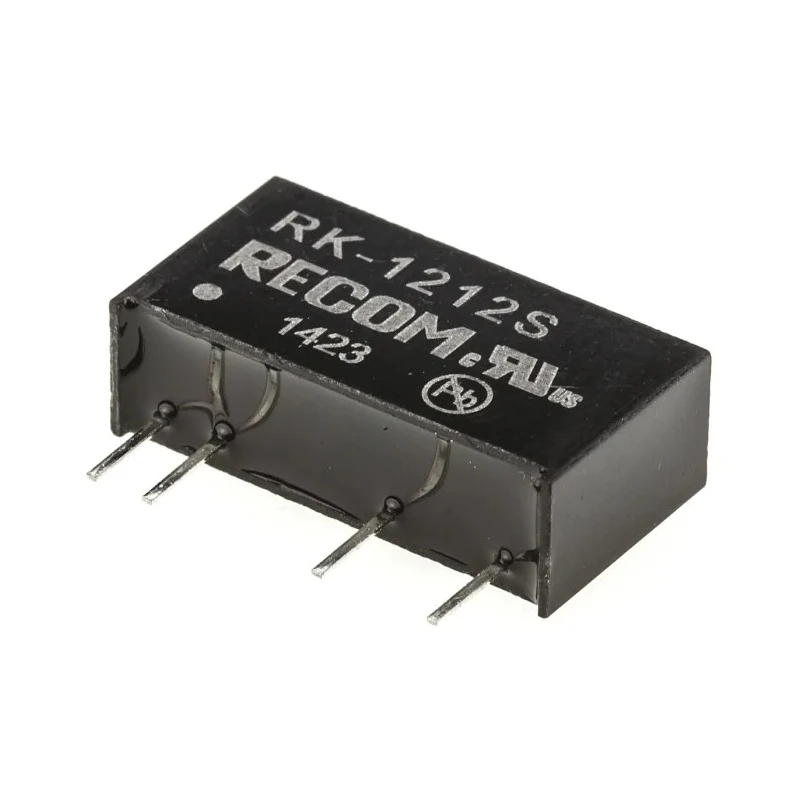

Recom 1W SIP Single Output Unregulated Isolated DC/DC Converter 12V DC Output, 84mA Output Current, 12V DC Max Input RK-1212S

Recom RK-1212S is an unregulated isolated DC/DC converter delivering 1 watt of power with a 12V DC single output and a maximum output current of 84mA. Designed in a compact SIP7 through-hole package, it is ideal for industrial electronics, instrumentation, and power supply isolation where high efficiency and reliability are required.

This converter supports an input voltage range from 10.8V to 12V DC and maintains operation across a broad temperature range from -40°C to 85°C without derating. With a robust 3kV DC isolation, it ensures protection between input and output circuits, making it suitable for sensitive applications requiring electrical noise isolation.

The housing complies with UL94V-0 standards for flammability, providing added safety. It achieves an efficiency of approximately 82% which helps in reducing power loss and thermal management challenges.

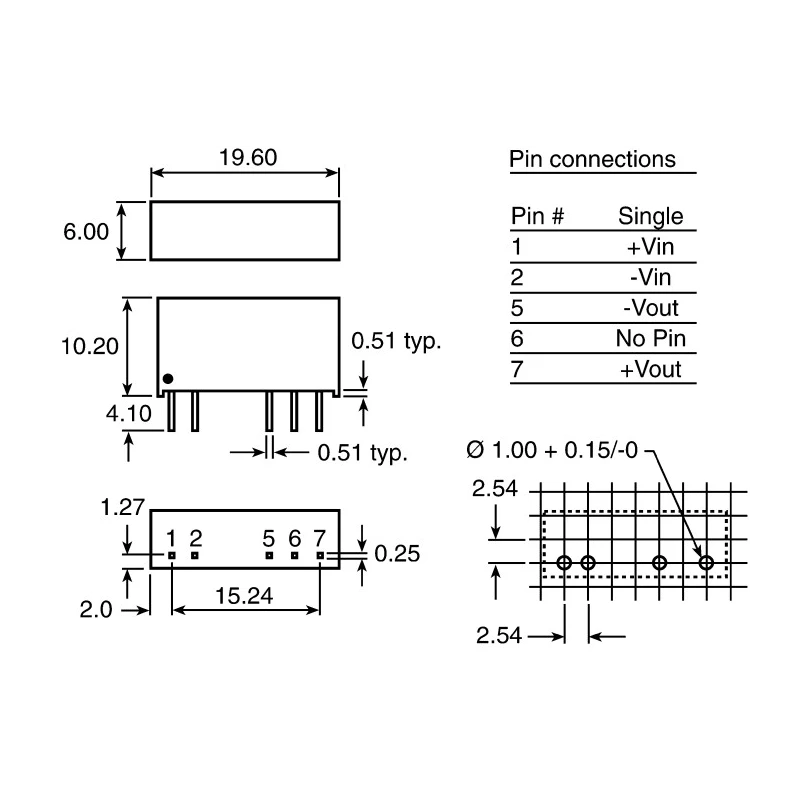

The unit features 4 pins for through-hole mounting, making it easy to install on printed circuit boards. Its compact dimensions (19.6mm x 10.2mm x 10.2mm) and lightweight design (2.6g) enhance integration possibilities in constrained spaces.

The Recom RK series is known for industry standard pin outs and reliable performance, suitable for use in telecommunications, industrial controls, instrumentation, and other electronic equipment. The 1W power rating supports low power DC applications with electrical isolation requirements.

Provides 12V DC output voltage with 84mA output current capacity. Accommodates input voltage range from 10.8V to 12V DC for stable operation. Constructed with a SIP7 package and through-hole mount type for easy PCB integration.

Offers 3kV DC isolation voltage ensuring electrical safety and signal integrity. Operates reliably within temperature range of -40°C to 85°C. Utilizes UL94V-0 rated housing material and meets UR and RoHS compliance standards.

High efficiency of 82% improves power management and reduces heat output. Measures 19.6mm length, 10.2mm width, and 10.2mm depth with a weight of only 2.6g.

This DC/DC converter is essential for applications such as isolated power supplies in industrial automation, data acquisition systems, medical devices, and instrumentation where precision and safety are critical. Its compact form factor and standard pin configuration facilitate easy replacement or integration into existing designs.
