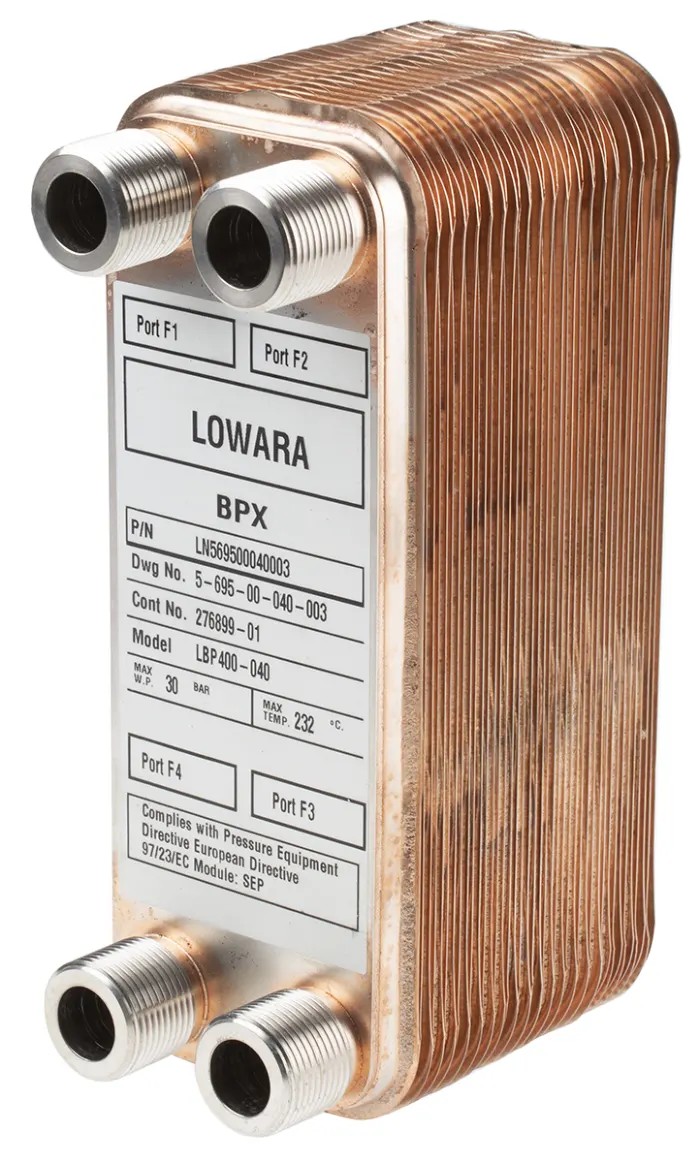

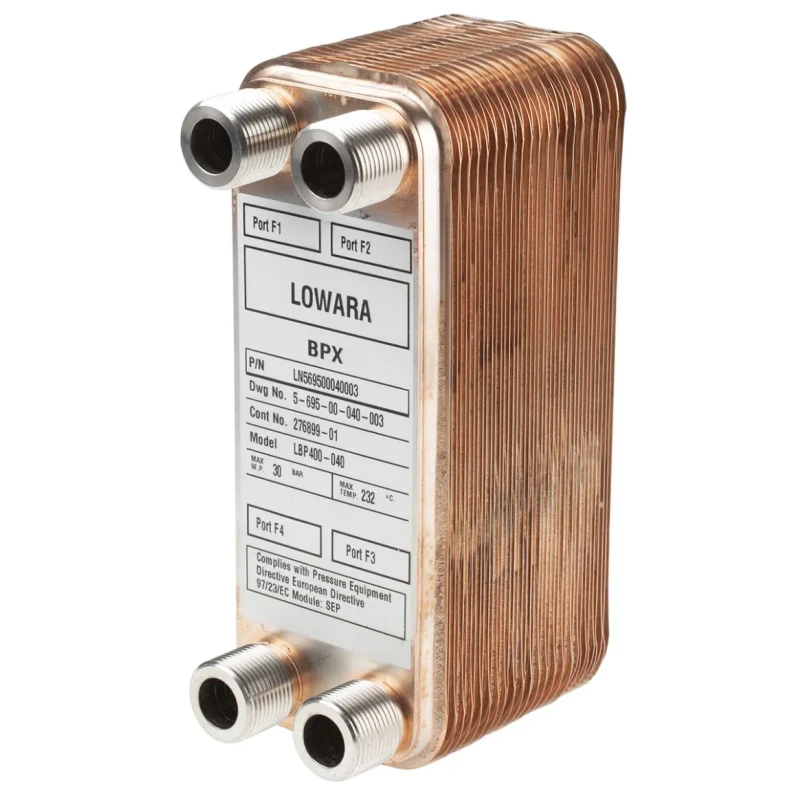

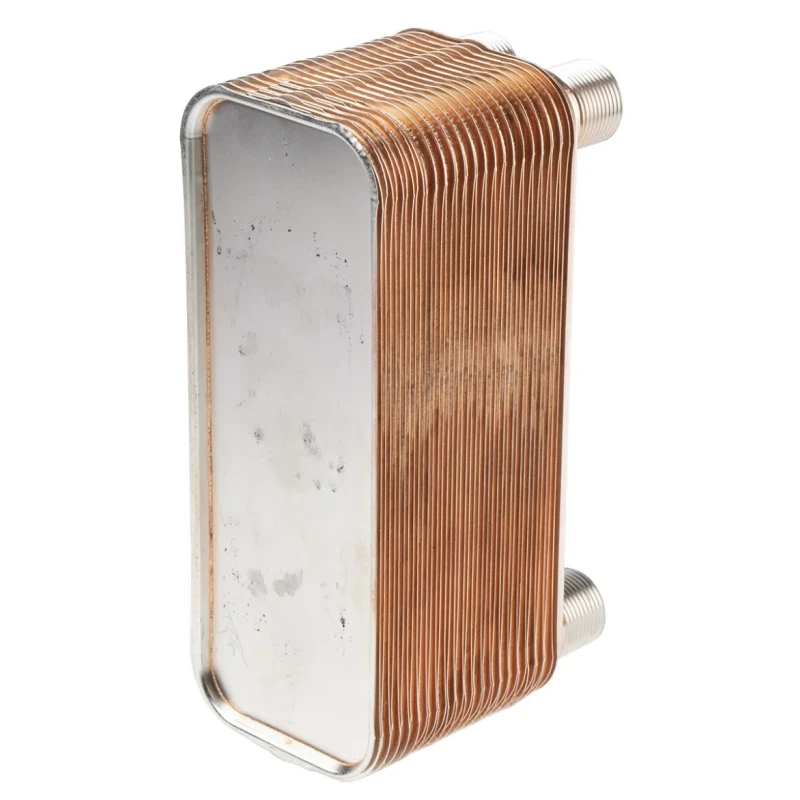

Xylem Brazed Plate Heat Exchanger with 40 Cooling Elements, Copper Radiator, 214.5 mm Height, 80.7 mm Width LN569500040003

Xylem LN569500040003 Brazed Plate Heat Exchanger features 40 cooling elements constructed from copper radiator material with a silver finish, providing exceptional durability and thermal efficiency.

This brazed plate heat exchanger is designed for use in residential and light commercial hydronic heating and cooling systems. It offers compact dimensions with a height of 214.5 mm, width of 80.7 mm, and depth of 24.1 mm, making it suitable for installations where space savings are critical.

The exchanger utilizes stainless steel 316L plates brazed with copper, ensuring excellent corrosion resistance and longevity. It operates efficiently within a wide temperature range from -190°C minimum to 232°C maximum, tolerating pressures up to 30 bar.

This product has been approved according to the European Pressure Equipment Directive (PED 97-23-EC), ensuring compliance with industry safety standards. Its corrugated plate design enhances heat transfer performance and fluid turbulence, improving overall system efficiency.

Applications include radiant floor heating, domestic hot water preparation, pool heating, solar thermal systems, district heating, HVAC systems, and commercial boiler installations. The heat exchanger supports flow rates up to 50.40 l/sec with a surface area of 32.52 m², optimizing heat exchange capacity.

Features 40 cooling elements for effective heat transfer. Constructed with copper radiator material and silver finish for durability. Operates safely within a wide temperature range from -190°C to 232°C. Compact dimensions suitable for tight installation spaces.

Approved according to PED 97-23-EC for pressure equipment compliance. Designed to withstand pressures up to 30 bar. Ideal for residential and light commercial hydronic systems. Corrosion-resistant stainless steel 316L plates with copper brazing.

Applications include HVAC, solar heating, and district heating. Manufactured in the United States to high-quality standards. Explore more high-performance Heat Exchangers suitable for industrial, commercial, and HVAC applications in the EnvMart catalog.
