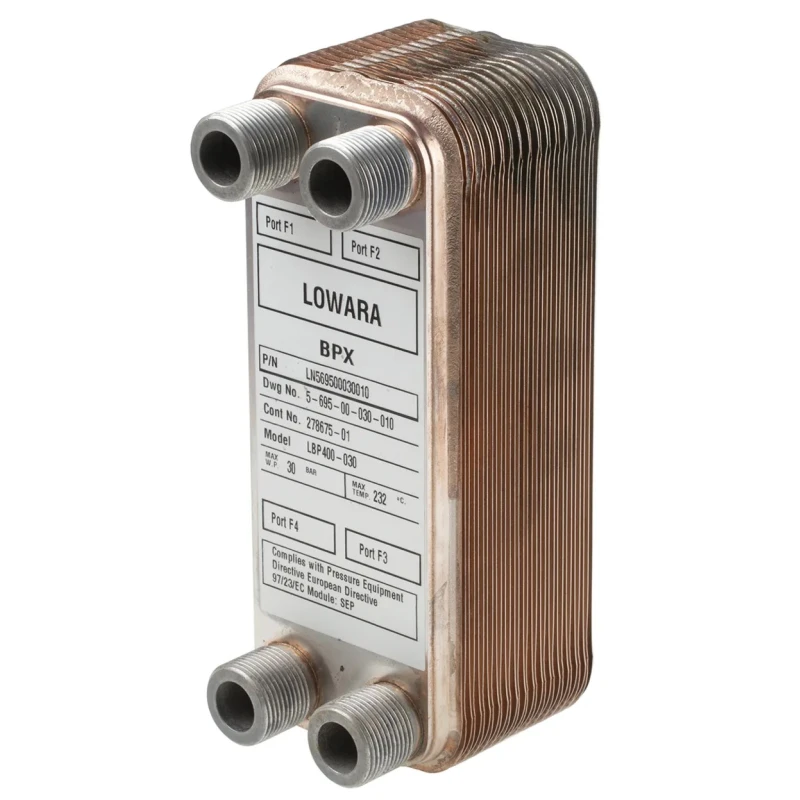

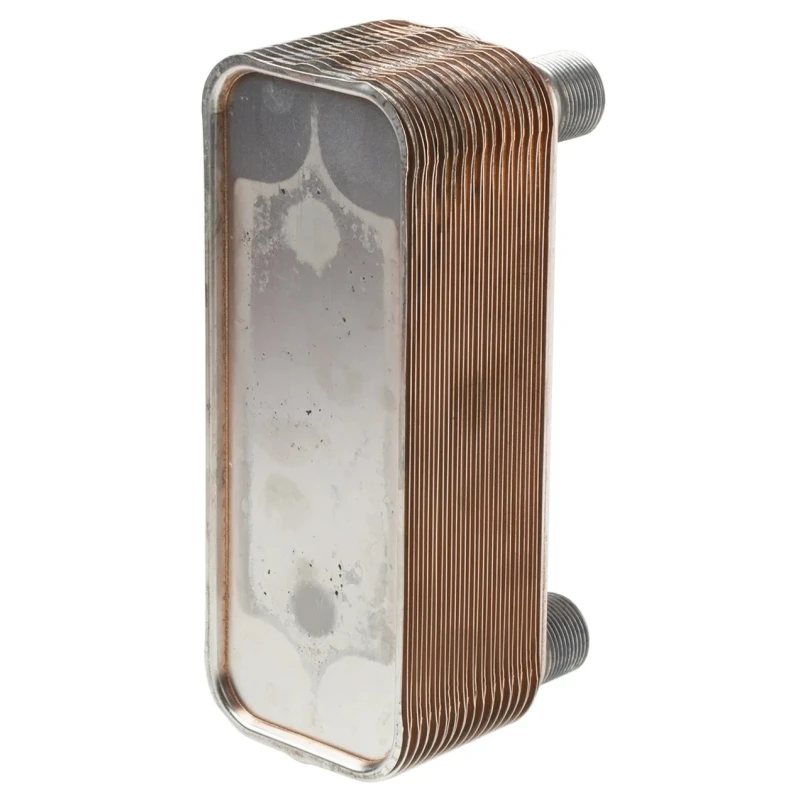

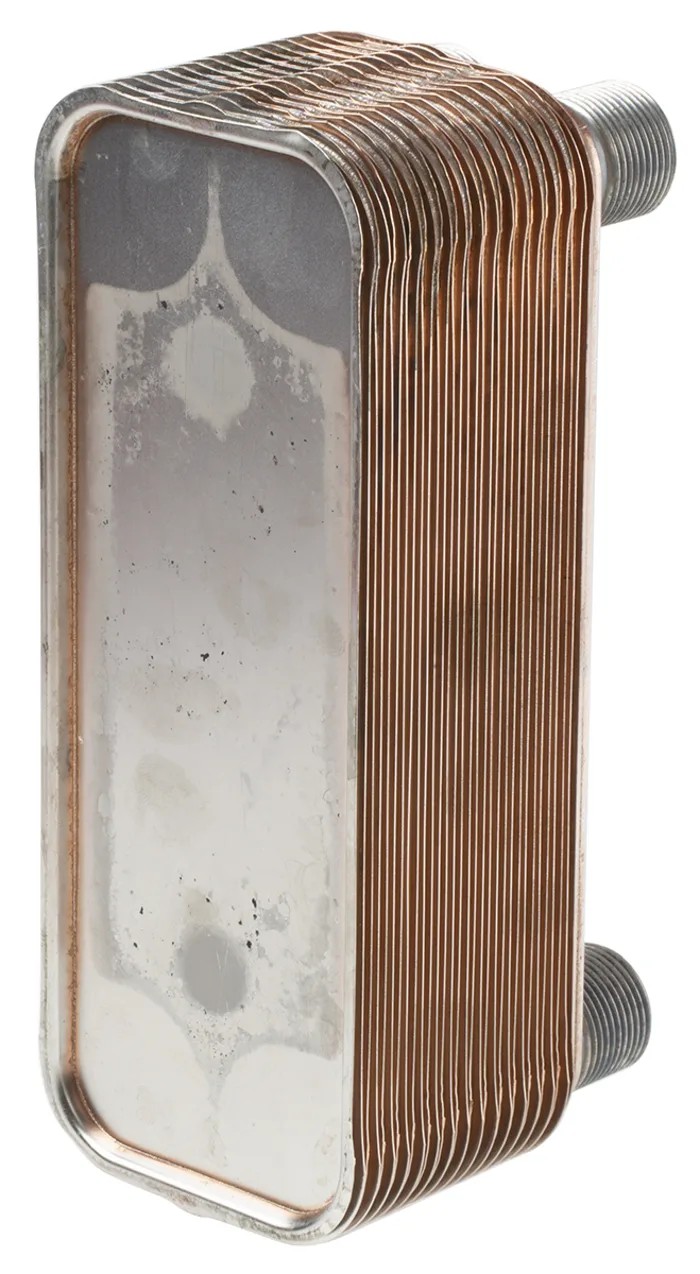

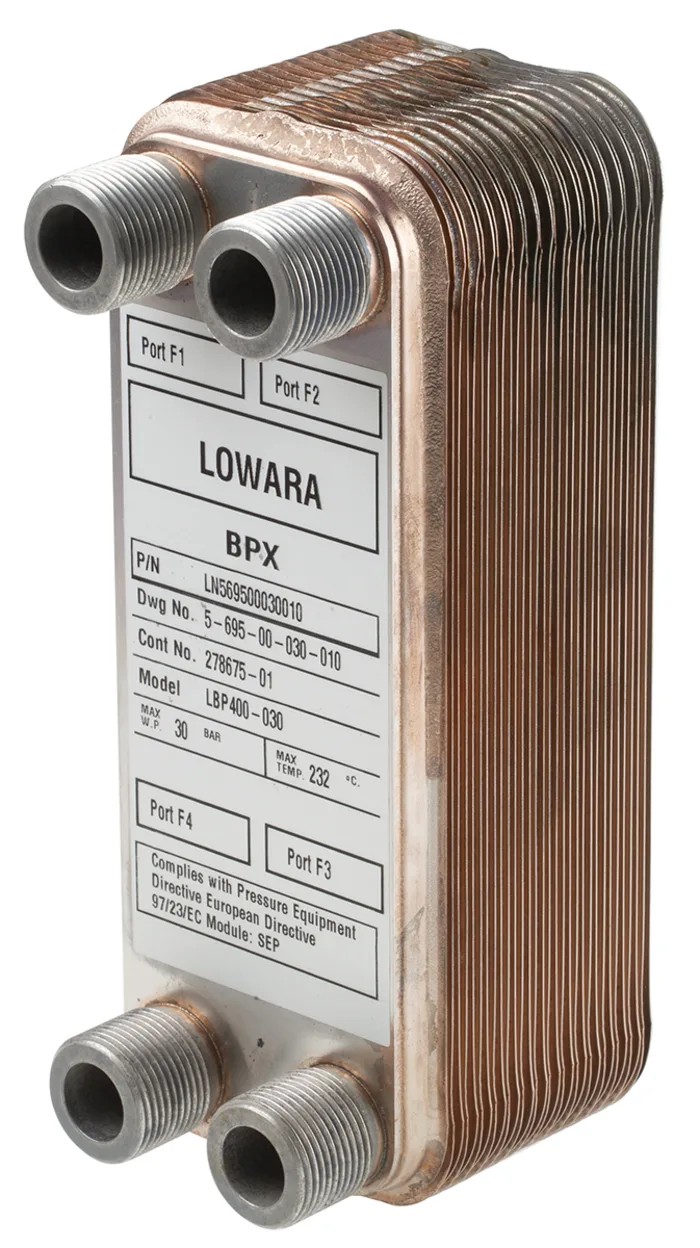

Xylem Liquid Heat Exchanger Copper Brazed Plate, 30 Cooling Elements, 214.5 mm Height, 80.7 mm Width, 24.1 mm LN569500030010

Xylem LN569500030010 liquid heat exchanger is a highly efficient brazed plate heat exchanger designed for residential and light commercial hydronic heating systems. Featuring 30 copper-constructed cooling elements brazed with 316L stainless steel tube connectors, this compact unit delivers superior thermal performance while maintaining durability and corrosion resistance.

Measuring 214.5 mm in height, 80.7 mm in width, and 24.1 mm in depth, the exchanger’s compact design allows easy integration into various HVAC and thermal management applications. The heat exchanger is primed and epoxy coated to ensure long service life even under harsh operating environments.

Capable of operating in a wide temperature range from -190°C to 232°C and supporting pressures up to 30 bar, it meets stringent PED 97-23-EC pressure equipment directives, ensuring reliable and safe use in critical systems. Its corrugated plate design maximizes heat exchange area providing excellent heat transfer efficiency.

Common applications include radiant floor heating, domestic hot water systems, pool heating, solar thermal heating, district heating, and domestic or commercial boilers. The robust materials and advanced design ensure the exchanger withstands demanding operating conditions while delivering optimum performance.

The heat exchanger's 30 cooling elements provide an extensive surface area for heat transfer. Copper plates brazed with stainless steel connectors enhance durability and corrosion resistance. Compact dimensions facilitate installation in tight mechanical rooms and engineered systems.

Primed and epoxy coated finish protects from environmental and chemical damage. Complies fully with PED 97-23-EC pressure equipment standards for industrial safety compliance. Wide operating temperature range from -190°C to 232°C allows versatility across varied processes.

Supports system pressures up to 30 bar, suitable for commercial and industrial hydronic systems.

Xylem’s liquid heat exchangers form a key element in efficient thermal management across industries such as HVAC, water treatment, solar energy, and manufacturing. Selecting this model ensures high performance and durability in critical heating and cooling applications.
