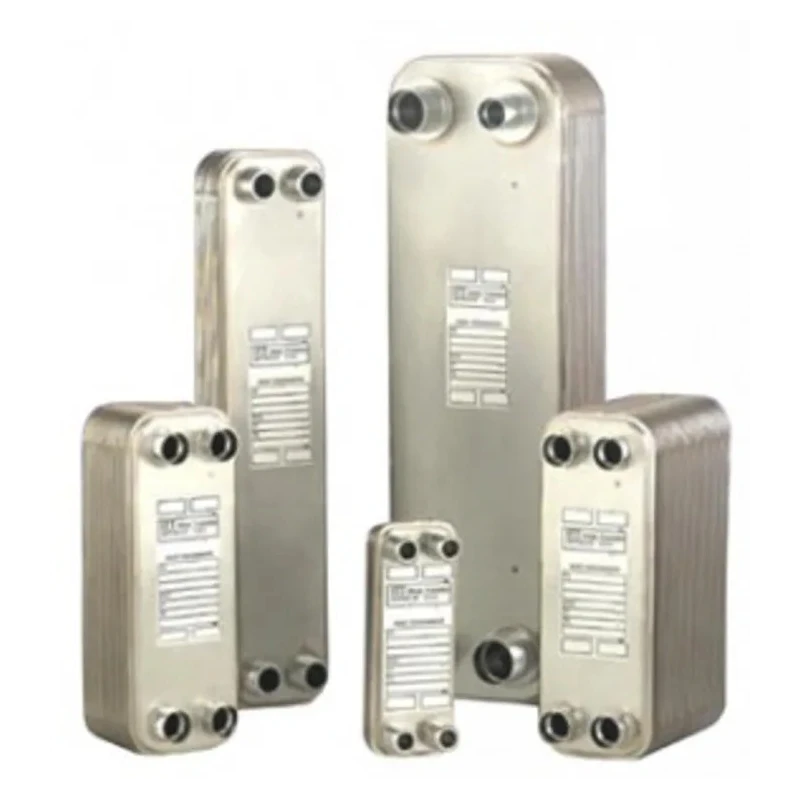

Xylem Brazed Plate Heat Exchanger, 525.4 mm Height, 112 mm Width, 24.1 mm Depth, 30 Cooling Elements, Copper LN569515030013

Free Delivery in India | Lowest Global Shipping Charges

Xylem Brazed Plate Heat Exchanger, 525.4 mm Height, 112 mm Width, 24.1 mm Depth, 30 Cooling Elements, Copper LN569515030013

Name: Xylem Brazed Plate Heat Exchanger, 525.4 mm Height, 112 mm Width, 24.1 mm Depth, 30 Cooling Elements, Copper LN569515030013
Brand: Xylem
SKU: 146958
Price: 1395.68 USD
Availability: InStock



Category Heat Exchangers Brand Xylem Condition New

Specifications

Country of Origin	United States
Brand	Xylem
Height	525.4mm
Model	LN569515030013
Depth	24.1mm
Finish	Primed, Epoxy Coated
Width	112mm
Series	BP415
Maximum Operating Temperature	232°C
Minimum Operating Temperature	-190°C
Standards/Approvals	PED 97-23-EC
Number of Cooling Elements	30
Radiator Material	Copper
Tube Connector Material	316L Stainless Steel

Key Features

The heat exchanger features a high-quality copper radiator and 316L stainless steel tube connectors.
It operates safely within a temperature range from -190°C to 232°C.
The compact design with a height of 525.4 mm, width of 112 mm, and depth of 24.1 mm ensures easy installation.
Approved under the PED 97-23-EC standard, ensuring compliance with pressure equipment regulations.
Ideal for residential and light commercial use including radiant floors, pool heating, and HVAC systems.
Supports pressures up to 30 bar for reliable performance.
Finish is primed and epoxy coated for enhanced durability.

Product Description

Xylem LN569515030013 brazed plate heat exchanger is engineered for optimized heat transfer efficiency in residential and light commercial hydronic systems. It incorporates 30 copper cooling plates brazed together with 316L stainless steel tube connectors, providing exceptional durability and corrosion resistance.

This heat exchanger measures 525.4 mm in height, 112 mm in width, and 24.1 mm in depth, making it compact and lightweight for easy mounting in crowded system spaces. The high level of thermal efficiency is due to its corrugated compact plate design that maximizes surface area with a total surface of up to 32.52 m².

Capable of withstanding pressures of up to 30 bar and operating within a broad temperature range from -190°C to 232°C, it meets rigorous industrial standards including PED 97-23-EC, guaranteeing safety and performance.

Typical applications include radiant floor heating, domestic hot water systems, pool heating, HVAC installations, solar heating systems, district heating networks, and both domestic and commercial boilers. Its epoxy-primed finish enhances resistance to environmental damage and prolongs service life.

The heat exchanger features a high-quality copper radiator and 316L stainless steel tube connectors. It operates safely within a temperature range from -190°C to 232°C. The compact design with a height of 525.4 mm, width of 112 mm, and depth of 24.1 mm ensures easy installation.

Approved under the PED 97-23-EC standard, ensuring compliance with pressure equipment regulations. Ideal for residential and light commercial applications including radiant floors, pool heating, and HVAC. Supports pressures up to 30 bar for reliable performance.

Finish is primed and epoxy coated for enhanced durability.

Choose Xylem brazed plate heat exchangers for a durable, efficient solution in thermal management systems. Browse more Heat Exchangers and related HVAC components on EnvMart for industrial and commercial applications.
