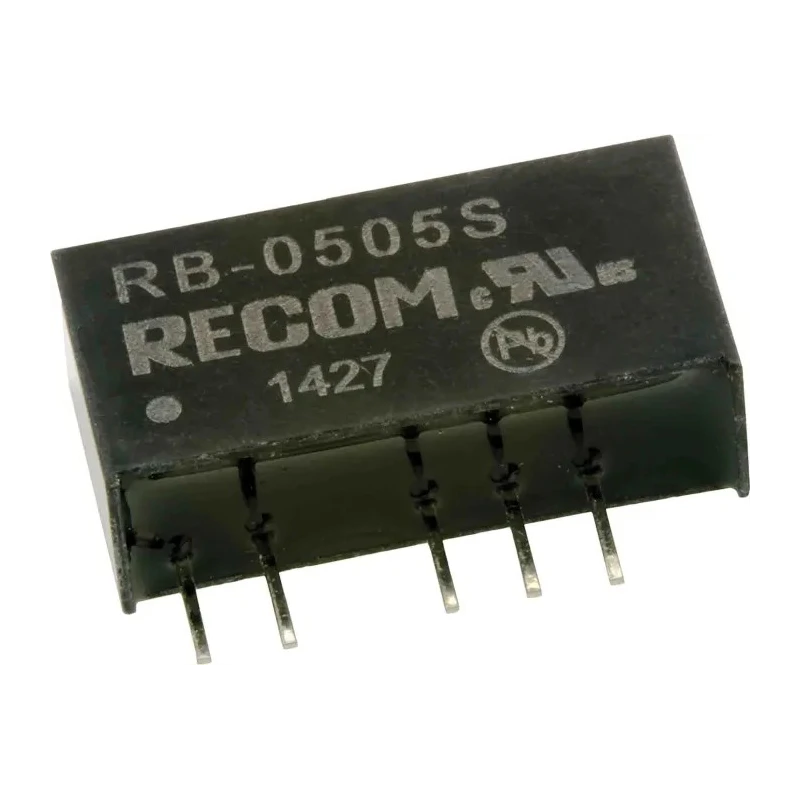

Recom 1W SIP DC/DC Converter, 5V DC Output, 200mA Output Current, 5V DC Max Input RB-0505S

Recom RB-0505S is a 1W SIP single output DC/DC converter designed to provide isolated, unregulated 5V DC output at 200mA output current. It supports input voltages from 4.5V to 5V DC, making it suitable for a variety of low power electronic applications.

The device features a through-hole SIP7 package with industry standard pin-outs for easy PCB integration and mounting. Its robust design includes an isolation voltage of 500V AC, providing electrical isolation and improved noise resistance.

The converter operates efficiently at 78% with a compact footprint of 19.6 x 10.2 x 10.2 mm, making it well suited for dense circuit layouts. Operating temperature range from -40°C up to 85°C allows usage in demanding industrial, commercial, and instrumentation environments.

Its reliability is underscored by an MTBF rating of 151000 hours and compliance with CSA, IEC, and UL safety standards. Lightweight at just 2.2 grams, it is ideal for portable and battery operated devices requiring stable DC power conversion.

Applications include industrial automation control systems, embedded electronics, measurement instruments, and power supply modules in telecommunications equipment. The isolation feature particularly benefits noise-sensitive and safety-critical designs.

This module features an unregulated, isolated single output DC-DC converter design. Supports input voltage range of 4.5V to 5V DC for flexible system integration. Package type is a SIP7 through-hole with standard pin-outs ensuring ease of PCB mounting.

High isolation voltage of 500V AC enhances safety and noise immunity in electronic circuits. Operating temperature range spans from -40°C to 85°C for reliable performance in harsh environments. Efficiency is rated at 78%, optimizing power usage for battery or low power systems.

Compact dimensions approximately 19.6mm length, 10.2mm width and depth enable space-saving designs. MTBF (mean time between failures) is 151000 hours, indicating high reliability. Conforms to CSA, IEC, and UL standards for quality and safety assurance.

Weight of 2.2g makes it suitable for light and portable electronic devices. Discover more about Recom DC/DC Converters and other power supply modules available at EnvMart to support your electronic project and industrial power conversion needs.
