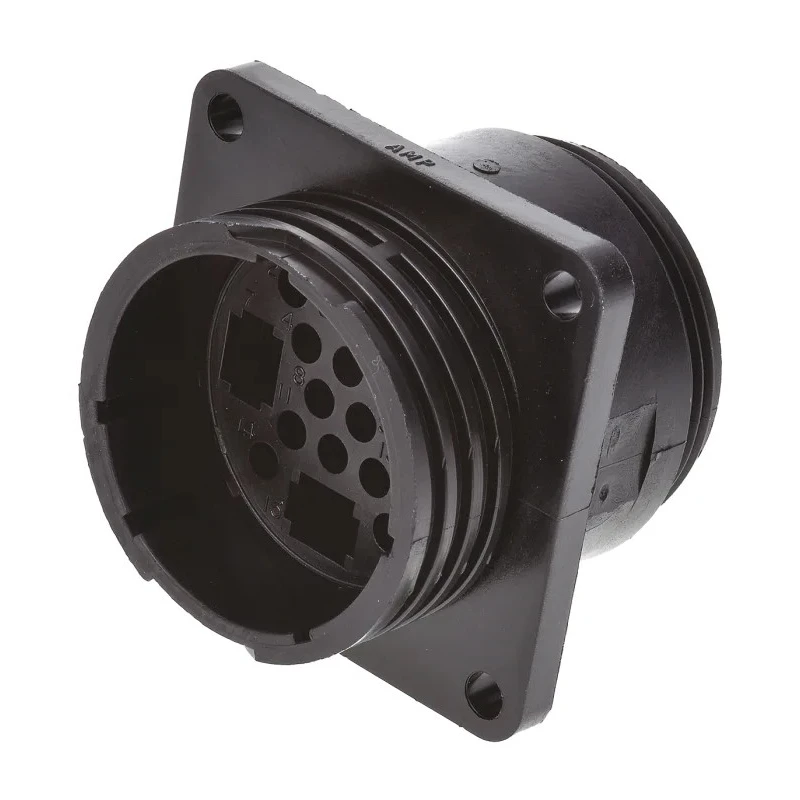

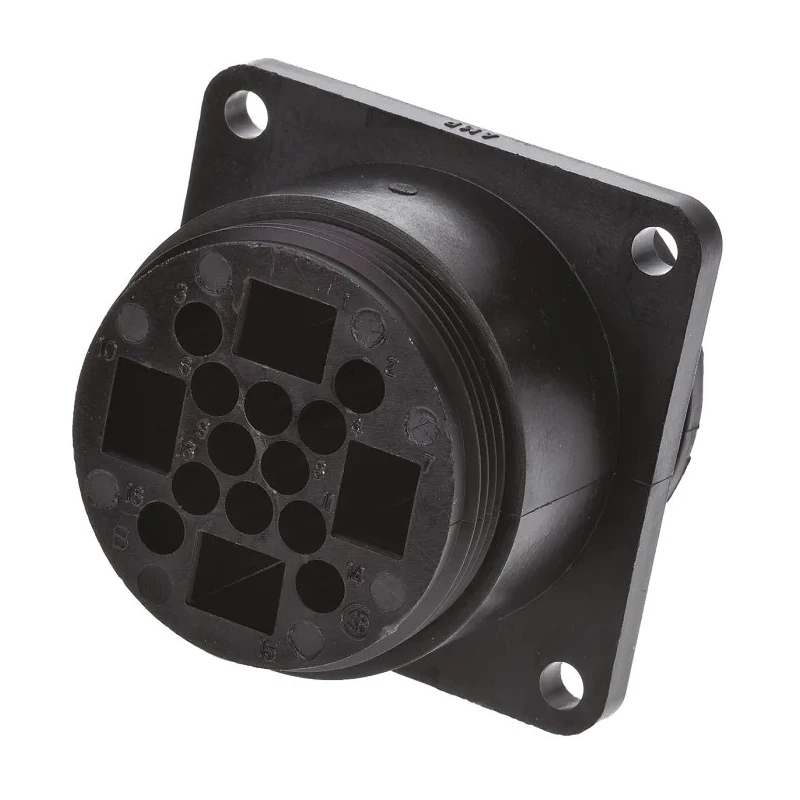

TE Connectivity Circular Connector Panel Mount 16 Contacts Socket Female 600V Thermoplastic CPC Series 207486-1

TE Connectivity model 207486-1 is a high-quality circular connector designed specifically for industrial electrical and electronic applications requiring reliable connections. Featuring 16 individual contacts housed in a durable thermoplastic shell, this panel mount socket connector provides a robust interface suitable for power and signal transmission.

This connector is part of the CPC Series known for its secure keyed mating system that prevents misalignment and ensures positive locking during assembly. It operates safely at voltages up to 600V and maintains functionality in extreme temperature conditions ranging from -55°C to 105°C, making it ideal for challenging industrial environments.

The panel mount design offers easy installation directly into equipment chassis or control panels, with a straight orientation of contacts providing clean cable management. Termination is securely achieved via screw type connections to maintain reliable electrical continuity.

With a shell size of 23 and a standard connector size, it is compatible with a range of corresponding CPC connectors. The female contact gender socket ensures versatility for use as a receptacle in various cable or device assemblies.

The connector supports a voltage rating of 600V suitable for industrial electrical applications. It features a standard size shell size 23 for compatibility with corresponding series connectors. The connector offers screw termination type ensuring secure and reliable connections.

Operating temperature ranges from -55°C minimum to 105°C maximum allowing use in harsh environments. Constructed with thermoplastic housing material providing durability and resistance. The CPC series with keyed mating type enhances alignment and connection security.

Panel mount design simplifies installation into equipment and control panels. The connector orientation is straight for straightforward cable routing.

This circular connector from TE Connectivity is well suited for use in industrial automation, machinery, manufacturing, instrumentation, and other demanding commercial environments where dependable electrical connections are critical.
