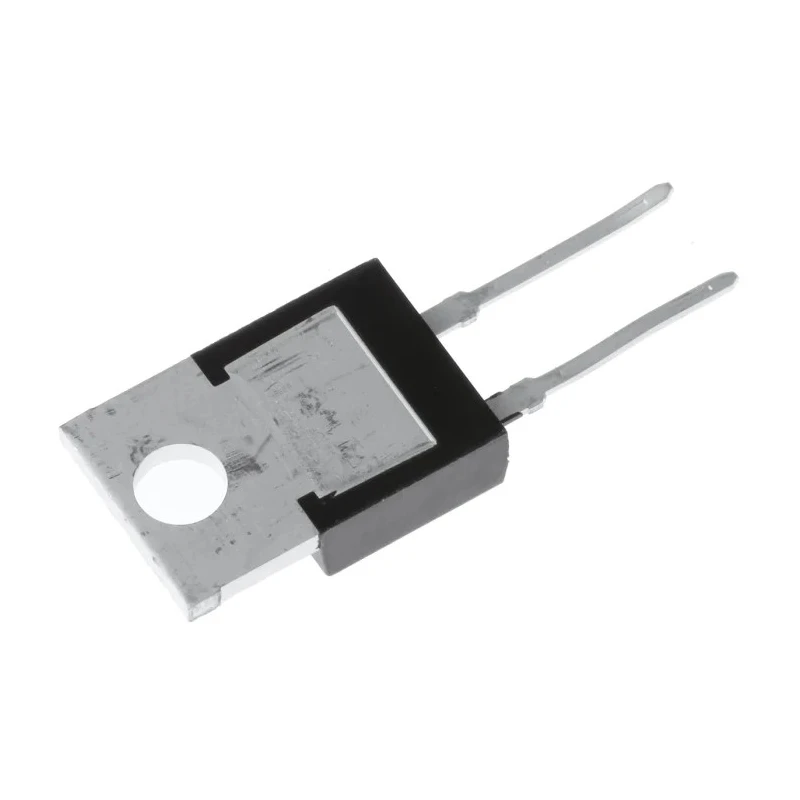

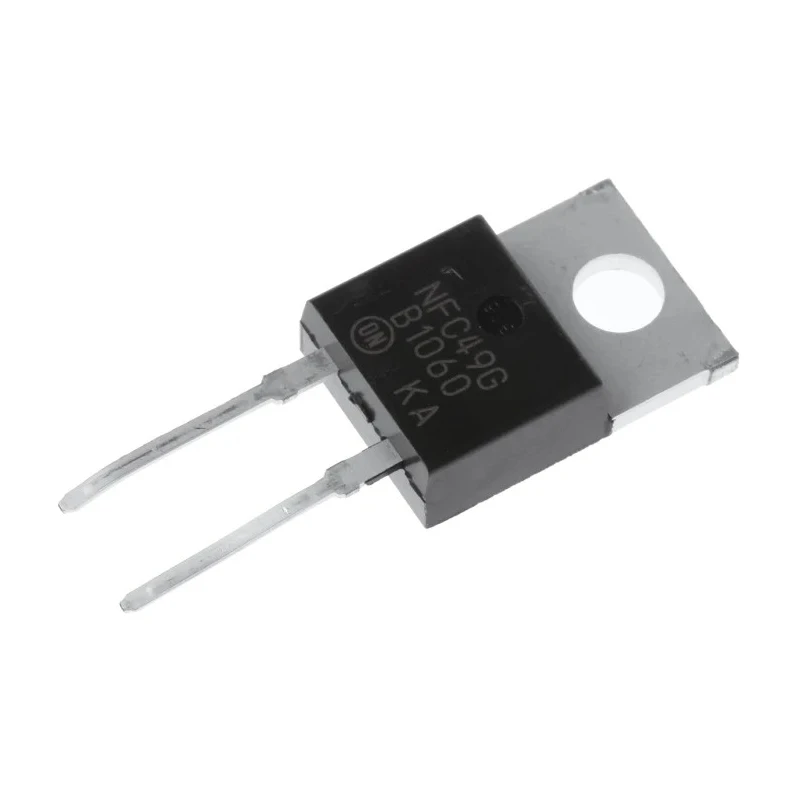

onsemi 60 V 10 A Schottky Diode Single Configuration 2-Pin Through Hole TO-220AC MBR1060G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.27mm |
| Length | 10.29mm |
| Model | MBR1060G |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | MBR1060 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.95V |
| Diode,barrier,Schottky,10A,60V,TO220AC,MBR1060Brand | ON Semiconductor |
Key Features
- The diode features a single diode configuration optimized for efficient rectification.
- Mount type is through hole for easy PCB integration.
- Maximum forward voltage drop is 0.95V, enabling low power loss.
- Device operates reliably in a temperature range of -65°C to 175°C.
- Peak non-repetitive forward surge current is 150A for transient handling.
- Pin count of 2 facilitates circuit design simplicity.
- Package dimensions are compact with width 4.82mm, length 10.29mm, and height 9.27mm.
- No automotive standard certifications are included.
Product Description
onsemi MBR1060G is a Schottky barrier diode designed for power electronics applications requiring low forward voltage drop and high efficiency. This diode is configured as a single diode with a 2-pin layout suitable for through-hole mounting on PCBs.
It supports a maximum continuous forward current of 10A and a peak inverse voltage (repetitive reverse voltage) rating of 60V, making it suitable for rectification in low to medium power circuits. The low maximum forward voltage of 0.95V ensures minimized conduction losses and improved efficiency.
Designed to operate under a wide temperature spectrum from -65°C minimum to 175°C maximum, this diode delivers reliable performance in demanding industrial, electronic manufacturing, and power supply applications. Its peak surge current rating of 150A enables it to handle transient current spikes effectively.
The TO-220AC package ensures easy installation and thermal management with dimensions of approximately 4.82mm width, 10.29mm length, and 9.27mm height. While it does not carry automotive standard certifications, it meets industry expectations for general electronic component robustness.
The diode features a single diode configuration optimized for rectification efficiency. Through-hole mount type promotes PCB assembly compatibility. Maximum forward voltage drop of 0.95V reduces power loss. Pin count of 2 supports simple circuit integration.
Operates reliably from -65°C up to 175°C ambient temperatures. Peak non-repetitive forward surge current of 150A handles transient surges. Compact TO-220AC package with precise dimensions for thermal performance. Suitable for power supply, industrial electronics, and semiconductor applications.
Choose onsemi MBR1060G for durable and efficient Schottky diode performance in your electronic designs. Browse the wide selection of semiconductor components in EnvMart for related products.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 10A.
The peak reverse repetitive voltage rating is 60V.
The maximum forward voltage drop is 0.95V, which helps minimize power loss.
It operates reliably within a temperature range of -65°C to 175°C.
The diode is packaged in a TO-220AC type with dimensions of 4.82mm width, 10.29mm length, and 9.27mm height.
The peak non-repetitive forward surge current rating is 150A, allowing it to handle transient current spikes effectively.
This diode features a 2-pin configuration, facilitating simple circuit design.
It supports through-hole mounting, making it compatible with PCB assembly.
It has a single diode configuration optimized for efficient rectification.
The peak reverse current rating is 100μA.
This diode is suitable for power supply, industrial electronics, and semiconductor applications.
The country of origin for this diode is India.
