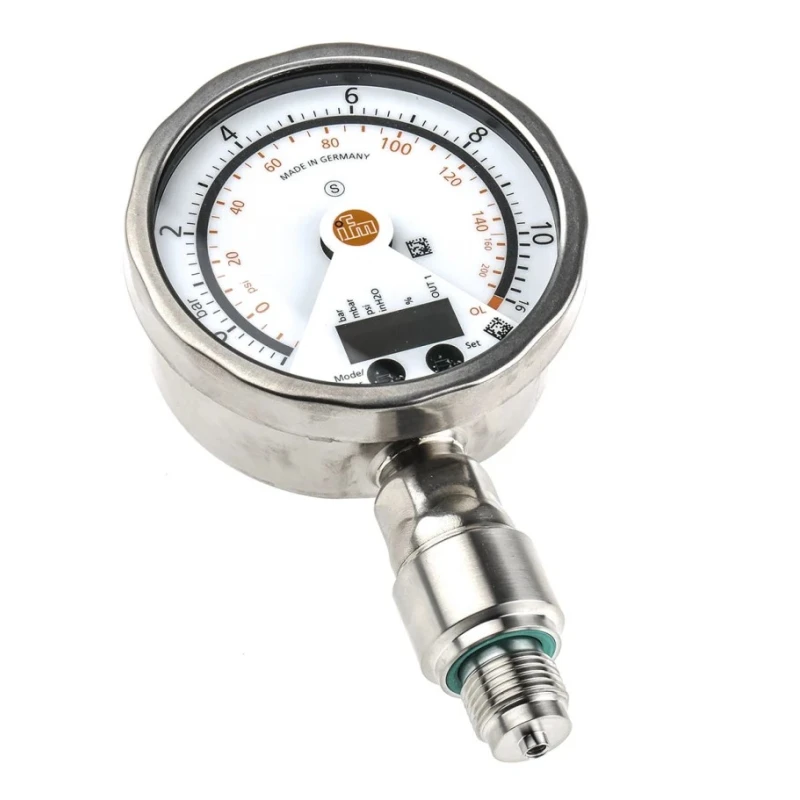

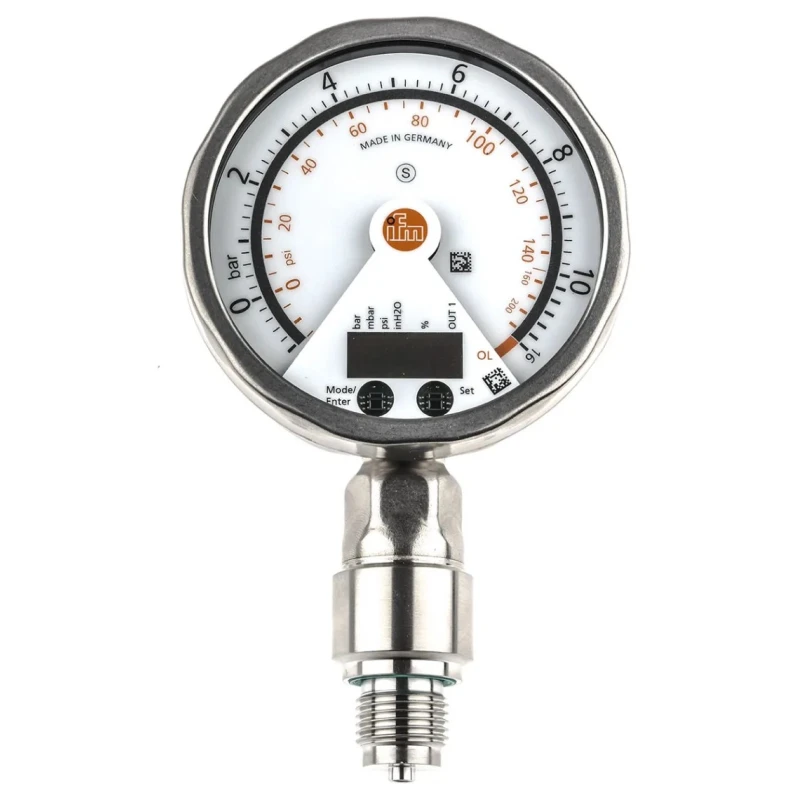

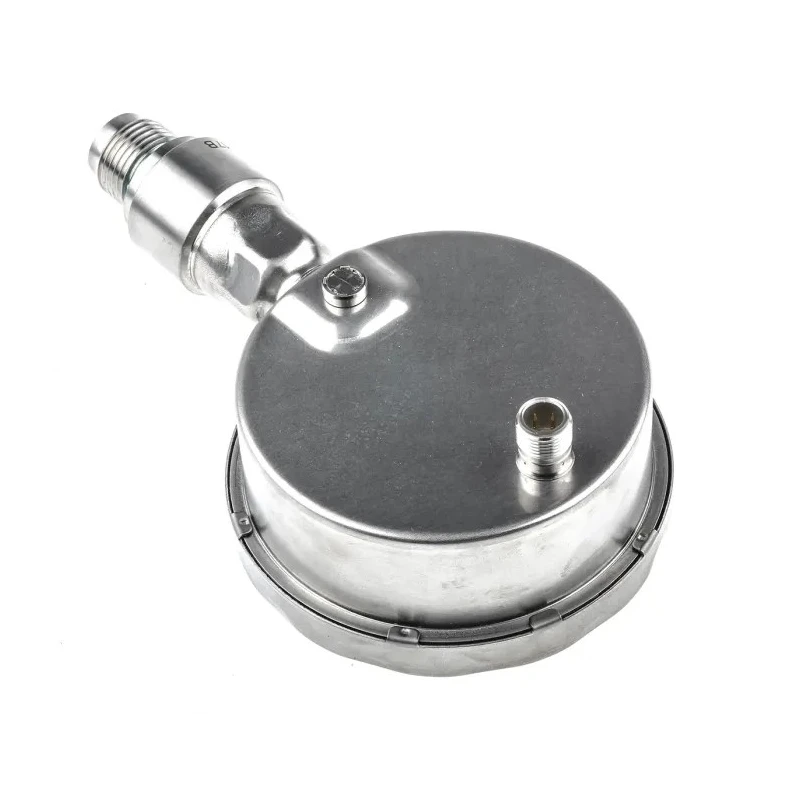

ifm electronic Series Pressure Sensor with Analogue, PNP NO/NC Output, -1 bar Minimum Pressure, 10 bar Maximum PG24
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±0.5 % |
| Brand | ifm electronic |
| Response time | 28ms |
| Model | PG24 |
| IP Rating | IP69K, IP67 |
| Housing Material | Stainless Steel |
| Process connection | G 1/2 |
| Output type | Analogue, PNP NO/NC |
| Series | PG24 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | -1bar |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 18V |
| Pressure Reading Type | Relative |
| Media Measured | Gas, Liquid |
Key Features
- Accurate sensing with ±0.5% accuracy ensures reliable data for control systems.
- Robust stainless steel housing provides durability and resistance against harsh environments.
- Wide operating temperature range from -20°C to 80°C suits diverse industrial applications.
- High IP69K and IP67 ratings offer excellent protection against water and dust ingress.
- Fast response time of 28 ms enables efficient process monitoring.
- Suitable for measuring both gas and liquid media.
- Equipped with a G 1/2 process connection for versatile installation.
- Conforms to multiple standards including EN 61000-4 series and DIN IEC 68-2 for electromagnetic compatibility.
Product Description
ifm electronic PG2454 Pressure Sensor from the PG24 Series features analogue output combined with PNP NO/NC switch outputs for flexible signal processing. The sensor measures relative pressure ranging from -1 bar to a maximum of 10 bar. This device is built with a robust stainless steel housing ensuring long-term durability and resistance to demanding industrial environments. Its wide operating temperature range from -20°C to 80°C and high ingress protection ratings IP67 and IP69K make it suitable for harsh conditions and washdown applications.

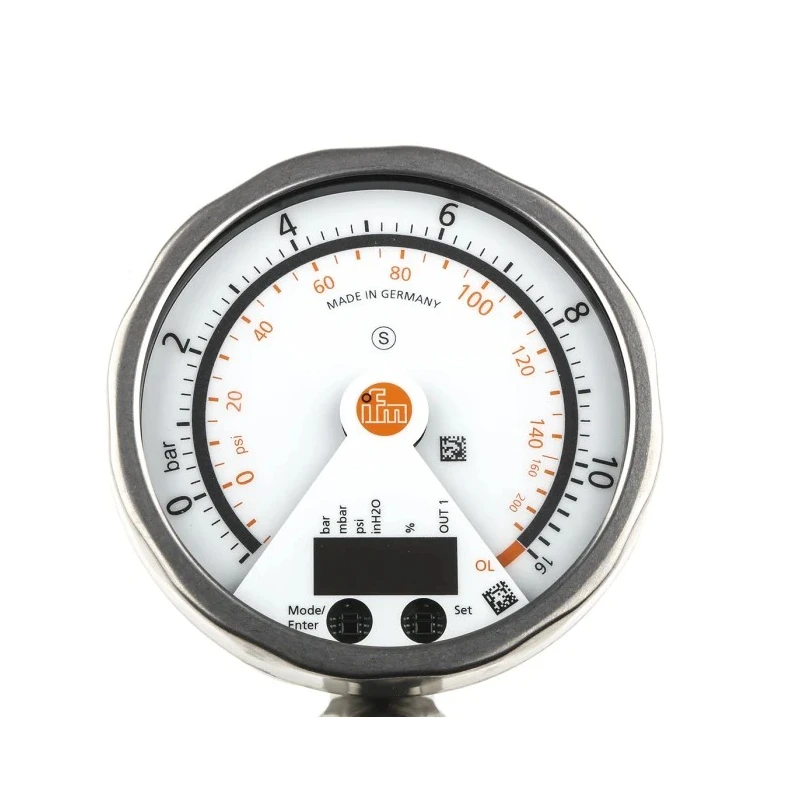

The sensor includes a rotatable analogue display for clear numeric readings with a resolution of 0.25%. The fast 28 ms response time supports real-time pressure monitoring in automation, manufacturing, water treatment, and process control systems. The integrated PNP NO/NC output options allow versatile wiring configurations.
Designed to accurately measure pressure in gas and liquid media, the PG2454 employs a standard G 1/2 process connection for easy integration. Compliance with several electromagnetic compatibility standards such as EN 61000-4 series and DIN IEC 68-2 certifies its industrial readiness.
Accurate pressure sensing with ±0.5% tolerance. Stainless steel housing offers corrosion resistance. Wide temperature range supports diverse environments. High IP69K and IP67 protection ratings ensure durability. Fast 28 ms response enables quick data acquisition.
Suitable for both gas and liquid media. Standard G 1/2 process connection for compatibility. Meets multiple international EMC standards.
This high-precision pressure sensor is ideal for use in industrial automation, laboratory instrumentation, manufacturing processes, HVAC systems, and water treatment applications where reliable pressure measurement is essential.
Explore more from the ifm electronic PG24 Series Pressure Sensors at EnvMart to find sensors tailored to your specific measurement requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pressure sensor measures relative pressure from -1 bar to a maximum of 10 bar.
It offers an accuracy of ±0.5%.
It is suitable for measuring both gas and liquid media.
The response time is 28 milliseconds, allowing for efficient process monitoring.
It has high IP67 and IP69K ratings, providing excellent protection against water and dust ingress.
The housing is made of stainless steel, ensuring durability and resistance to harsh environments.
It operates within a temperature range of -20°C to 80°C.
It features a standard G 1/2 process connection for easy integration.
This sensor supports analogue output along with PNP NO/NC switch outputs for flexible signal processing.
Yes, it conforms to multiple standards including EN 61000-4 series and DIN IEC 68-2 for electromagnetic compatibility.
The minimum supply voltage is 18V, and the maximum is 32V.
It is suitable for applications in industrial automation, laboratory instrumentation, manufacturing processes, HVAC systems, and water treatment.
