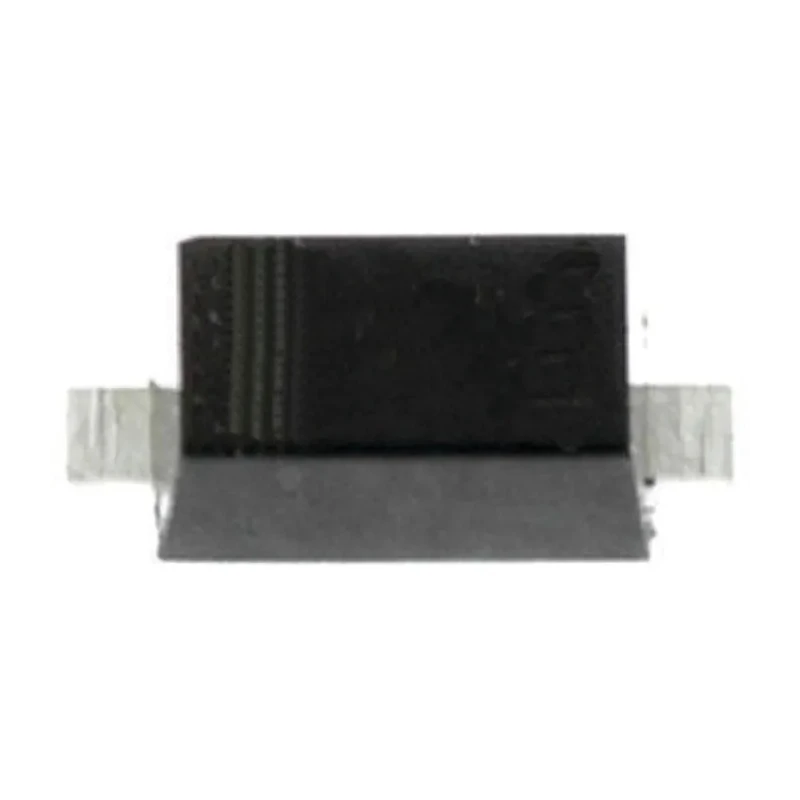

Nexperia Schottky Diode 60 V 1 A Surface Mount 2-Pin SOD-123 PMEG6010CEH,115

The Nexperia PMEG6010CEH,115 is a highly efficient Schottky diode designed for surface mount applications, housed in a 2-pin SOD-123 package. This semiconductor device features a maximum continuous forward current of 1 ampere and a peak reverse voltage of 60 volts, making it suitable for various industrial and electronic applications.

Constructed with a built-in guard ring, the diode provides enhanced stress protection, contributing to its robustness and reliability. It operates effectively across a broad temperature range from -65°C to 150°C, allowing deployment in demanding conditions found in industrial, automotive, and power supply contexts.

With a maximum forward voltage of 660 millivolts, the PMEG6010CEH,115 delivers low voltage drop for efficient rectification, minimizing power loss in circuits. It supports a peak non-repetitive forward surge current of 9 amperes, enabling it to handle transient current spikes typical in power conversion environments.

This diode is ideal for use in low voltage rectification tasks, DC-to-DC conversion circuits, and switch mode power supplies where high efficiency and reliability are required. Its small and flat SMD form factor aids in compact PCB layouts and automated assembly processes.

The package dimensions approximate 2.7 mm length, 1.7 mm width, and 1.2 mm height, suitable for high-density electronics manufacturing. Although not specifically certified with automotive standards, this diode’s robust specifications make it a versatile component for various electronic designs.

Produced under the Nexperia PMEG6010CEH series, this model is manufactured in China under new condition standards ensuring quality and performance. Provides low forward voltage drop for efficient rectification. Compact and flat small outline diode package suitable for space-saving designs.

Maximum continuous forward current rating of 1 ampere for reliable operation. Reverse voltage rating up to 60 volts ensuring robust performance under high voltage. Built-in guard ring for stress protection extends device reliability.

Wide operating temperature range from -65°C up to 150°C for harsh environments. Peak non-repetitive forward surge current of 9 amperes for transient load conditions. Low peak reverse current of 50 microamperes reducing leakage losses.

Ideal for low voltage rectification, DC-to-DC converters, and switch mode power supplies. Manufactured in China adhering to quality standards. Explore the Electronics & Electricals category for more semiconductor components and efficient Schottky diodes at EnvMart.
