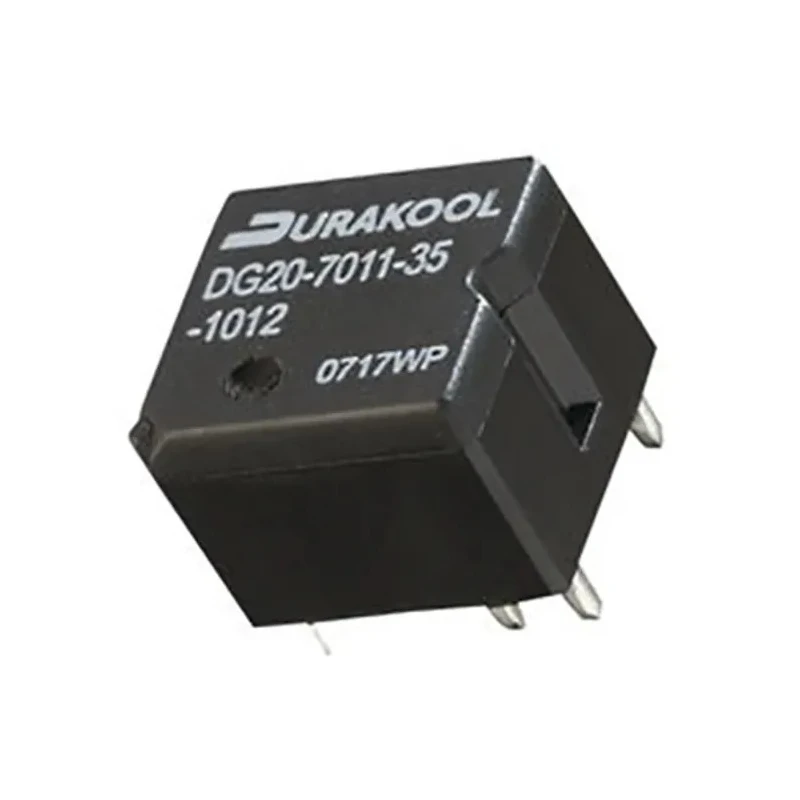

Durakool PCB Automotive Relay 12V Coil Voltage 30A Switching Current SPNO DG20-7021-35-1012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 21.4mm |
| Length | 26.5mm |
| Model | DG20-7021-35-1012 |
| Depth | 12.3mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG20 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPNO |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Coil Resistance | 254Ω |
| Coil Power | 550mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay has a coil power of 550 milliwatts for efficient operation.
- The coil resistance is 254 ohms, ensuring stability in control circuits.
- Designed for PCB mounting, with PCB terminal type for easy installation.
- Operating temperature range is from -40°C to 125°C, suitable for automotive environments.
- The relay includes one pole and silver tin oxide indium oxide contact material for durability.
- It features 500 Vrms isolation between coil and contacts to withstand voltage spikes.
- Ultra miniature design makes it ideal for space-constrained circuits.
- High resistance to inrush current protects the relay under load variations.
Product Description
Durakool DG20-7021-35-1012 is a high-quality PCB automotive relay designed for automotive and industrial applications requiring reliable switching performance. It features a 12V coil voltage and can handle a 30A switching current with its Single Pole Normally Open (SPNO) contact configuration, making it suitable for power relay functions on printed circuit boards.
This ultra miniature relay offers high resistance to inrush current, enhancing its durability and providing resilience against sudden current spikes common in automotive electrical systems. The coil power consumption is 550mW and coil resistance is 254 ohms, ensuring energy-efficient operation across a broad temperature range from -40°C to 125°C.
Constructed with silver tin oxide indium oxide contact material, the relay ensures a long electrical life and corrosion resistance. The package is designed for PCB mounting using PCB terminals, offering a compact form factor measuring 26.5mm in length, 21.4mm in height, and 12.3mm in depth. Isolation voltage of 500 Vrms between coil and contacts guarantees safety and prevents interference.
This relay is RoHS compliant and comes from China, meeting industrial standards for quality and environmental safety. Its miniature size and durability make it well suited for automotive electronics, industrial automation, and other applications demanding reliable PCB-mounted power relays.
This relay has a coil power of 550 milliwatts for efficient operation. The coil resistance is 254 ohms, ensuring stability in control circuits. Designed for PCB mounting, with PCB terminal type for easy installation. Operating temperature range is from -40°C to 125°C, suitable for automotive environments.
The relay includes one pole and silver tin oxide indium oxide contact material for durability. It features 500 Vrms isolation between coil and contacts to withstand voltage spikes. Ultra miniature design makes it ideal for space-constrained circuits.
High resistance to inrush current protects the relay under load variations. Explore more products in the Automotive Relay category at EnvMart for reliable electrical and automotive component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V.
It can handle a maximum switching current of 30A.
This model measures 26.5mm in length, 21.4mm in height, and 12.3mm in depth.
It features a Single Pole Normally Open (SPNO) contact configuration.
The operating temperature range is from -40°C to 125°C.
The coil resistance is 254 ohms.
The isolation voltage between the coil and contacts is 500 Vrms.
The contacts are made from silver tin oxide indium oxide.
The coil power consumption is 550 milliwatts.
Yes, it is designed for PCB mounting with PCB terminal type for easy installation.
This relay is suitable for automotive and industrial applications requiring reliable switching performance.
The relay is manufactured in China.
