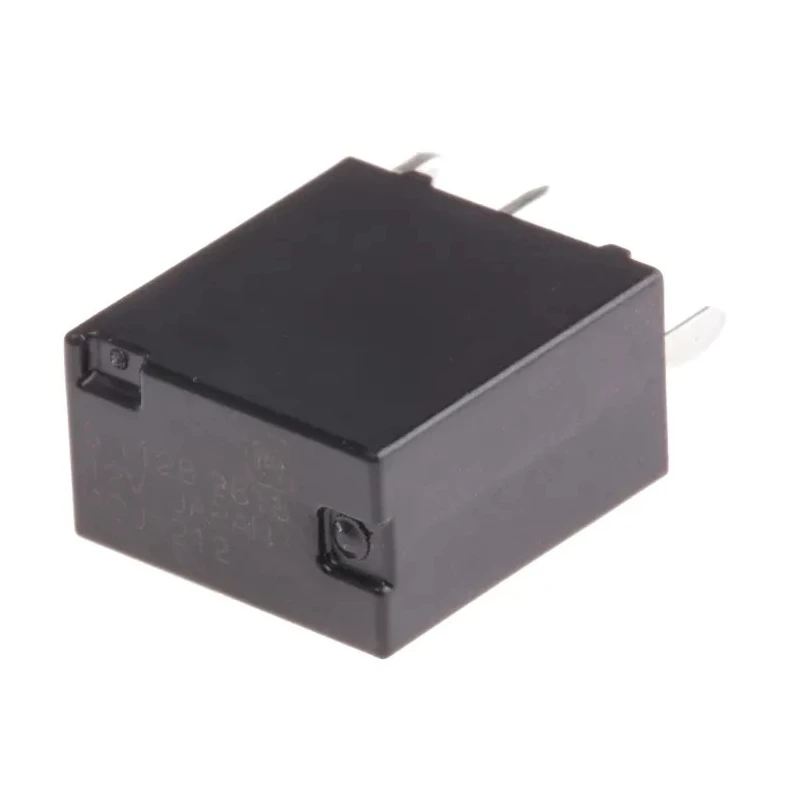

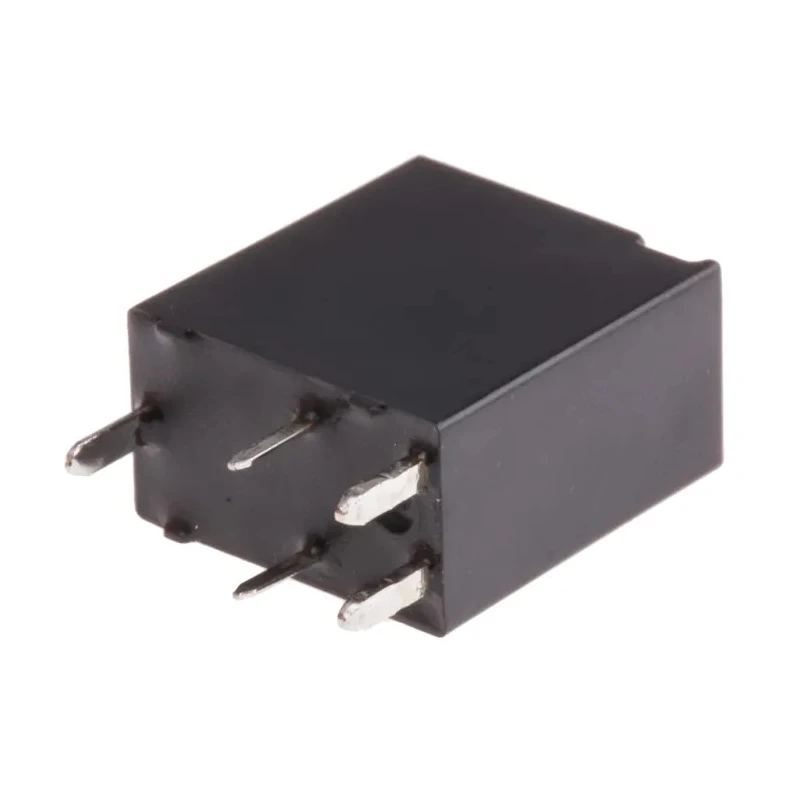

Panasonic PCB Automotive Relay 12V DC Coil Voltage 20A Switching Current SPDT ACJ1212
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.5mm |
| Length | 12.2mm |
| Model | ACJ1212 |
| Depth | 13.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ACJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Typical Applications | Powered windows, automatic door locks, powered seats |
| Number of Poles | 1 |
| Coil Resistance | 225Ω |
| Coil Power | 640mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Extremely compact with smallest dimensions in its class for PCB mounting.
- Coil power consumption is nominal 640 mW ensuring low operational power.
- Contact material made of silver alloy providing excellent conductivity.
- Isolation between coil and contacts rated at 500 Vrms for safety.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Single pole double throw (SPDT) contact configuration for versatile switching.
- Designed for automotive applications such as powered windows, door locks, and seats.
- PCB mount type with through-hole terminals for secure installation.
Product Description
Panasonic ACJ1212 is a PCB Automotive Relay designed for miniaturized automotive relay units requiring reliable switching with low power usage. It features a 12V DC coil voltage and supports a maximum switching current of 20A for up to 1 hour, with a peak capability of 30A for 2 minutes. The relay uses silver alloy contacts that are cadmium-free and environmentally friendly.
This relay unit is distinguished by its extremely compact dimensions: 12.2mm length, 13.5mm height, and 13.7mm depth, making it the smallest in its class for PCB mounting applications. The coil power is nominal at 640 mW, ensuring efficient power consumption during operation.
The relay provides electrical isolation between coil and contact rated at 500 Vrms, enabling safe use in automotive electrical systems. It is suitable for operating in harsh automotive environments with a temperature range from -40°C to +85°C.
The SPDT (Single Pole Double Throw) contact configuration and single pole design enable switching versatility essential in automotive control circuits such as powered windows, automatic door locks, powered seats, sunroofs, and smart junction box applications.
Extremely compact and smallest in its class for PCB mounting. Nominal coil voltage 12V DC with low coil power consumption. Silver alloy contact material offers durability and excellent conductivity. Isolation coil to contact voltage rating of 500 Vrms ensures safety.
Operating temperature range -40°C to 85°C suitable for automotive use. SPDT contact configuration for multiple switching options. Single pole, through-hole PCB mount type simplifies assembly. Dimensions: 12.2mm (L) x 13.5mm (H) x 13.7mm (D).
Made in Japan guaranteeing high manufacturing standards.
This Panasonic Automotive Relay is ideal for industrial, automotive, and electrical applications requiring compact design with reliable high-current switching capabilities. Explore more Panasonic relays and automotive electrical components for enhanced performance in your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 20A for up to 1 hour, with a peak capability of 30A for 2 minutes.
This model operates with a coil voltage of 12V DC.
The dimensions of the relay are 12.2mm in length, 13.5mm in height, and 13.7mm in depth.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching options.
The isolation between the coil and contacts is rated at 500 Vrms.
The relay operates reliably in temperatures ranging from -40°C to +85°C.
This relay is designed for PCB mounting with through-hole terminals for secure installation.
The contacts are made of silver alloy, which provides excellent conductivity.
It is suitable for automotive applications such as powered windows, automatic door locks, and powered seats.
The coil resistance is 225Ω.
This relay is manufactured in Japan, ensuring high manufacturing standards.
The nominal coil power consumption is 640 mW, ensuring low operational power.
