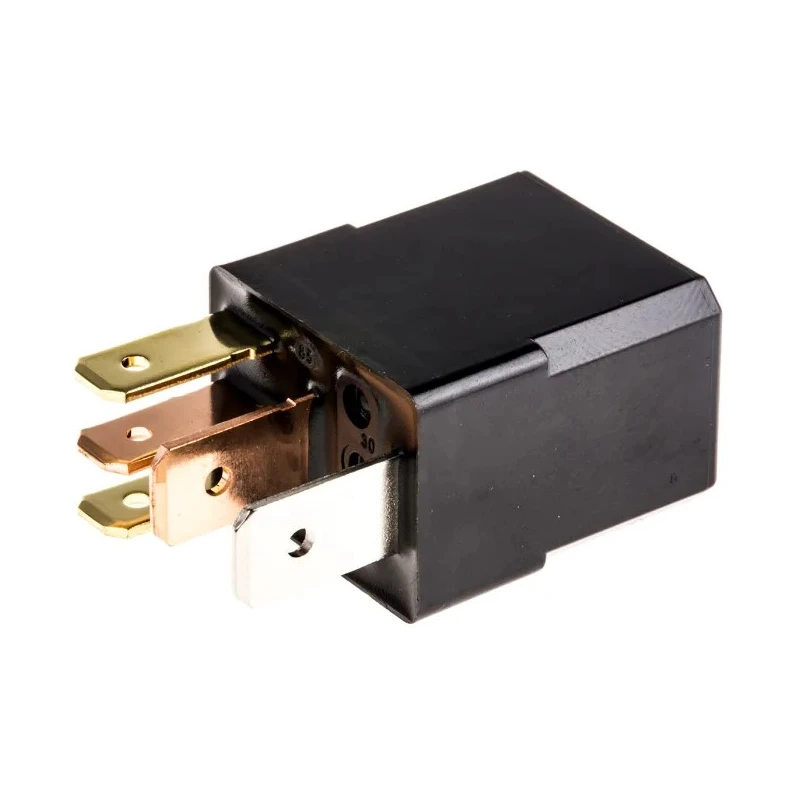

Panasonic Automotive Relay 24V DC Coil Voltage 1.8W Coil Power 15A Switching Current SPDT CM1-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 22mm |
| Length | 20mm |
| Model | CM1-24V |
| Depth | 15mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Small size | L20 x W15 x H22 mm |
| Minimum Operating Temperature | -40°C |
| Terminal type | Plug-In |
| Number of Poles | 1 |
| Coil Resistance | 320Ω |
| Coil Power | 1.8W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Compact micro-ISO relay with dimensions L20 x W15 x H22 mm.
- Single pole double throw (SPDT) contact configuration.
- Plug-in terminal type facilitating easy installation.
- Coil power consumption of 1.8W with coil resistance of 320Ω.
- Operates within a temperature range from -40°C to 85°C for wide environmental resilience.
- Silver alloy contact material ensures long durability and conductance.
- Isolation voltage between coil and contact is 500 Vrms for enhanced safety.
- Suitable for automotive systems including fan motors, heaters, head lamps, air compressors, EPS, ABS, blower fans, and defoggers.
Product Description
Panasonic CM1-24V Automotive Relay is a compact, high-performance relay designed for automotive electrical systems requiring reliable switching and durability. It operates with a 24V DC coil voltage and supports a high switching current of 15A, ideal for demanding applications in vehicles and industrial automotive environments.
This relay features micro-ISO type plug-in terminals and conforms to international standard ISO terminal arrangements, enabling easy integration into existing automotive systems. Its small footprint with dimensions of 20mm length, 15mm depth, and 22mm height allows use in space-constrained scenarios.
The device consumes 1.8W of coil power and has a coil resistance of 320Ω. The contact configuration is single pole double throw (SPDT), providing flexible circuit control. Contacts are made of silver alloy providing excellent electrical conduction and durability over repeated switching cycles.
Designed to operate reliably in harsh conditions, it supports operating temperatures ranging from -40°C to 85°C. The relay offers an isolation voltage of 500 Vrms between coil and contact, enhancing operational safety and reliability.
Typical uses include automotive fan motors, heaters, head lamps, air compressors, electronic power steering (EPS), anti-lock braking systems (ABS), blower fans, and defoggers. This relay is ideal for industrial automotive, manufacturing, and electrical system applications requiring robust, compact switching devices.
Compact micro-ISO design with standard plug-in terminals. High-capacity 15A load switching suitable for automotive circuits. Robust silver alloy contacts for long service life. Wide operating temperature range for various environments.
High isolation voltage enhancing device safety. Applicable in various automotive electrical and control systems. Explore Panasonic automotive relays and related products in the Electronics & Electricals category at EnvMart for comprehensive industrial and Automotive Relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It supports a maximum switching current of 15A.
The relay has dimensions of 20mm in length, 15mm in depth, and 22mm in height.
It features a single pole double throw (SPDT) contact configuration.
The coil power consumption is 1.8W.
The isolation voltage is 500 Vrms, enhancing safety during operation.
The contacts are made of silver alloy, providing excellent electrical conduction.
It operates within a temperature range of -40°C to 85°C.
This relay uses plug-in terminals for easy installation.
It is suitable for automotive systems including fan motors, heaters, head lamps, air compressors, EPS, ABS, blower fans, and defoggers.
The country of origin for this relay is Japan.
This relay has one pole.
