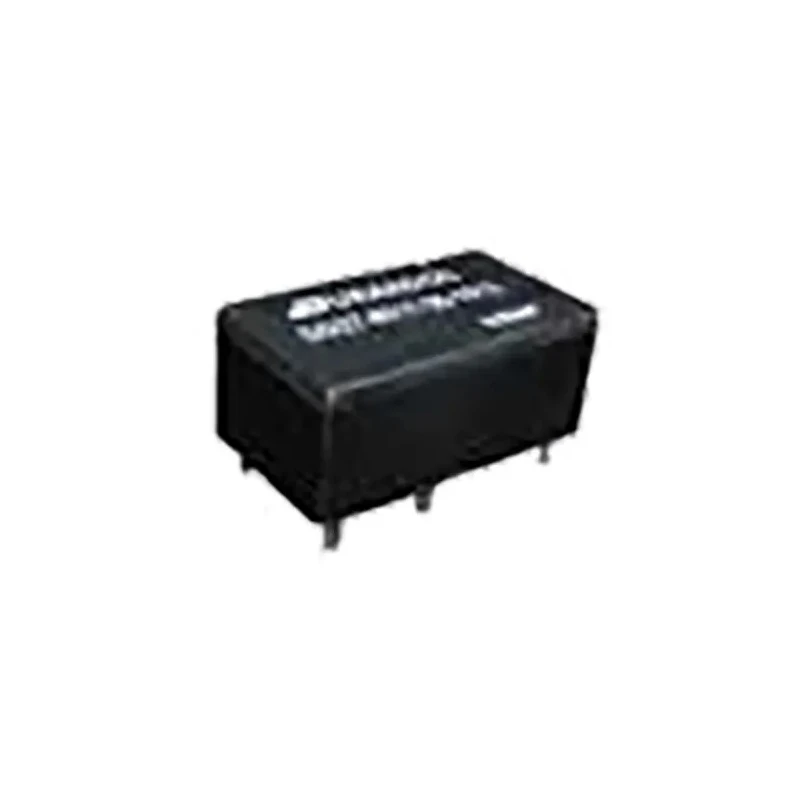

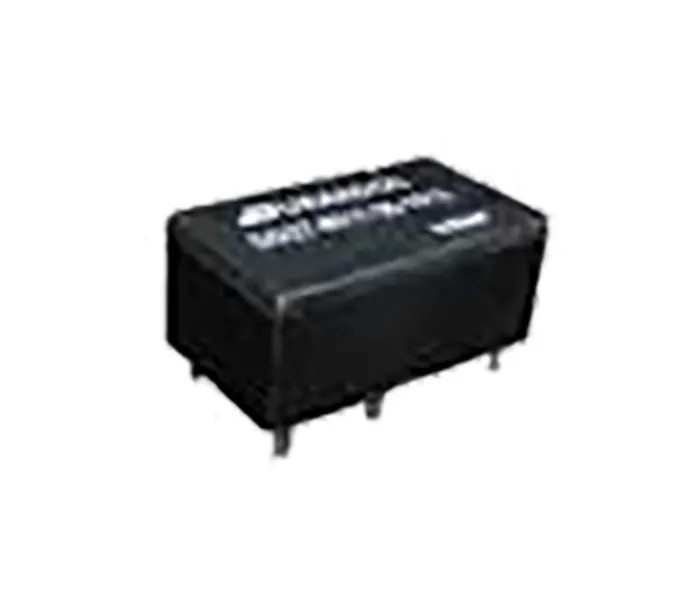

Durakool PCB Automotive Relay 12V Coil Voltage 60A Switching Current SPDT DG08-7011-35-1012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 21.4mm |
| Length | 26.5mm |
| Model | DG08-7011-35-1012 |
| Depth | 15.8mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG08 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Coil Resistance | 180Ω |
| Coil Power | 800mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay has a coil power of 800mW for efficient operation.
- The coil resistance is rated at 180Ω, providing reliable switching performance.
- It supports a single pole, double throw (SPDT) contact setup for versatile electrical control.
- Designed with PCB terminals and mount type for easy installation.
- Operating temperature ranges from -40°C to 125°C, suitable for automotive environments.
- Compact dimensions of 26.5mm length, 21.4mm height, and 15.8mm depth fit tight PCB layouts.
- Isolation between coil and contact is rated at 500Vrms to ensure electrical safety.
- Contact materials include silver tin oxide and indium oxide for durability and conductivity.
Product Description
Durakool DG08-7011-35-1012 automotive relay is a high-performance PCB-mounted relay designed for automotive electrical circuits. It operates on a 12V coil voltage and supports a high switching current of 60A, making it suitable for applications requiring robust and reliable electrical switching.
This relay features a single pole double throw (SPDT) contact configuration, allowing control of two output circuits from one input, enhancing its flexibility in control systems. The relay coil power consumption is 800mW, with a coil resistance of 180Ω, ensuring energy-efficient activation. Its compact size (26.5mm x 21.4mm x 15.8mm) allows easy integration onto PCB layouts typical in automotive electronics.
The operating temperature range from -40°C to 125°C ensures reliable performance under harsh automotive conditions. The relay uses silver tin oxide and indium oxide in its contacts, providing excellent electrical conductivity and long service life. Isolation voltage of 500Vrms between coil and contact enhances safety and noise immunity.
This product is manufactured in China and forms part of Durakool's DG08 series, known for miniature twin power relays with high cycle life and non-latching coil operation. This relay supports high switching currents up to 60A for demanding electrical loads.
It is ideal for DC motor control and other automotive electrical switching needs. The PCB mount type and terminal configuration facilitate straightforward circuit integration. Its compact form factor helps in space-constrained automotive environments.
Robust materials ensure reliability and long operational life. Wide temperature operating range suits various climatic conditions. High isolation voltage upholds safety standards in automotive circuits.
Durakool Automotive Relays are excellent components for automotive electrical control systems, industrial automation, and other applications requiring dependable relay performance. Explore more products from Durakool for diverse relay and electrical switching solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates on a 12V coil voltage, making it suitable for automotive applications.
It supports a maximum switching current of 60A, allowing it to manage demanding electrical loads.
This model features a single pole double throw (SPDT) contact configuration, enabling control of two output circuits from one input.
The relay measures 26.5mm in length, 21.4mm in height, and 15.8mm in depth, allowing for compact PCB integration.
The coil resistance is rated at 180Ω, which contributes to its reliable switching performance.
It operates within a temperature range of -40°C to 125°C, making it suitable for harsh automotive environments.
The contacts are made from silver tin oxide and indium oxide, which provide good electrical conductivity and durability.
It features a PCB mount type, designed for straightforward integration onto printed circuit boards.
The isolation between the coil and contact is rated at 500Vrms, ensuring electrical safety and noise immunity.
The coil power consumption is 800mW, which supports energy-efficient operation.
This relay is part of the Durakool DG08 series, known for miniature twin power relays with high cycle life.
This product is manufactured in China, as indicated in its specifications.
