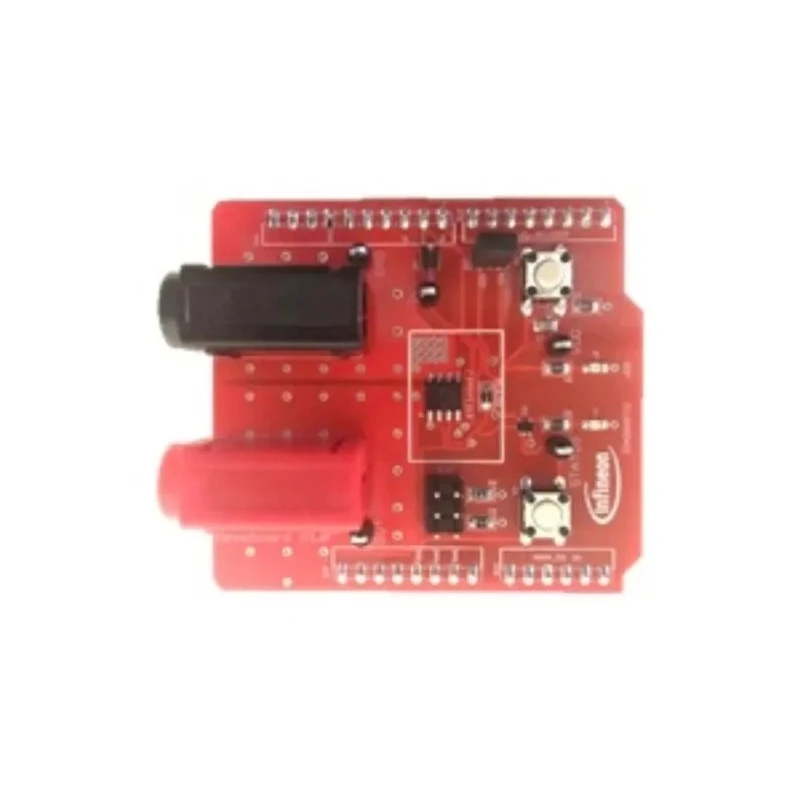

Infineon Arduino Compatible Evaluation Board 12V Medium Ohmic Power Switch with Over Temperature Protection BTF3080EJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BTF3080EJ |
| Kit Classification | Evaluation Board |
| Processor Part Number | XMC1100 |
| Revision | V1.0 |
| Arduino Board Name | Arduino UNO |
Key Features
- Compatible with Arduino UNO board for easy integration.
- Equipped with over temperature protection allowing auto restart.
- Supports slew rate control and PWM frequency up to 20 kHz.
- Features a dedicated STATUS pin for system monitoring.
- Consumes very low power due to DMOS leakage current.
- Includes inrush current capability for robust startup operation.
- Active freewheeling improves efficiency and reduces switching losses.
Product Description
Infineon BTF3080EJ is a 12V Arduino Compatible Evaluation Board designed for controlling medium ohmic power switches, featuring advanced protections and control capabilities. It integrates with Arduino UNO boards and is classified as an evaluation kit to facilitate testing and development.
This board incorporates over temperature protection that enables auto restart, enhancing system reliability under thermal stress. Additionally, it supports slew rate control and pulse-width modulation (PWM) up to 20 kHz, allowing precise control over power switching.
A dedicated STATUS pin is provided to monitor the operating state of the switch, which is useful for diagnostic and control systems. The board is engineered to have a very low DMOS leakage current, minimizing power consumption during standby.
It also offers inrush current capability to handle power surges during startup phases without damage. Active freewheeling is employed to improve overall efficiency and reduce switching losses while operating in a PWM mode.
This evaluation board is ideal for applications in industrial electronics, embedded system development, educational Arduino projects, and prototyping power control circuits. It is especially suited for users requiring a reliable power switch module with integrated protections and easy Arduino compatibility.
Compatible with Arduino UNO board for seamless prototyping. Over temperature protection with automatic restart. Slew rate control ensures minimal noise and smooth switching. Supports PWM up to 20 kHz for flexible control.
Dedicated STATUS pin for real-time monitoring. Low DMOS leakage current reduces energy consumption. Robust inrush current capability during startup. Active freewheeling enhances efficiency and reduces losses. Explore more Arduino Compatible Boards & Kits and evaluation boards on EnvMart for your embedded project needs.
Explore more products in our Arduino Compatible Boards & Kits category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board is designed for controlling medium ohmic power switches, featuring advanced protections and control capabilities suitable for embedded system development and prototyping power control circuits.
It is compatible with the Arduino UNO board, facilitating easy integration for prototyping and development.
The board includes over temperature protection that enables automatic restart, enhancing system reliability under thermal stress conditions.
It supports a PWM frequency of up to 20 kHz, allowing for flexible control over power switching.
The dedicated STATUS pin allows for real-time monitoring of the operating state of the switch, which is useful for diagnostic and control systems.
It features a very low DMOS leakage current, which helps to reduce energy consumption during standby operation.
It employs active freewheeling to enhance overall efficiency and reduce switching losses while operating in PWM mode.
The processor part number for this board is XMC1100.
The country of origin for this evaluation board is India.
It is suitable for applications in industrial electronics, embedded system development, educational Arduino projects, and prototyping power control circuits.
