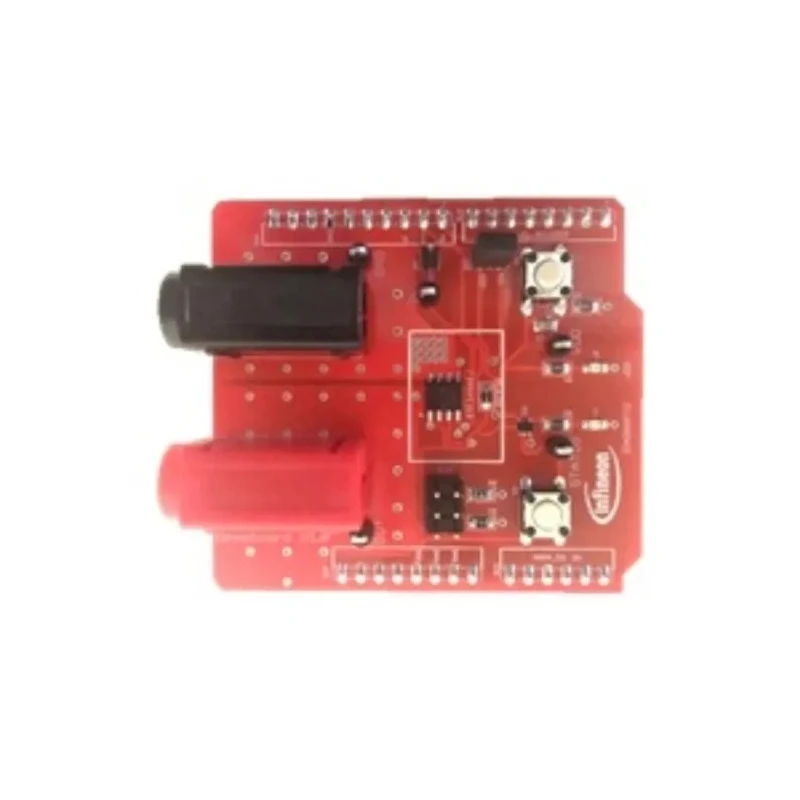

Infineon Arduino Compatible Evaluation Board 12V Medium Ohmic Power Switch with Over Temperature Protection BTF3035EJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BTF3035EJ |
| Kit Contents | User manual, BTF3xxxEJ Shield, Connectors, Software |
| Kit Classification | Evaluation Board |
| Processor Part Number | BTF3xxxEJ |
| Revision | V1.0 |
| Arduino Board Name | Arduino UNO Infineon XMC1100 |
Key Features
- This evaluation board is compatible with Arduino UNO Infineon XMC1100 platform.
- Includes user manual, BTF3xxxEJ shield, connectors, and software in the kit contents.
- Supports active freewheeling and output voltage active clamping for inductive loads.
- Capable of PWM control up to 20kHz with slew rate control for efficient switching.
- Features very low power DMOS leakage current to reduce energy loss in idle state.
- Provides inrush current capability and dedicated status pin for monitoring.
- Revision version V1.0 ensuring up-to-date design and compatibility.
- Designed for industrial and educational applications such as power electronics evaluation.
Product Description
Infineon BTF3035EJ is an Arduino compatible evaluation board operating at 12V designed for medium ohmic power switch applications with comprehensive protective features. This board interfaces with the Arduino UNO Infineon XMC1100 and is ideal for developers testing power switch capabilities including over temperature protection with auto restart.
The board supports PWM modulation with slew rate control up to 20kHz, which is useful for power management and switching in industrial applications.
It includes very low power DMOS devices that minimize leakage current and features active freewheeling as well as output voltage active clamping optimized for inductive load handling.
The evaluation kit contains the user manual, BTF3xxxEJ shield, connectors, and necessary software to enable easy integration and testing. This evaluation board is compatible with Arduino UNO Infineon XMC1100 platform. Includes user manual, BTF3xxxEJ shield, connectors, and software in the kit contents.
Supports active freewheeling and output voltage active clamping for inductive loads. Capable of PWM control up to 20kHz with slew rate control for efficient switching. Features very low power DMOS leakage current to reduce energy loss in idle state.
Provides inrush current capability and dedicated status pin for monitoring. Revision version V1.0 ensuring up-to-date design and compatibility. Designed for industrial and educational applications such as power electronics evaluation.
This evaluation board is suitable for various applications in industrial, laboratory, HVAC, manufacturing, and educational environments where power switch testing and control is required.
Explore a wide range of Arduino compatible boards and kits at EnvMart to find related development tools and evaluation platforms.
Explore more products in our Arduino Compatible Boards & Kits category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board operates at 12V, making it suitable for medium ohmic power switch applications.
It is compatible with the Arduino UNO Infineon XMC1100 platform, allowing for easy integration and testing.
Key features include PWM control up to 20kHz, active freewheeling, output voltage active clamping for inductive loads, and very low power DMOS leakage current.
This model supports PWM control up to 20kHz, which is beneficial for efficient switching in power management applications.
It is designed for industrial and educational applications, specifically for power electronics evaluation and testing power switch capabilities.
Yes, it features a dedicated status pin for monitoring, which aids in system diagnostics and performance evaluation.
It includes over temperature protection with auto restart, enhancing safety during operation.
It supports active freewheeling and output voltage active clamping, which are optimized for handling inductive loads effectively.
The processor part number for this evaluation board is BTF3xxxEJ, which is integral to its functionality.
