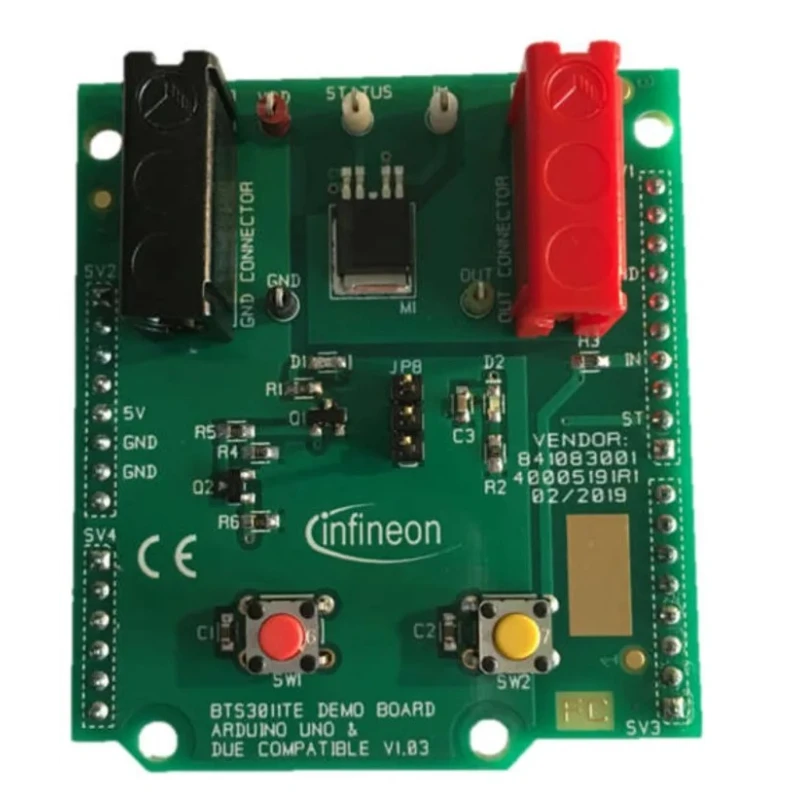

Infineon Arduino Compatible DEMOBOARD with 1-Channel Low-Side Switch , Evaluation Board, 5V/12V Power Compatible BTS3011TE

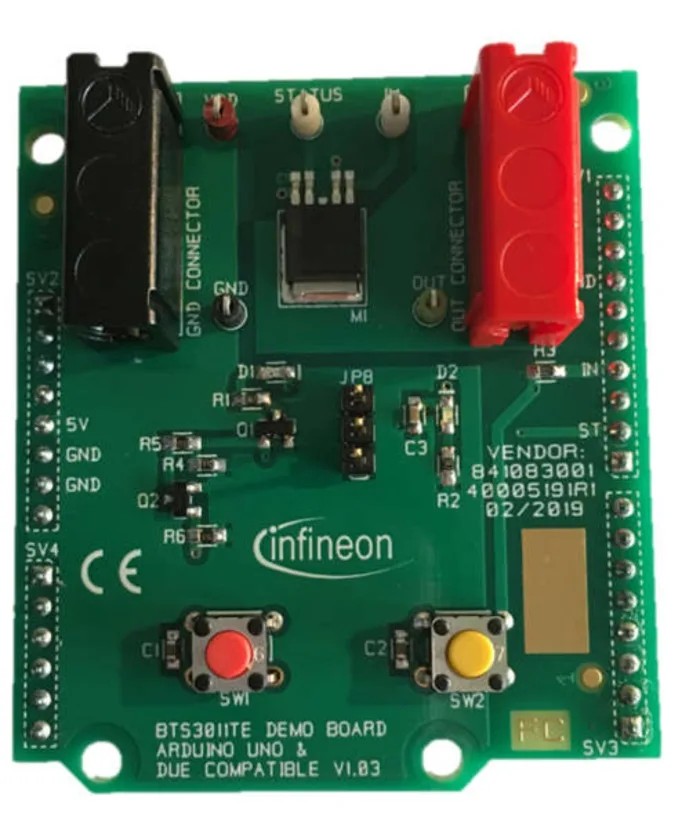

Infineon BTS3011TE DEMOBOARD is an Arduino Compatible Evaluation Board featuring a single-channel low-side switch BTS3011TE. This demoboard is designed for use both as a standalone device and as a pin-compatible addition to the Infineon XMC1100 Boot Kit and Arduino Uno platforms. All device pins are accessible for direct customer measurements, facilitating development and testing.

The demoboard incorporates adjustable slew rate control to optimize switching speed and reduce electromagnetic interference. Enhanced smart current protection allows the device to manage fault conditions effectively, while the dedicated status signal provides real-time monitoring capabilities. Logic inputs are compatible with both 3.3V and 5V levels, expanding integration options.

Electrostatic discharge (ESD) protection is included to increase device robustness in typical industrial and automotive environments. This evaluation board suits 12V low-side load applications, particularly in automotive and industrial contexts requiring reliable driving of resistive, inductive, or capacitive loads. Its design also supports various valve configurations and other control tasks.

This demoboard includes adjustable slew rate control for precise switching. It provides enhanced smart current protection to safeguard connected devices. Design includes a dedicated status signal for operation monitoring.

Compatible with 3.3V and 5V logic inputs for versatile use. Electrostatic discharge (ESD) protection ensures device reliability. Suitable for driving applications requiring high switching speeds. Improves short circuit robustness for enhanced durability.

Compatible with automotive and industrial 12V low-side loads. Supports resistive, inductive, and capacitive load types. Ideal for valve and similar electronic control applications.

This Evaluation Board is classified under RoHS standards for environmental compliance and carries the revision V1.0. The kit contents include options for 5V signal generation and power supply or 12V power supply compatible with Arduino Uno or XMC1100 Boot Kit configurations. This makes it an ideal evaluation platform for developers working in embedded system design, automotive electronics, and industrial automation.

Available for various industrial-grade applications such as prototyping, electronic circuit testing, and educational development platforms in electronics and embedded systems engineering.
