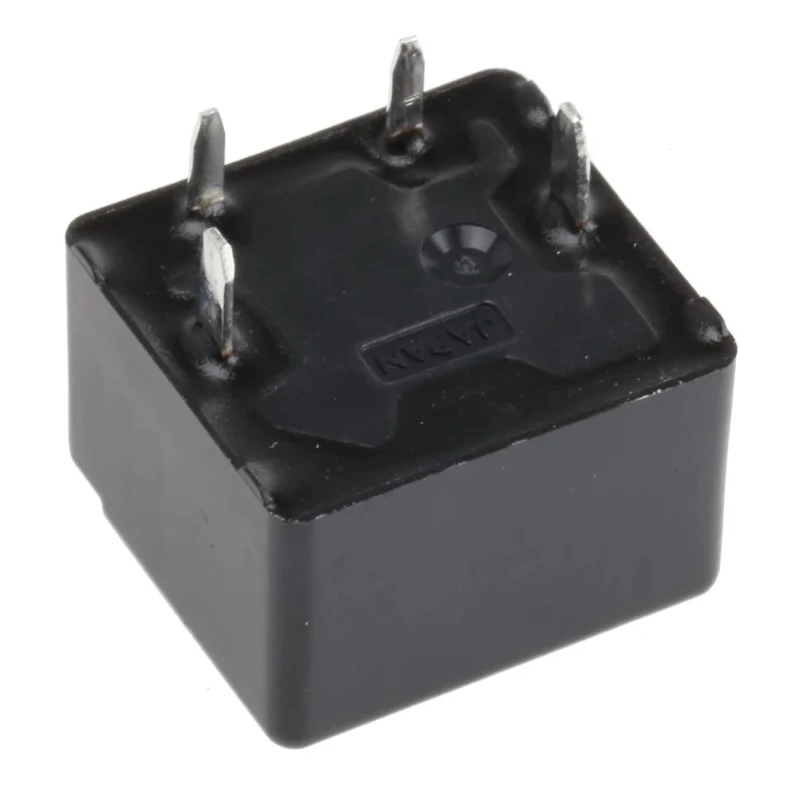

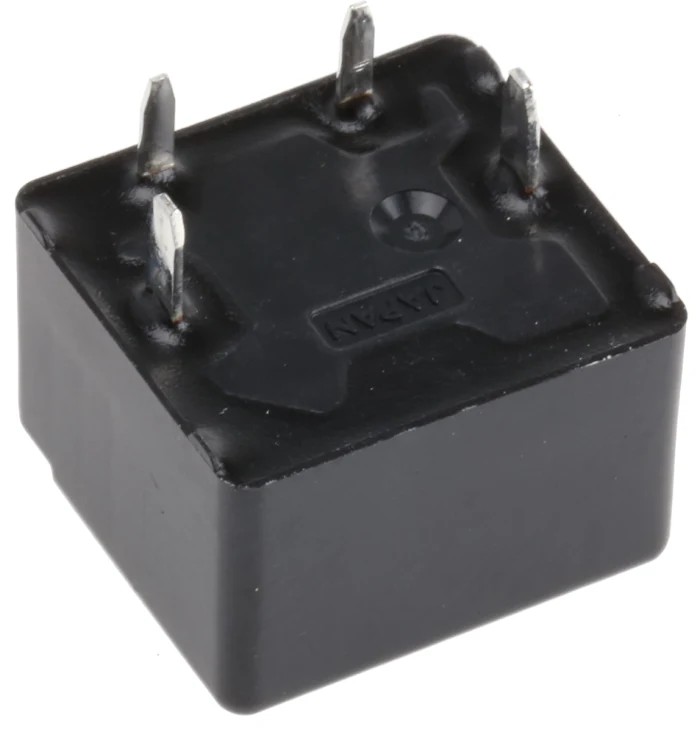

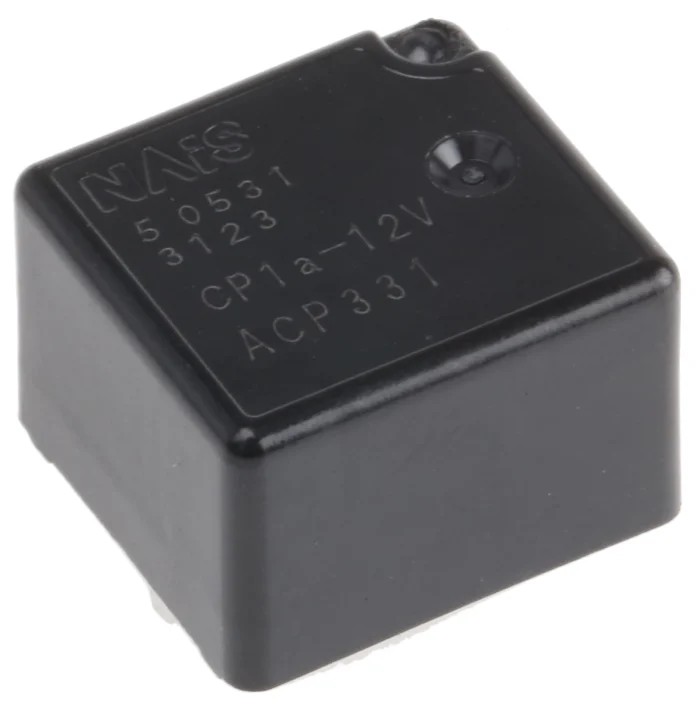

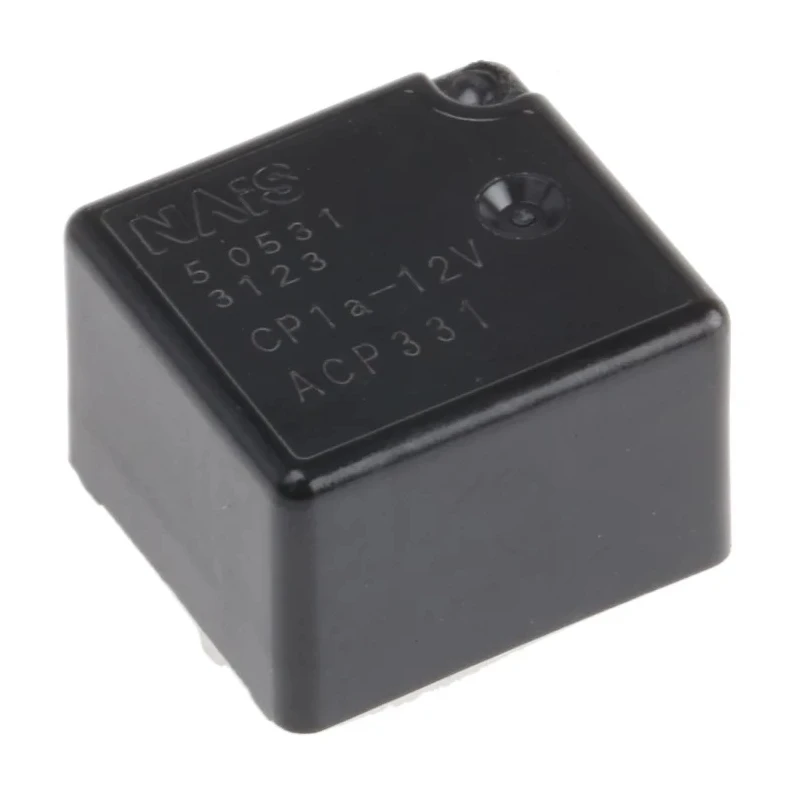

Panasonic PCB Automotive Relay 12V dc Coil 25A Switching Current SPST CP1A-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.5mm |
| Length | 14mm |
| Model | CP1A-12V |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 25A |
| Terminal type | Solder |
| Standards/Approvals | UL, CE, IEC, RoHS, TUV, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 334-0480Brand: PanasonicManufacturers Part No.: CP1A-12V |
| Coil Resistance | 225Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 640mW |
Key Features
- Compact flat design with dimensions 14mm x 13mm x 9.5mm.
- Supports a maximum switching current of 25 amperes.
- Equipped with a solder-type terminal for PCB mounting.
- Operating temperature range from -40°C to 85°C ensures durability.
- Contact material is silver alloy providing reliable conductivity.
- Coil resistance rating of 225 ohms with 640mW power consumption.
- Suitable for automotive systems including defoggers, power windows, ABS, ignition, and heaters.
- Sealed design protects internal components from dust and moisture.
Product Description
Panasonic CP1A-12V PCB Automotive Relay features a 12V dc coil voltage and a single-pole single-throw (SPST) contact configuration suitable for controlling up to 25A switching current in automotive electronic systems.
This compact relay has a flat low profile design with dimensions 14mm length, 13mm width, and 9.5mm height, making it ideal for space-constrained PCB mounting applications using solder terminals. The coil resistance is precisely 225 ohms, consuming 640mW coil power for reliable operation.
Engineered to withstand harsh automotive environments, this relay operates within the temperature range of -40°C to +85°C. Its contact material of silver alloy ensures excellent electrical conductivity and long service life. The device meets stringent industrial standards such as UL, CE, IEC, RoHS, TUV, and VDE.
Common automotive applications include control of defoggers, ignition systems, heaters, power windows, ABS modules, and various other vehicle accessories that require compact and efficient switching solutions. Its sealed construction offers protection against dust and moisture ingress, enhancing its durability in automotive environments.
Compact flat design with dimensions 14mm x 13mm x 9.5mm. Maximum switching current of 25 amperes. PCB solder terminal mounting type for easy installation. Operating temperature range from -40°C to 85°C. Silver alloy contact material for superior conductivity.
225Ω coil resistance with 640mW coil power consumption. Sealed construction to protect internal contacts. Complies with UL, CE, IEC, RoHS, TUV, and VDE standards. Ideal for automotive systems such as defoggers, ABS, heaters, and power windows.
Explore more Automotive Relays and power relays at EnvMart to meet your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 25 amperes.
This model has dimensions of 14mm in length, 13mm in width, and 9.5mm in height.
The relay operates at a coil voltage of 12V dc and has a power consumption of 640mW.
It operates within a temperature range of -40°C to +85°C.
This relay uses a PCB solder terminal for mounting.
The contact configuration is single-pole single-throw (SPST).
The contact material is silver alloy, which provides reliable conductivity.
It complies with UL, CE, IEC, RoHS, TUV, and VDE standards.
This relay is suitable for applications such as defoggers, power windows, ABS systems, ignition, and heaters.
The coil resistance is rated at 225 ohms.
The relay has a switching AC voltage rating of 400V ac.
The relay is manufactured in Japan.
