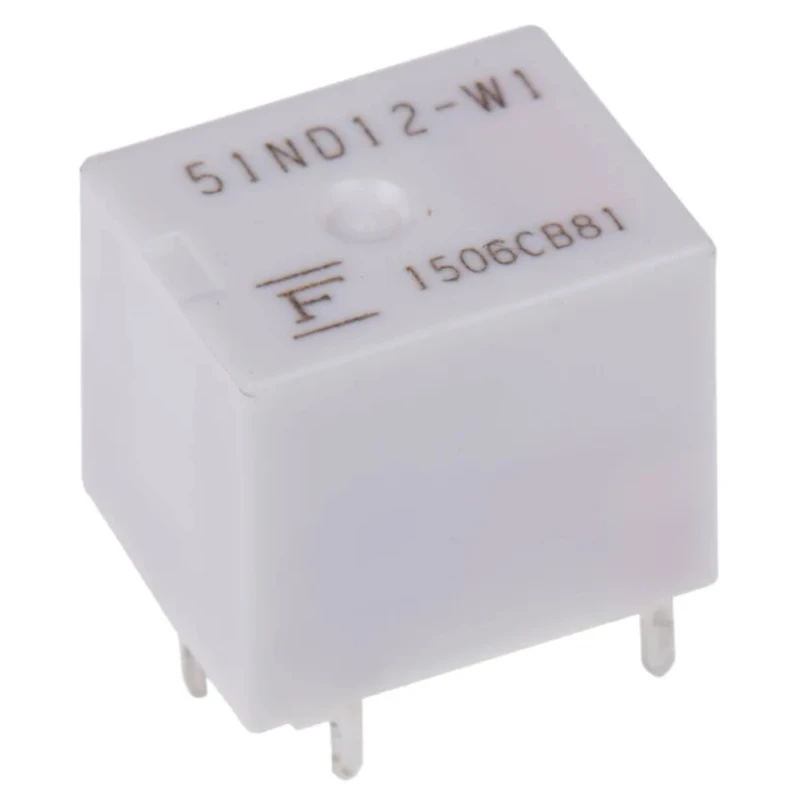

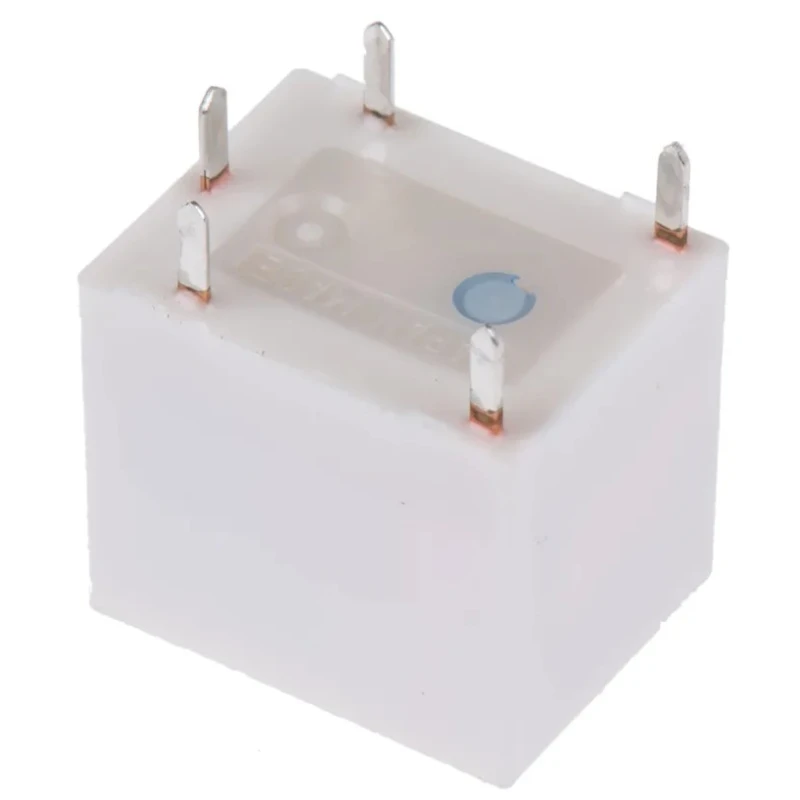

Fujitsu PCB Automotive Relay 12V Coil Voltage 25A Switching Current SPDT FBR51ND12-W1

Fujitsu FBR51ND12-W1 PCB Automotive Relay is designed for automotive applications requiring reliable power switching with a 12V coil voltage and a 25A switching current. It features an SPDT contact configuration and PCB mount type suitable for printed circuit board assemblies.

This relay utilizes a silver alloy contact material to ensure high conductivity and durable contact performance. The coil power consumption is 600mW, with a coil resistance of 240Ω, enabling efficient operation within demanding automotive environments.

The device operates effectively in extreme temperature conditions from -40°C up to 85°C, providing dependable switching even under harsh environmental stresses. Its compact size, measuring 15.5mm in length and 13.7mm in height, allows integration into space-constrained electronic assemblies.

The FBR51 series automotive relay supports a high current capacity with a contact rating of 25A at 14V DC under motor-free load conditions, and can handle 35A for 10 minutes or 30A for 1 hour, meeting high power switching demands.

This relay ensures a minimum electrical life of 200,000 operations, offering extended reliability for automotive and industrial automation systems. Its PCB terminals and mount type facilitate easy mounting and secure electrical connections on printed circuit boards.

Operates at a coil power of 600mW for efficient performance. Constructed with silver alloy contact material for durability. PCB terminal type with PCB mounting for secure installation. Operates reliably within a temperature range of -40°C to 85°C.

Compact dimensions: 15.5mm length and 13.7mm height. Series FBR51 offering high-quality automotive relay solutions. Electrical life minimum of 200,000 operations ensuring longevity. Contact rating supports 25A at 14V DC for motor-free load applications.

Suitable for automotive industry and related electronic applications.

This automotive relay is ideal for use in automotive electrical systems, industrial control systems, and other applications requiring reliable high current power switching on PCB assemblies. Browse more Automotive Relays and contactors from Fujitsu and other brands on EnvMart for comprehensive electrical component solutions.
