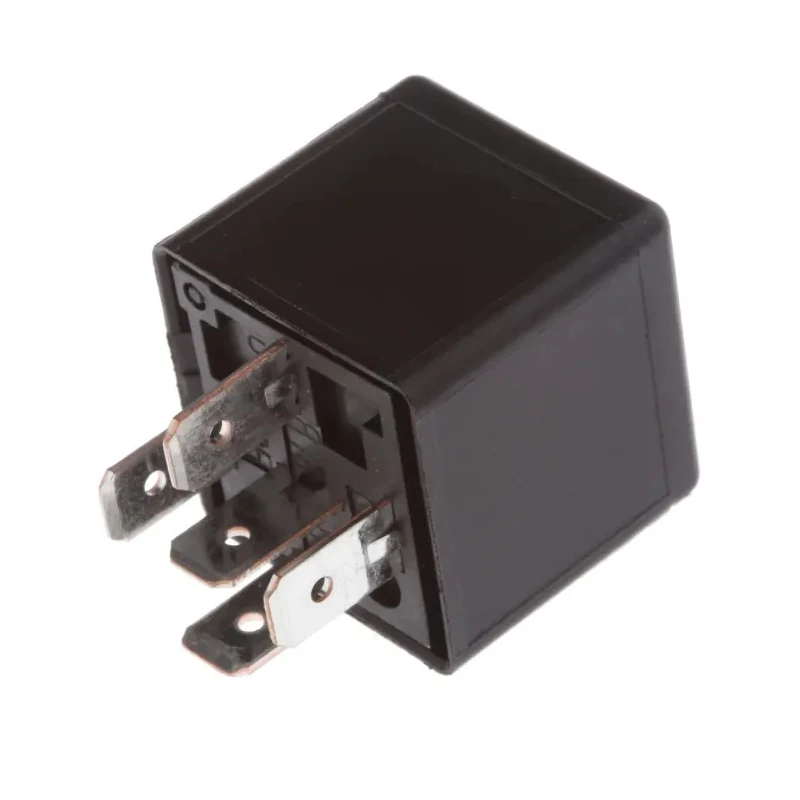

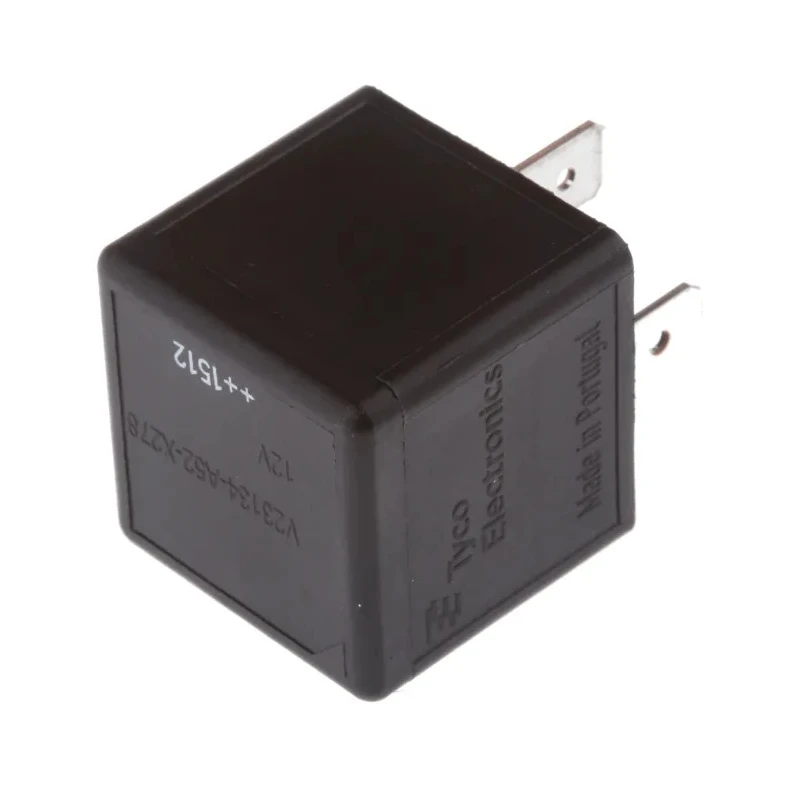

TE Connectivity Automotive Relay 12V DC Coil Voltage 40A Switching Current SPDT V23134A0052X278 4-1393302-1
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 24.9mm |
| Length | 25.9mm |
| Model | V23134A0052X278 4-1393302-1 |
| Depth | 25.9mm |
| Contact Material | Silver Alloy |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Designed for automotive applications requiring reliable switching.
- Features quick connect terminals for efficient installation.
- Coil power rating of 1.6 watts ensures efficient operation.
- Operates in temperature range from -40°C to 125°C for durability.
- Compact dimensions of 25.9mm x 24.9mm x 25.9mm fit tight automotive spaces.
- Silver alloy contacts provide robust electrical conductivity and durability.
- Provides 500Vrms isolation between coil and contacts for safety.
- Non-latching (monostable) design ideal for ignition lock and lamp load control.
Product Description
TE Connectivity V23134A0052X278 4-1393302-1 automotive relay is a high-performance relay designed for use in demanding automotive electrical systems. It features a 12V DC coil voltage and a robust 40A switching current capability, making it suitable for critical applications requiring dependable current switching.
The relay includes a Single Pole Double Throw (SPDT) contact configuration with quick connect terminals, facilitating easy integration in vehicle electrical circuits. With a coil power consumption of 1.6W and a coil resistance of 90 ohms, it offers efficient energy use within electrical systems.
Its compact form factor with dimensions approximately 25.9mm in length, 24.9mm height, and 25.9mm depth allows for installation in confined spaces often found in automotive environments. The relay is constructed with silver alloy contacts to ensure high conductivity and extended lifespan under automotive load conditions.
This relay operates reliably under a broad temperature range of -40°C to 125°C and features 500Vrms isolation between coil and contact, enhancing safety and preventing interference. It belongs to the F4 series of mini ISO automotive relays known for dust protection rated at IP54 and versatile configurations.
Typical applications include ignition lock systems, headlamp lamp loads, exhaust emission control, ABS braking systems, fuel pumps, electric power steering modules, wiper controls, car alarms, and blower fan controls. Its integrated design and proven materials make it suitable for automotive manufacturing, maintenance, and repair.
Designed for automotive applications requiring reliable switching. Features quick connect terminals for efficient installation. Coil power rating of 1.6 watts ensures efficient operation. Operates in temperature range from -40°C to 125°C for durability.
Compact dimensions of 25.9mm x 24.9mm x 25.9mm fit tight automotive spaces. Silver alloy contacts provide robust electrical conductivity and durability. Provides 500Vrms isolation between coil and contacts for safety. Non-latching (monostable) design ideal for ignition lock and lamp load control.
Applicable in ABS, fuel pump, electric power steering, wiper control, car alarm, and blower fans. Explore the TE Connectivity range of Automotive Relays at EnvMart for advanced automotive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It has a maximum switching current capability of 40A.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil power consumption is rated at 1.6 watts.
The relay has compact dimensions of approximately 25.9mm in length, 24.9mm in height, and 25.9mm in depth.
It operates reliably within a temperature range of -40°C to 125°C.
It features quick connect terminals for efficient installation.
The contacts are made of silver alloy, providing robust electrical conductivity.
There is a 500Vrms isolation between the coil and contacts for safety.
This relay is suitable for applications such as ignition lock systems, headlamp loads, fuel pumps, and car alarms.
It belongs to the F4 series of mini ISO automotive relays.
The relay is manufactured in Portugal.
