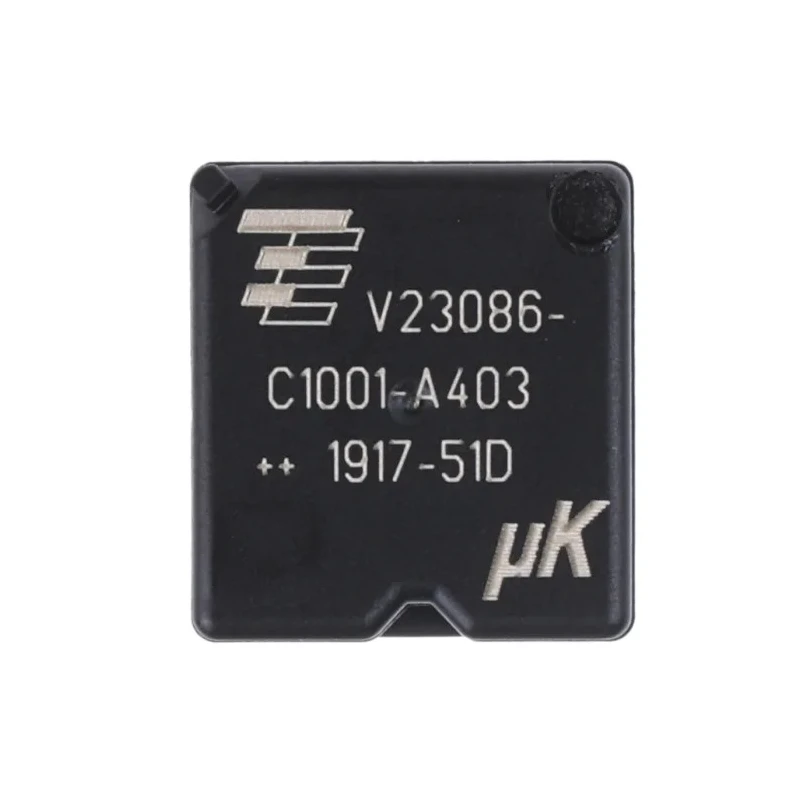

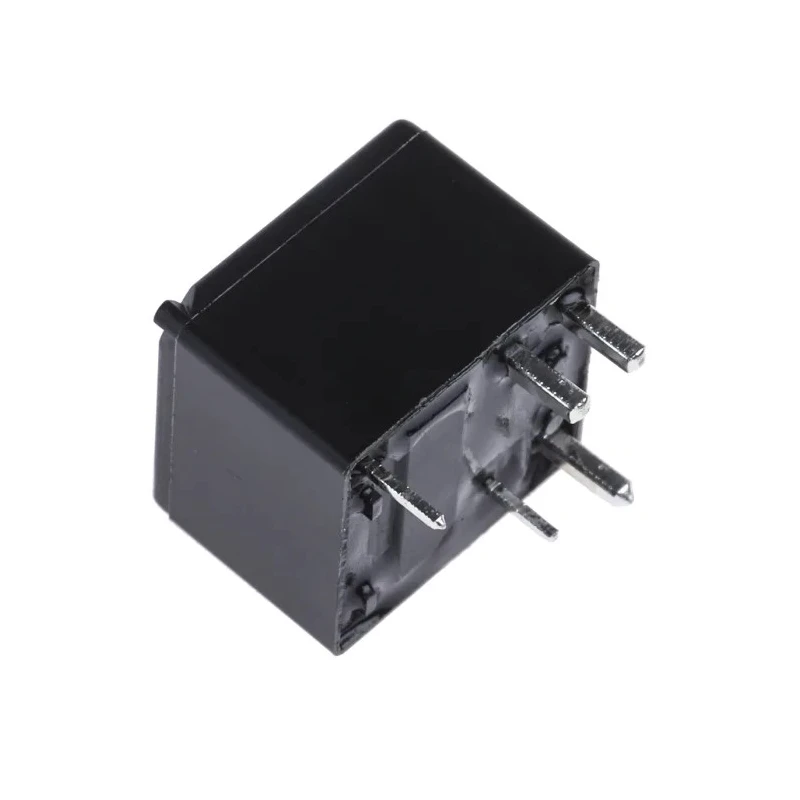

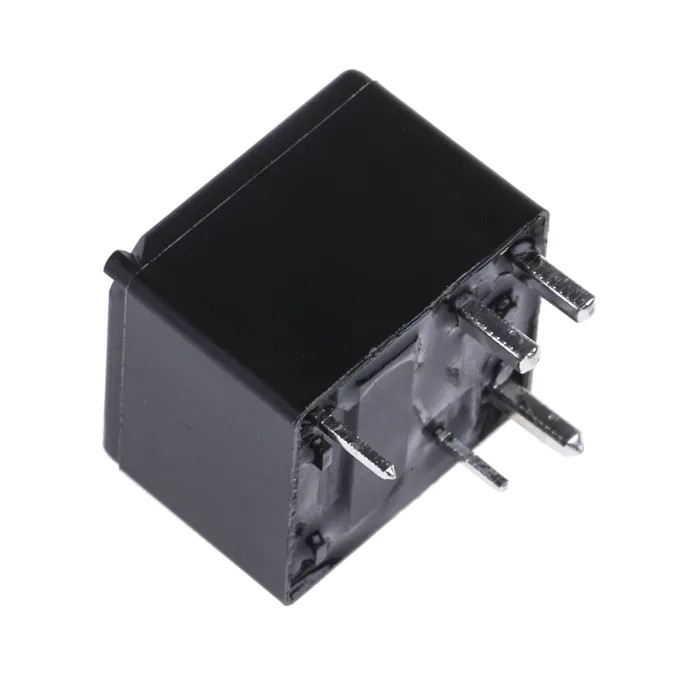

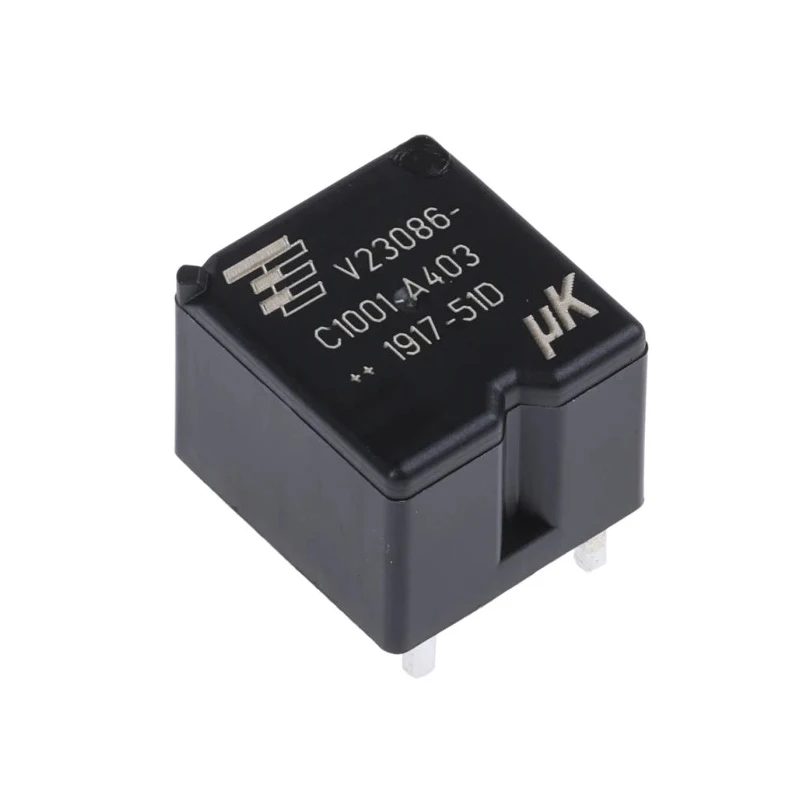

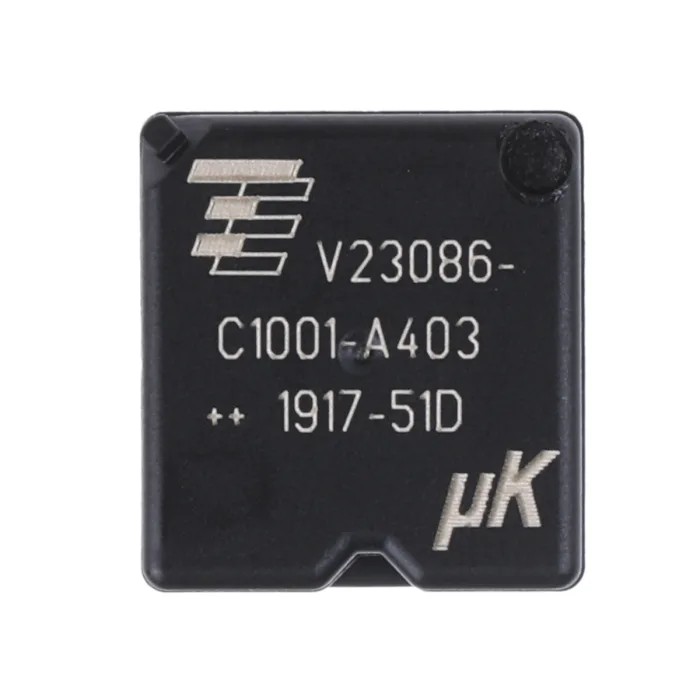

TE Connectivity PCB Automotive Relay 12V DC Coil Voltage 25A Switching Current SPDT V23086C1001A403 1393280-6
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Dimensions | W12 x D12.9 x H9.9mm |
| Height | 9.9mm |
| Length | 12.9mm |
| Model | V23086C1001A403 1393280-6 |
| Depth | 12mm |
| Mount Type | PCB |
| Contact Material | Silver |
| Series | K |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 1 |
| Coil Resistance | 254Ω |
Key Features
- Designed for PCB mounting with solder terminal type.
- Operates reliably between -40°C and 105°C temperature range.
- Silver contact material ensures excellent conductivity and durability.
- Single pole double throw (SPDT) configuration suitable for versatile switching applications.
- Micro K Series relay designed for automotive electrical systems.
- Typical uses include lock control circuits, seat adjustment motors, window defoggers, and starter solenoid switches.
Product Description
TE Connectivity V23086C1001A403 1393280-6 PCB Automotive Relay is a high-quality Micro K Series relay engineered for automotive electrical applications. It operates on a 12V DC coil voltage and supports a switching current of up to 25A with a single pole double throw (SPDT) contact configuration. This relay is designed for PCB mounting and uses solder terminal types for easy integration.
The relay offers robust operation within a wide temperature range from -40°C to 105°C, ensuring reliable performance in harsh environments. Its compact size, measuring 12.9mm in length, 9.9mm in height, and 12mm in depth, allows for space-efficient designs.
The contacts are made of silver material, providing excellent electrical conductivity and durability. The Micro K series construction supports continuous current of up to 30A and is well-suited for automotive use cases such as lock control circuits, seat adjustment motors, window defoggers, and starter solenoid switches.
This PCB automotive relay delivers precise switching control essential for automotive electrical and electronic systems. Its solder-type terminals facilitate integration into printed circuit boards, offering secure and stable electrical connections for enhanced system reliability.
Designed for PCB mounting with solder terminals. Wide operating temperature range from -40°C to 105°C. Compact dimensions optimize space utilization. Silver contact material for superior performance. Single pole double throw (SPDT) contact configuration.
Suitable for automotive lock control, seat motors, and defoggers. Part of the TE Connectivity Micro K series for automotive relays.
This product is manufactured in Portugal and maintains the high-quality standards expected in automotive components. Ideal for industrial, laboratory, manufacturing, and automotive electrical control systems. Explore more Automotive Relays and electrical components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates on a 12V DC coil voltage.
It supports a maximum switching current of up to 25A.
This relay features a single pole double throw (SPDT) contact configuration.
It operates reliably within a temperature range of -40°C to 105°C.
The relay measures 12.9mm in length, 9.9mm in height, and 12mm in depth.
It has solder-type terminals designed for PCB mounting.
The contacts are made of silver material, which ensures excellent conductivity.
This relay is part of the TE Connectivity Micro K series.
It is suitable for automotive applications such as lock control circuits, seat adjustment motors, window defoggers, and starter solenoid switches.
The coil resistance is 254Ω.
This product is manufactured in Portugal.
Its design and materials, including silver contacts and a wide operating temperature range, contribute to its reliable performance in automotive electrical systems.
