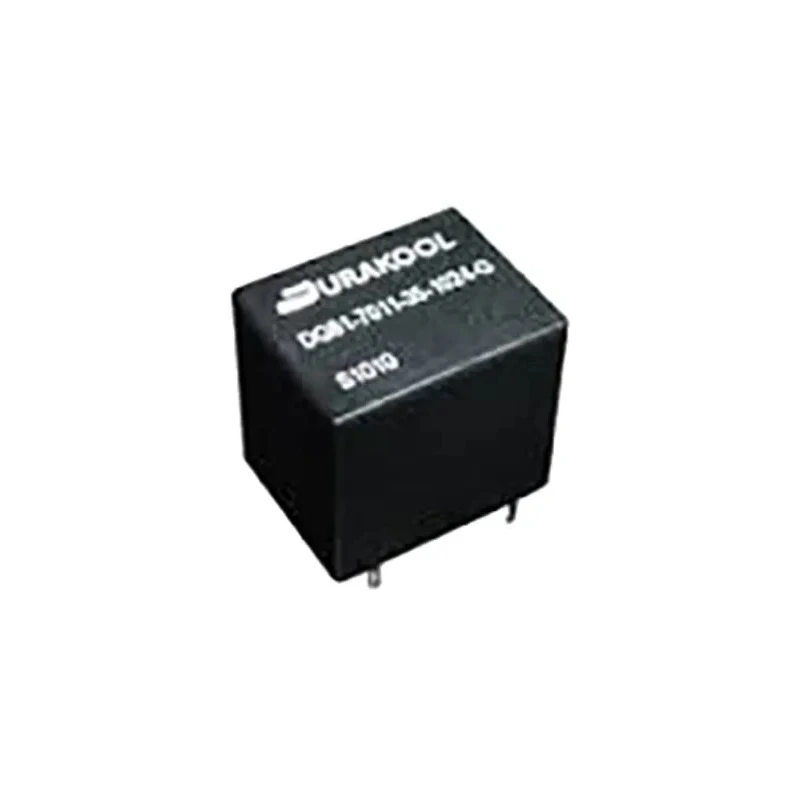

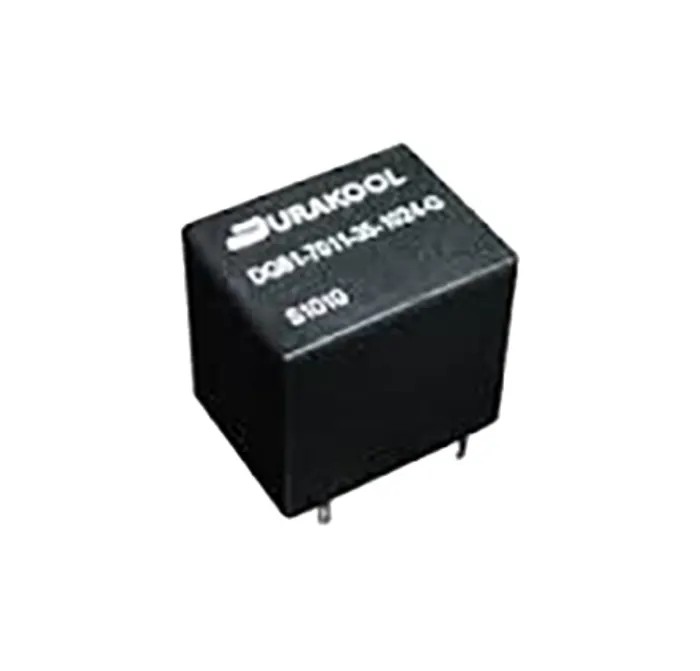

Durakool PCB Automotive Relay 12V DC Coil Voltage 60A Switching Current SPDT DG81-7011-35-1012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 13.8mm |
| Length | 15.7mm |
| Model | DG81-7011-35-1012 |
| Depth | 12.3mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG81 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Coil Resistance | 180Ω |
| Coil Power | 800mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- The relay coil operates at 12V DC with a power rating of 800mW.
- It has a coil resistance of 180 ohms ensuring efficient coil operation.
- SPDT (Single Pole Double Throw) contact configuration enables versatile switching.
- Single pole design with PCB terminal mount type suits compact PCB installations.
- Operational temperature range from -30°C to 85°C supports harsh environments.

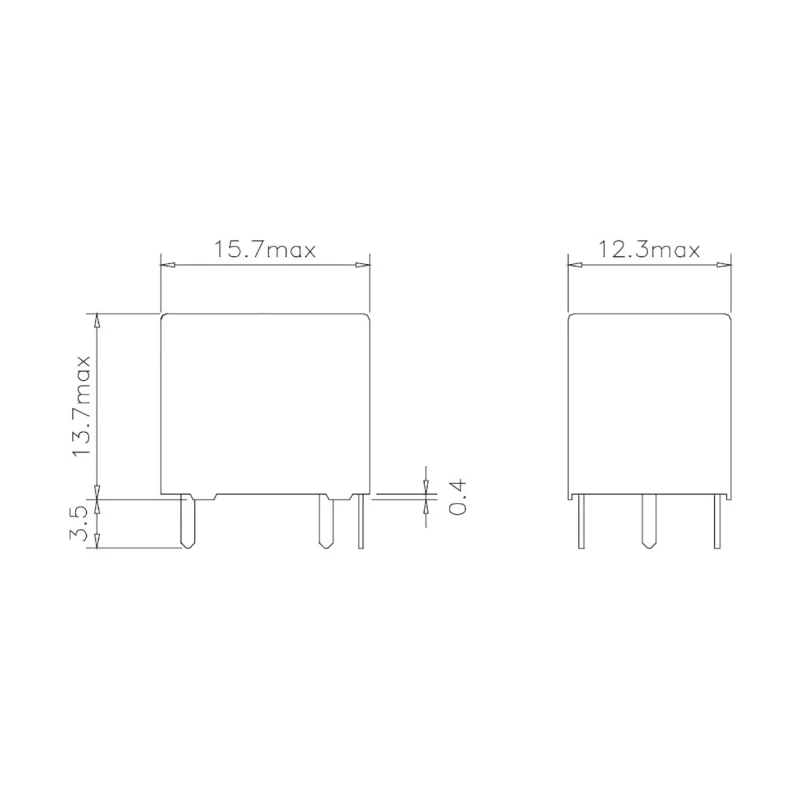

- Compact dimensions of 15.7mm length, 13.8mm height, and 12.3mm depth.
- The contact material uses Silver Tin Oxide Indium Oxide for durability and conductivity.
- High insulation of 500Vrms between coil and contacts for electrical safety.
Product Description
Durakool DG81-7011-35-1012 is a high-performance PCB Automotive Relay with a coil voltage of 12V DC and a maximum switching current of 60A, designed for reliable automotive and industrial electrical applications. This relay features a SPDT (Single Pole Double Throw) contact configuration which provides flexible switching options in compact control circuits.
This automotive relay incorporates a coil power rating of 800mW and a coil resistance of 180 ohms, optimized for efficient operation and minimal power consumption. The relay is engineered for a wide operating temperature range from -30°C up to 85°C, making it suitable for demanding environments and varying climatic conditions.
Measuring 15.7mm in length, 13.8mm in height, and 12.3mm in depth, the compact size supports seamless integration on printed circuit boards (PCB) with PCB terminal mounting. Contact materials consist of silver tin oxide and indium oxide, enhancing conductivity and providing high reliability and resistance to wear.
The isolation between the coil and contact is rated at 500Vrms, providing safety and preventing electrical interference in sensitive electronic systems. The product is manufactured in China under the DG81 series, known for miniature twin power relays with high endurance and non-latching coil design.
Durakool automotive relays are ideal for controlling DC motors, automotive electrical circuits, and other high current switching applications where durability and efficiency are critical. Their compact form factor and robust build make them suitable for automotive industry, manufacturing, industrial automation, and commercial electrical system use.
The relay coil operates at 12V DC with a power rating of 800mW. Coil resistance of 180 ohms for optimal performance. SPDT contact configuration for versatile switching. Single pole design with a PCB terminal for easy mounting.
Wide operating temperature range from -30°C to 85°C. Compact dimensions: 15.7mm Length, 13.8mm Height, 12.3mm Depth. Durable contacts made from Silver Tin Oxide Indium Oxide. Isolation between coil and contact rated at 500Vrms.
Non-latching coil with long expected life cycle. Suitable for automotive and industrial relay control applications. Explore more Automotive Relays and related electrical components on EnvMart for your industrial and commercial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It has a maximum switching current of 60A.
This relay features a SPDT (Single Pole Double Throw) contact configuration, allowing for versatile switching options.
The dimensions are 15.7mm in length, 13.8mm in height, and 12.3mm in depth.
It can operate within a temperature range from -30°C to 85°C.
The coil resistance is 180 ohms, which ensures efficient coil operation.
The contact material consists of Silver Tin Oxide Indium Oxide, enhancing conductivity and durability.
It features a PCB terminal mount type, suitable for compact PCB installations.
The coil has a power rating of 800mW, optimized for efficient operation.
The isolation between the coil and contacts is rated at 500Vrms, ensuring electrical safety.
It is suitable for controlling DC motors, automotive electrical circuits, and other high current switching applications.
The relay is manufactured in China.
