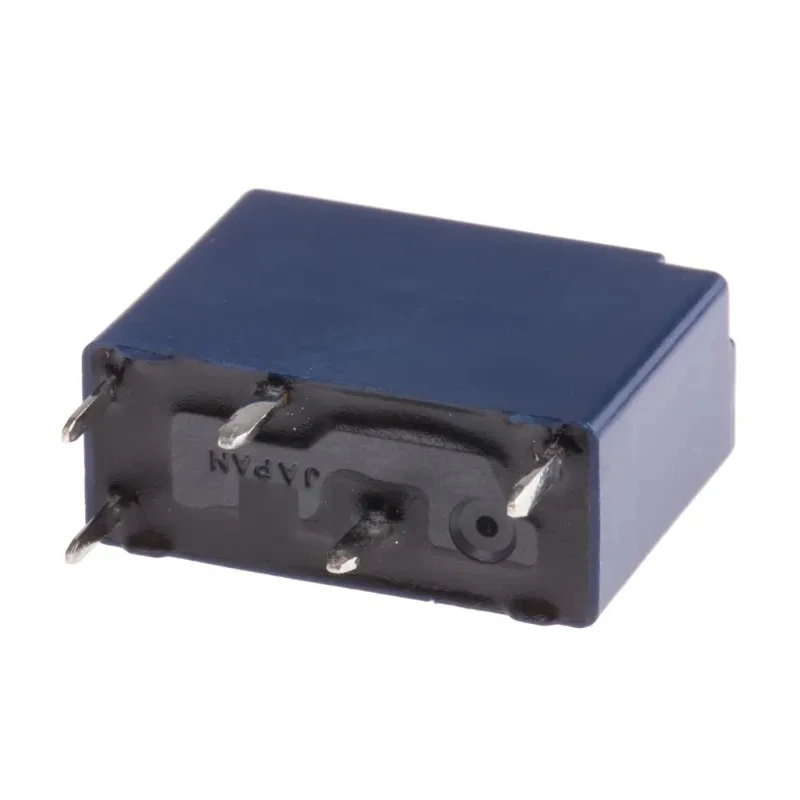

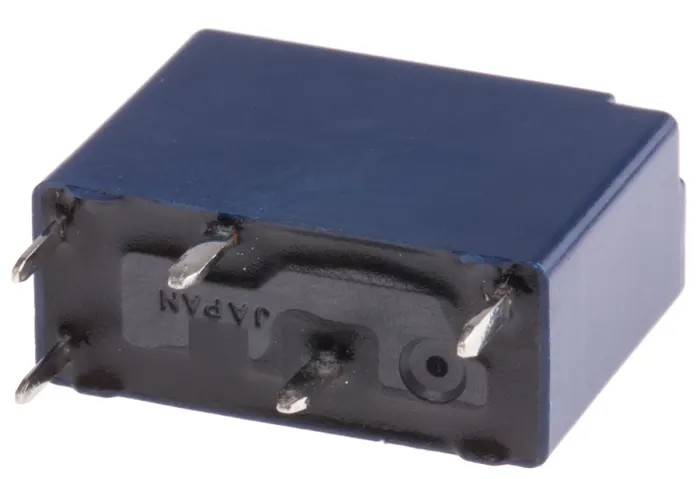

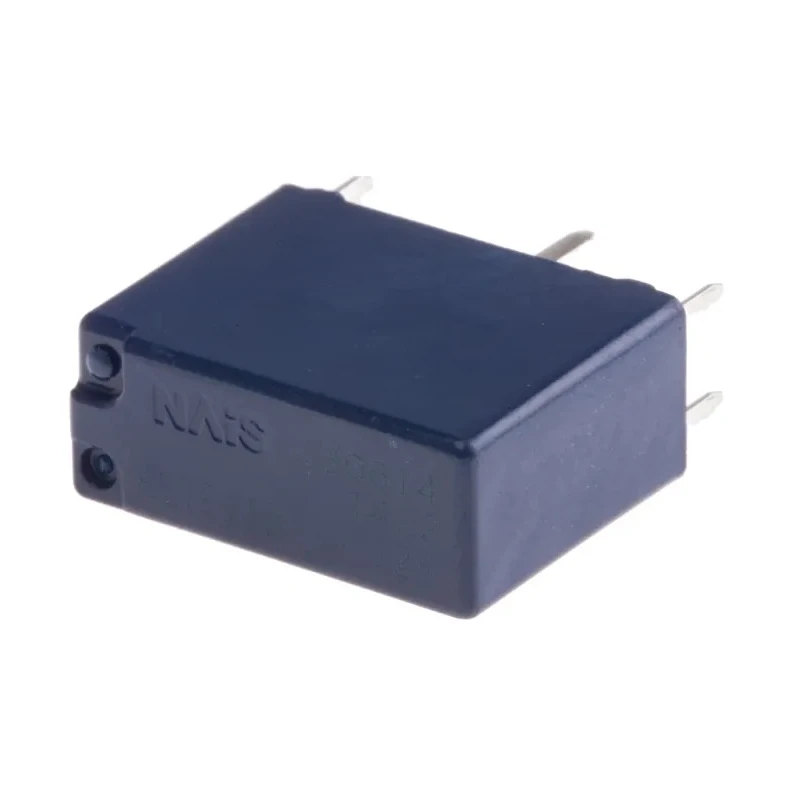

Panasonic Automotive Relay PCB Mount 12V DC Coil Voltage 30A Switching Current SPDT ACTP112
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.5mm |
| Length | 17.4mm |
| Model | ACTP112 |
| Depth | 14mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ACTP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Number of Poles | 1 |
| Coil Resistance | 144Ω |
| Coil Power | 1W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay features a Single Pole Double Throw (SPDT) contact configuration.
- It supports a maximum switching current of 30A with a nominal coil power of 1W.
- The relay is designed for PCB mounting with through hole terminal type for secure installation.
- Operating temperature range is from -40°C to 85°C ensuring reliability under harsh conditions.
- It offers sealed construction for silent operation and protection against contaminants.
- The compact design makes it suitable for automotive applications including power windows, powered seats, and door locks.
- Contact material is silver alloy ensuring excellent conductivity and durability.
- Isolation voltage between coil and contact is 500Vrms enhancing circuit safety.
Product Description
Panasonic ACTP112 Automotive Relay is a PCB-mounted relay designed for automotive electrical control systems. Featuring a 12V DC coil voltage and Single Pole Double Throw (SPDT) contacts, it provides reliable switching performance with a nominal coil power of 1 watt and a maximum switching current rating of 30 amps.
Its compact dimensions (17.4mm length, 13.5mm height, 14mm depth) enable integration in space-constrained automotive circuit boards. The through hole terminal type ensures robust mounting and electrical connections.
The relay operates silently due to its sealed construction protecting internal contacts from dust and debris. It functions effectively within a wide temperature range of -40°C to 85°C, suitable for automotive environments.
Key features of this relay include silver alloy contacts for low resistance and durability, and a coil to contact isolation voltage of 500 Vrms ensuring electrical safety. These properties make it ideal for use in automotive subsystems such as power windows, power seats, auto door locks, slide door closers, and power sunroofs.
This relay is designed and manufactured in Japan, reflecting high quality and reliability. Its compact and sealed design guarantees silent operation and longevity under rigorous automotive conditions. High switching current capacity supports heavy-duty automotive switching needs.
Suitable for PCB mounting with standard through hole terminals, simplifying assembly. The relay's operating temperature range supports performance in extreme climates. Silver alloy contacts provide consistent conductivity and wear resistance.
Isolation voltage rating enhances protection of electronic circuits from transient voltages. This Panasonic ACTP112 Automotive Relay is a reliable choice for automotive electrical system designers seeking quality, durability, and compactness in relay components.
Browse the EnvMart Electronics & Electricals category for more Automotive Relays and related components from leading manufacturers like Panasonic.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for the Panasonic ACTP112 relay is 30A.
This model operates with a coil voltage of 12V DC.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay has dimensions of 17.4mm in length, 13.5mm in height, and 14mm in depth.
The operating temperature range is from -40°C to 85°C.
It uses a through hole terminal type for secure installation.
The isolation voltage between the coil and contact is 500Vrms.
The contacts are made of silver alloy, which ensures excellent conductivity.
The nominal coil power is 1 watt.
This relay is suitable for automotive applications such as power windows, powered seats, and door locks.
It is manufactured in Japan, reflecting high quality and reliability.
The coil resistance is 144Ω.
