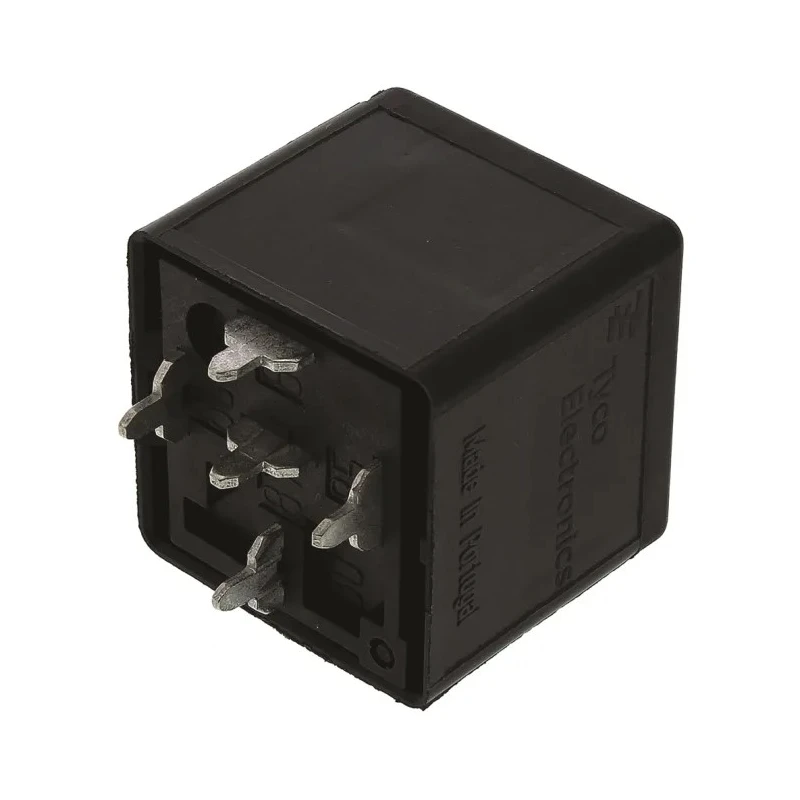

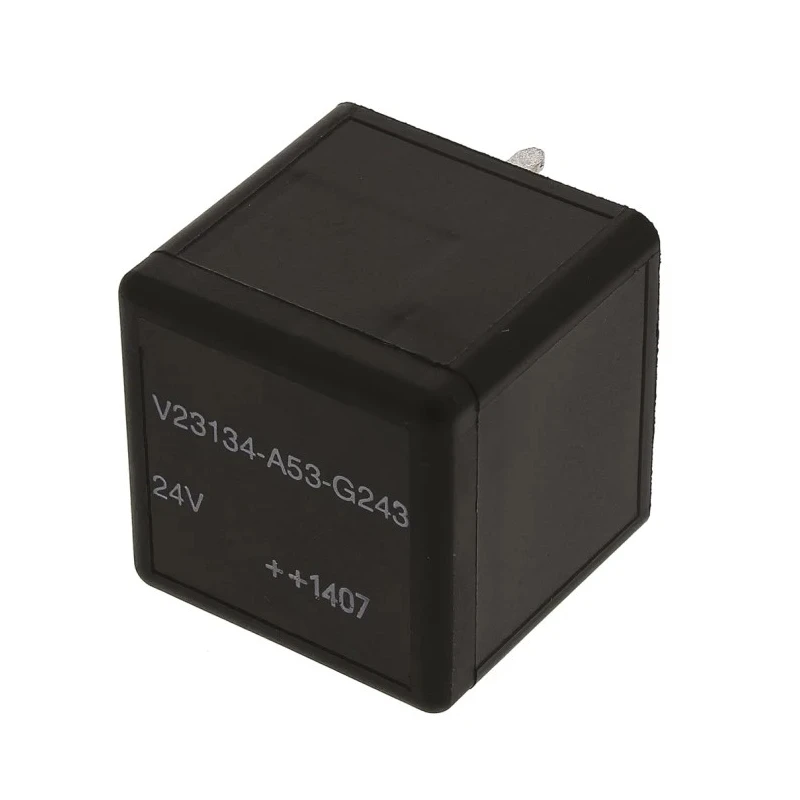

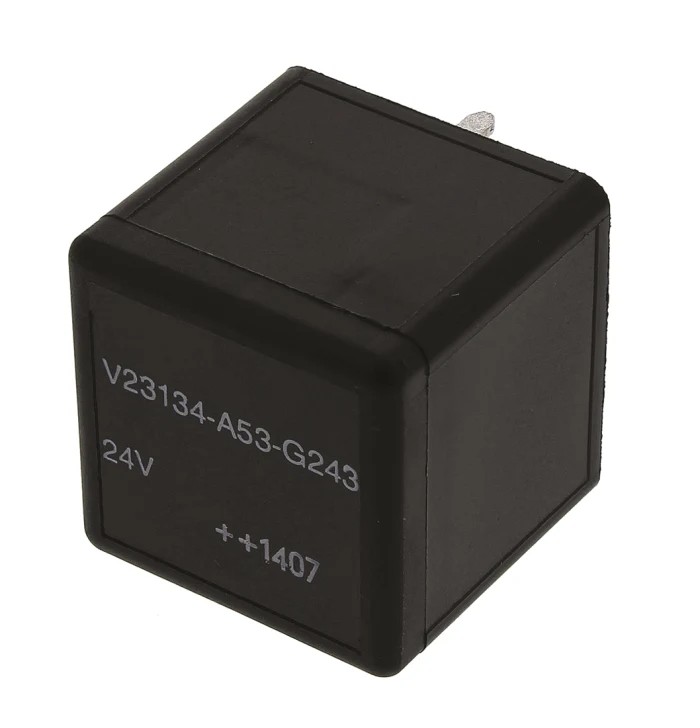

TE Connectivity PCB Automotive Relay 24V DC Coil Voltage 1.6W Power 40A Switching Current SPDT V23134A0053G243
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 27.4mm |
| Length | 25.9mm |
| Model | V23134A0053G243 |
| Depth | 25.9mm |
| Mount Type | PCB |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Number of Poles | 1 |
| Coil Resistance | 324Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
Key Features
- Features a 1.6W coil power with 324Ω coil resistance for efficient operation.
- Single pole double throw (SPDT) contact configuration for versatile switching.
- Robust silver contact material ensures reliable conductivity.
- Designed for PCB mounting with through hole terminal type.
- Operates efficiently in temperatures from -40°C to 125°C.
- 500V isolation voltage between coil and contact for safety.
- F4 series relay offering durability with IP54 dust protection.
- Applications include ignition lock, headlamp control, exhaust emission, ABS, fuel pump, electric power steering, wiper control, car alarm, and blower fans.
Product Description
TE Connectivity V23134A0053G243 PCB Automotive Relay is a premium quality F4 series Mini ISO automotive relay designed for efficient electrical switching in various automotive systems. It operates with a 24V DC coil voltage and can handle a high switching current of 40A, making it suitable for demanding automotive applications.
This relay features a coil power of 1.6W and a coil resistance of 324Ω, providing reliable electromagnetic operation. Its silver contact material ensures excellent conductivity and long service life.
The relay has a single pole double throw (SPDT) contact configuration and is designed for PCB mounting with through hole terminals, facilitating easy integration into circuit boards. It meets industrial standards with a coil-to-contact isolation of 500V for electrical safety.
Designed to operate in harsh automotive environments, it withstands temperatures ranging from -40°C to 125°C. Its compact size of 25.9mm length, 27.4mm height, and 25.9mm depth allows installation in limited spaces without sacrificing performance.
The TE Connectivity F4 series relays are protected against dust ingress to the IP54 standard, ensuring durability for automotive electrical systems. This relay is ideal for use in ignition lock systems, headlamp load control, exhaust emission control, ABS systems, fuel pumps, electric power steering, wiper controls, car alarm systems, and blower fans.
Features a 1.6W coil power with 324Ω coil resistance for efficient operation. Single pole double throw (SPDT) contact configuration for versatile switching. Robust silver contact material ensures reliable conductivity. Designed for PCB mounting with through hole terminal type.
Operates efficiently in temperatures from -40°C to 125°C. Compact dimensions: Length 25.9mm, Height 27.4mm, Depth 25.9mm for space saving installation. 500V isolation voltage between coil and contact for safety. F4 series relay offering durability with IP54 dust protection.
Applications include ignition lock, headlamp control, exhaust emission, ABS, fuel pump, electric power steering, wiper control, car alarm, and blower fans.
This relay is essential for automotive electrical and electronic systems demanding reliability and compact design. Explore EnvMart's catalogue for more Automotive Relays and electrical automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 24V DC coil voltage and has a coil power of 1.6W.
It can handle a maximum switching current of 40A.
This model features a single pole double throw (SPDT) contact configuration.
The relay has dimensions of 25.9mm in length, 27.4mm in height, and 25.9mm in depth.
The coil resistance is 324Ω.
It operates efficiently in temperatures ranging from -40°C to 125°C.
This relay is designed for PCB mounting with through hole terminals.
The isolation voltage between the coil and contact is 500V.
The contacts are made of silver, ensuring reliable conductivity.
It has an IP54 dust protection rating, ensuring durability in automotive environments.
This relay is suitable for applications such as ignition lock, headlamp control, ABS, fuel pump, and electric power steering.
This relay belongs to the F4 series of automotive relays.
