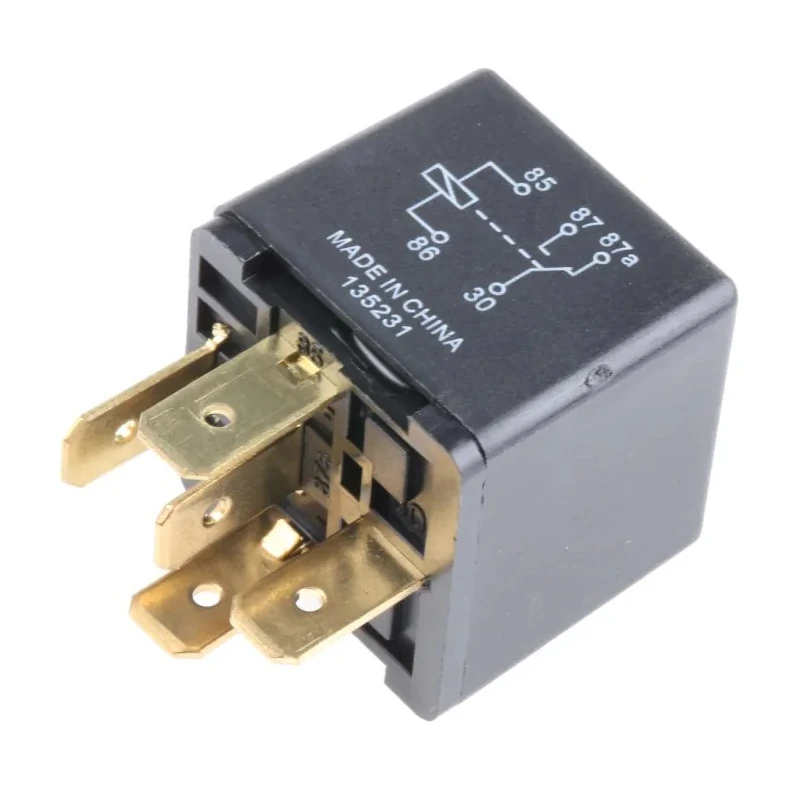

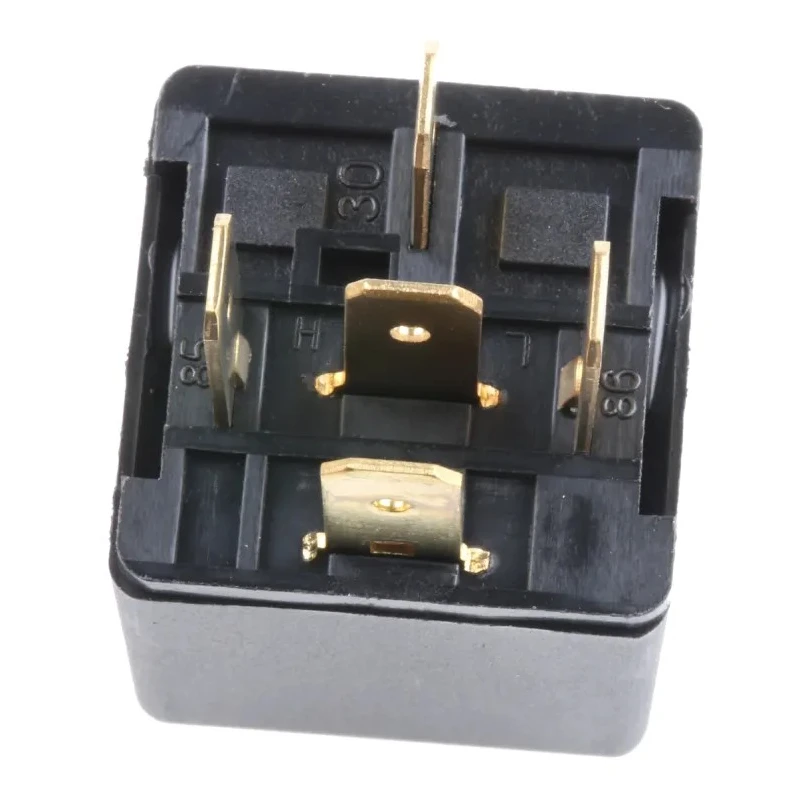

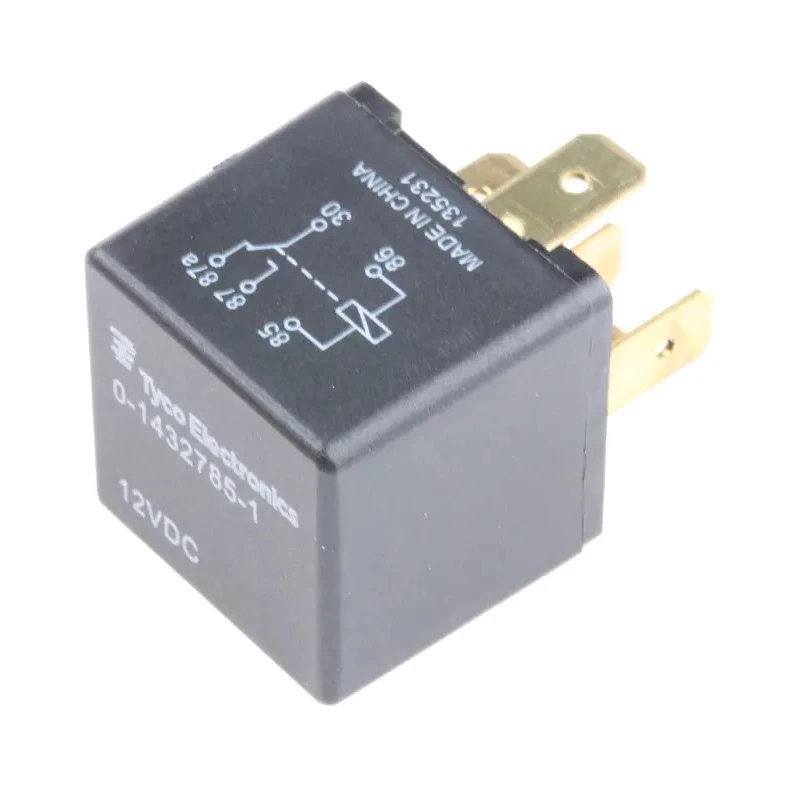

TE Connectivity Automotive Relay 12V DC Coil Voltage 30A Switching Current SPDT 1432785-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 24.5mm |
| Length | 26.5mm |
| Depth | 26.5mm |
| Contact Material | Silver Tin Oxide |
| Series | VF4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Features a Silver Tin Oxide contact material for reliable performance.
- Coil resistance is 90 ohms, providing efficient operation.
- Operates within a temperature range of -40°C to 85°C.
- Single pole double throw (SPDT) contact configuration.
- Quick connect terminal type for ease of installation.
- VF4 series designed for automotive and industrial use cases like headlamps and ignition loads.
- Isolation voltage of 500Vrms between coil and contacts ensures electrical safety.
Product Description
TE Connectivity 1432785-1 Automotive Relay offers a compact and robust solution for automotive electrical systems requiring switching of up to 30 amps with a 12V DC coil voltage. This SPDT relay features Silver Tin Oxide contacts providing durability and low contact resistance for reliable switching performance.
The relay coil resistance is 90 ohms, designed to optimize power consumption while maintaining high switching accuracy. It measures 26.5mm in length, 24.5mm in height, and 26.5mm in depth, making it suitable for tight spaces in automotive and industrial equipment.
Engineered to operate between -40°C and 85°C, it withstands harsh environments typical of automotive applications. The VF4 series relays include a variety of mounting and terminal options; this model uses quick connect terminals for fast and secure electrical connections.
The isolation rating of 500Vrms between coil and contact ensures safe operation and protection against electrical faults. Typical applications include automotive headlamps, ignition circuits, and other load management tasks requiring a single pole double throw switch configuration.
Features a Silver Tin Oxide contact material for reliable performance. Coil resistance is 90 ohms, providing efficient operation. Compact dimensions: 26.5mm length, 24.5mm height, and 26.5mm depth. Operates within a temperature range of -40°C to 85°C.
Single pole double throw (SPDT) contact configuration. Quick connect terminal type for ease of installation. VF4 series designed for automotive and industrial use cases like headlamps and ignition loads. Isolation voltage of 500Vrms between coil and contacts ensures electrical safety.
This relay is manufactured in China under the TE Connectivity brand, recognized globally for high quality and reliability in electrical components.
Ideal for industrial, automotive, and manufacturing sectors requiring dependable relay switching solutions. Explore the comprehensive range of relays and automotive electrical components available at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The automotive relay operates at a coil voltage of 12V DC.
It can handle a maximum switching current of 30A.
This model features a single pole double throw (SPDT) contact configuration.
The coil resistance is 90 ohms, designed to optimize power consumption.
It measures 26.5mm in length, 24.5mm in height, and 26.5mm in depth.
It operates within a temperature range of -40°C to 85°C.
This unit uses quick connect terminals for ease of installation.
The isolation voltage is rated at 500Vrms between the coil and contacts.
It features Silver Tin Oxide as the contact material for reliable performance.
Typical applications include automotive headlamps, ignition circuits, and load management tasks.
This model is part of the VF4 series, designed for automotive and industrial use cases.
It is manufactured in China under the TE Connectivity brand.
