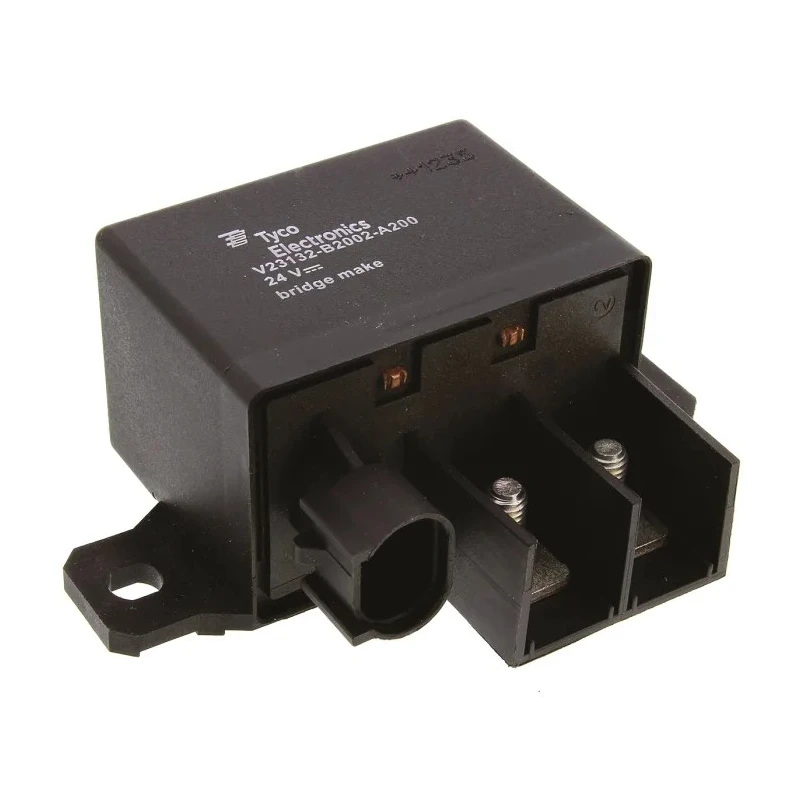

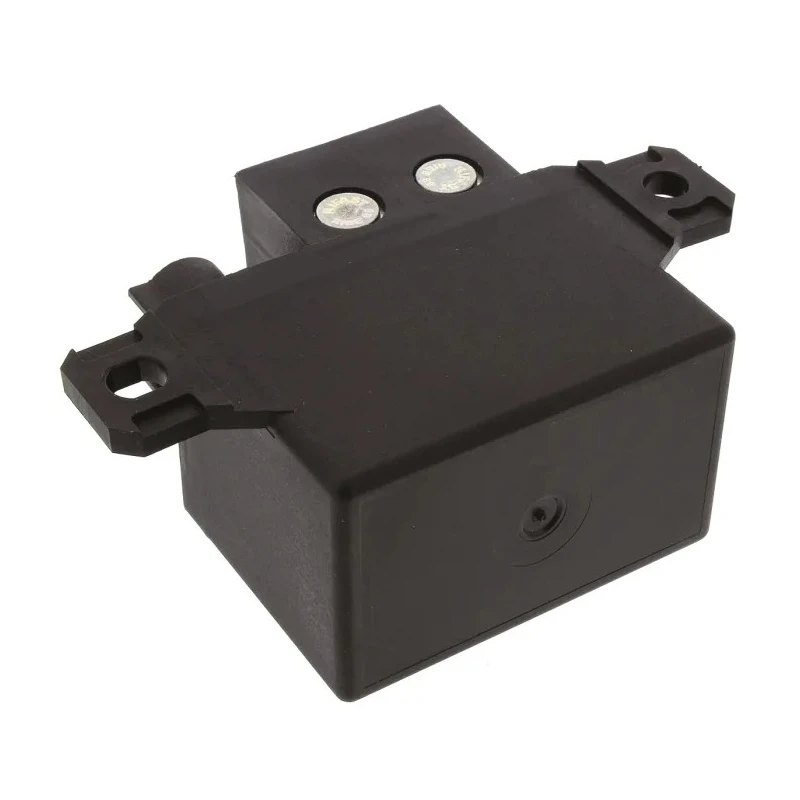

TE Connectivity High Current Automotive Relay 24V DC Coil 3.3W Power 300A Switching Current SPST V23132B2002A200 1393315-9
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 71mm |
| Length | 63mm |
| Model | V23132B2002A200 1393315-9 |
| Depth | 40mm |
| Contact Material | Silver Alloy |
| Series | HCR 150 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 1 |
| Coil Resistance | 141Ω |
| Coil Power | 3.3W |
Key Features
- The relay includes a coil power rating of 3.3 watts for efficient operation.
- It offers a coil resistance of 141 ohms ensuring stable coil performance.
- The device has 1 pole and utilizes screw terminal connections for robust wiring.
- Designed to operate reliably in harsh conditions from -40°C up to 125°C ambient temperatures.
- The relay's silver alloy contacts provide minimal contact resistance and high durability.
- Compact dimensions of 63 mm length, 71 mm height, and 40 mm depth ensure easy installation.
- The relay package is heat, moisture, and vibration resistant, suitable for automotive environments.
- Applications include engine control, electric pumps, car heating systems, diesel engine preheating, and battery disconnection.
Product Description
TE Connectivity V23132B2002A200 1393315-9 is a high current automotive relay designed to operate with a 24V DC coil voltage and a coil power of 3.3 watts. This relay features a single-pole single-throw (SPST) contact configuration capable of switching currents up to 300A, suitable for demanding automotive electrical applications.
The relay construction includes silver alloy contacts that ensure low contact resistance and durability across its operating range from -40°C to +125°C. The device houses screw terminal type connections that facilitate solid and secure wiring in automotive electronic systems.
This model measures 63mm in length, 71mm in height, and 40mm in depth, engineered with resistance against heat, moisture, and vibration to maintain performance in rugged automotive conditions.
Typical use cases for this relay include engine management systems, electric pump controls, car heating regulation, preheating air for diesel engines, and disconnecting the battery to prevent drain or electrical faults.
Note that coil connection requires an AMP connector 282080-1 and compatible receptacles for cables sized 1 to 1.5mm. The relay is part of the HCR 150 series and is manufactured in Portugal.
The relay’s coil power consumption of 3.3W ensures efficient energy use under varied conditions. Its coil resistance is precisely 141Ω to match automotive electrical system requirements. The robust SPST contact configuration is optimized for high current automotive relay applications.
The device has one pole enabling single circuit switching. Screw terminals provide reliable mechanical and electrical connections in vehicle wiring. Operating temperature range from minus 40 to plus 125 degrees Celsius assures suitability for diverse climates.
Compact robust design resistant to heat, moisture, and vibration. Silver alloy contact material enhances performance and lifetime. Made in Portugal ensuring European manufacturing standards and quality control. For more Automotive Relays and related components, explore EnvMart’s categories for reliable automotive electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive relay can switch currents up to 300A, making it suitable for demanding automotive electrical applications.
The relay operates with a 24V DC coil voltage and has a coil power rating of 3.3 watts.
The coil resistance is 141 ohms, ensuring stable coil performance in automotive applications.
This relay measures 63mm in length, 71mm in height, and 40mm in depth, allowing for easy installation in various automotive setups.
It utilizes screw terminal connections for robust wiring, facilitating secure mechanical and electrical connections.
The relay is designed to operate reliably in temperatures ranging from -40°C to +125°C, suitable for diverse climates.
This model features a single-pole single-throw (SPST) contact configuration, optimized for high current applications.
The contacts are made of silver alloy, which provides minimal contact resistance and enhances durability.
Typical applications include engine control, electric pumps, car heating systems, and battery disconnection.
This relay is manufactured in Portugal, ensuring compliance with European manufacturing standards.
The coil connection requires an AMP connector 282080-1 and compatible receptacles for cables sized 1 to 1.5mm.
This relay is part of the HCR 150 series, designed for high current automotive applications.
