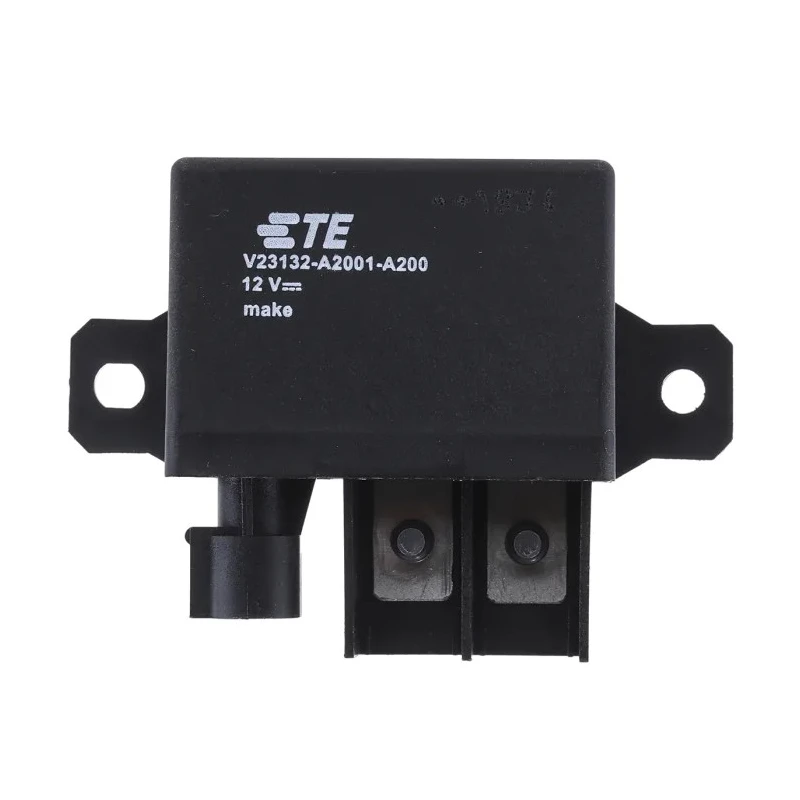

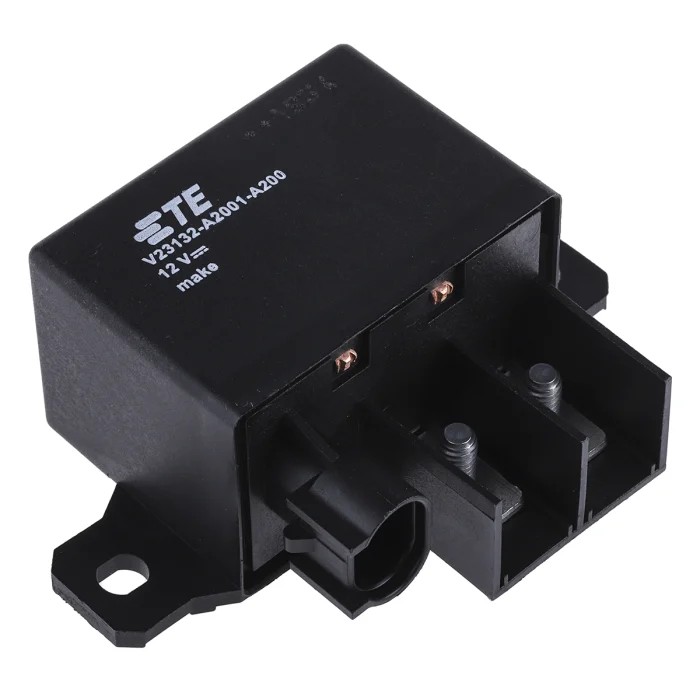

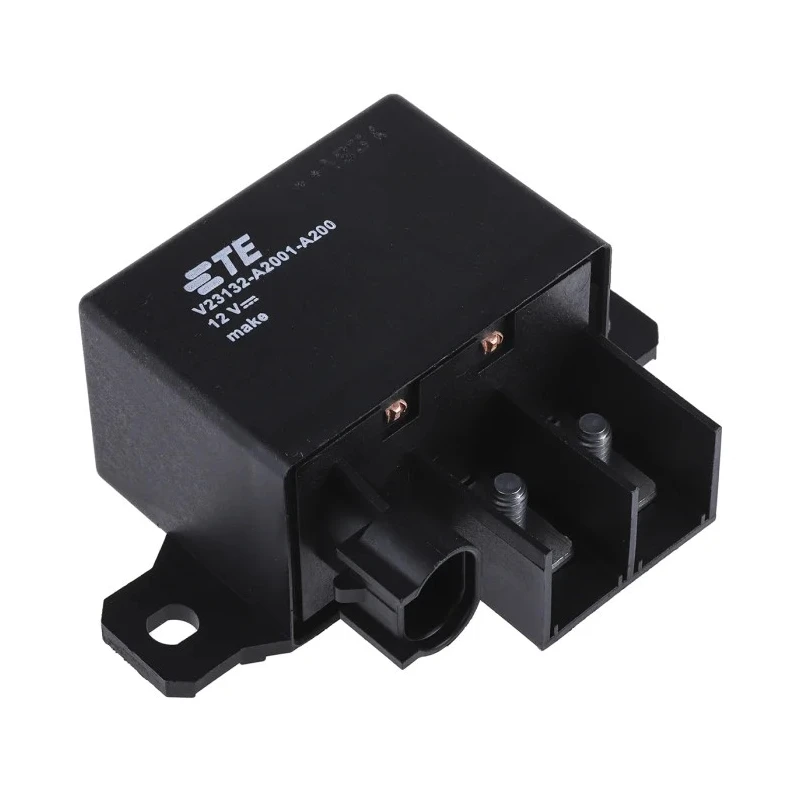

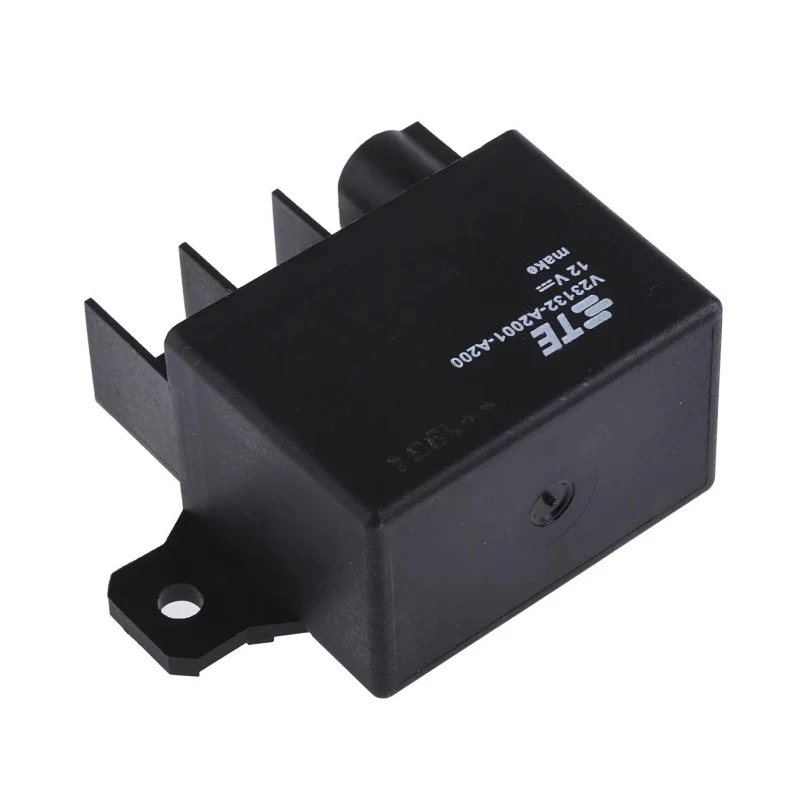

TE Connectivity Flange Automotive Relay 12V DC Coil Voltage 3.9W Coil Power 300A Switching Current SPST 1393315-2
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 71mm |
| Length | 63mm |
| Depth | 40mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | HCR 150 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 1 |
| Coil Resistance | 37Ω |
| Coil Power | 3.9W |
Key Features
- Coil power rating of 3.9W ensures reliable operation.
- Single pole single throw (SPST) contact configuration.
- Screw terminal type for secure electrical connections.
- Operating temperature range from -40°C to 125°C suitable for harsh environments.
- Flange mount type facilitates easy installation.
- Constructed with silver alloy contact material for durability and low resistance.
- Compact size enables flexible integration in automotive systems.
- High switching current capacity of 300A for demanding electrical loads.
Product Description
TE Connectivity 1393315-2 flange automotive relay operates at 12V DC coil voltage with a coil power of 3.9W, designed to switch currents up to 300A. This SPST relay has a single pole and features screw terminal connections, enabling secure and stable electrical contacts. The relay is mounted using a flange, which aids in robust mechanical fixation.
With its silver alloy contact material, the relay offers excellent conductivity and durability. It is built to withstand harsh automotive environments, with a broad operating temperature range from -40°C to 125°C. Its construction resists heat, moisture, and vibration, making it highly reliable for automotive and industrial applications.
The compact dimensions of 63mm length, 71mm height, and 40mm depth allow for convenient installation within automotive electrical systems. This product is part of the HCR 150 series from TE Connectivity and is manufactured in Portugal following rigorous quality controls.
Typical applications include engine control, electric pump operation, heating systems, diesel engine preheating, and battery disconnection in vehicles. Additional accessories such as AMP coil connectors (282080-1) and cable receptacles for 1 to 1.5mm cables (stock no. 314-1340) are recommended for appropriate installation.
Coil power rating of 3.9W ensures reliable operation. Single pole single throw (SPST) contact configuration. Screw terminal type for secure electrical connections. Operating temperature range from -40°C to 125°C suitable for harsh environments.
Flange mount type facilitates easy installation. Constructed with silver alloy contact material for durability and low resistance. Compact size enables flexible integration in automotive systems. High switching current capacity of 300A for demanding electrical loads.
Heat, moisture, and vibration resistant design improves life expectancy. Manufactured in Portugal to high-quality standards. Explore more high-quality Automotive Relays and electrical components at EnvMart’s Electronics & Electricals category for all your automotive and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a coil voltage of 12V DC.
It has a high switching current capacity of 300A, suitable for demanding electrical loads.
The coil power rating is 3.9W, ensuring reliable operation.
It features a single pole single throw (SPST) contact configuration.
The relay measures 63mm in length, 71mm in height, and 40mm in depth.
It can operate within a temperature range from -40°C to 125°C, making it suitable for harsh environments.
This unit is flange mounted, facilitating easy installation.
It has screw terminals, which provide secure electrical connections.
The contacts are constructed from silver alloy, offering excellent conductivity and durability.
Typical applications include engine control, electric pump operation, heating systems, and battery disconnection in vehicles.
It is manufactured in Portugal under rigorous quality controls.
Recommended accessories include AMP coil connectors (282080-1) and cable receptacles for 1 to 1.5mm cables (stock no. 314-1340).
