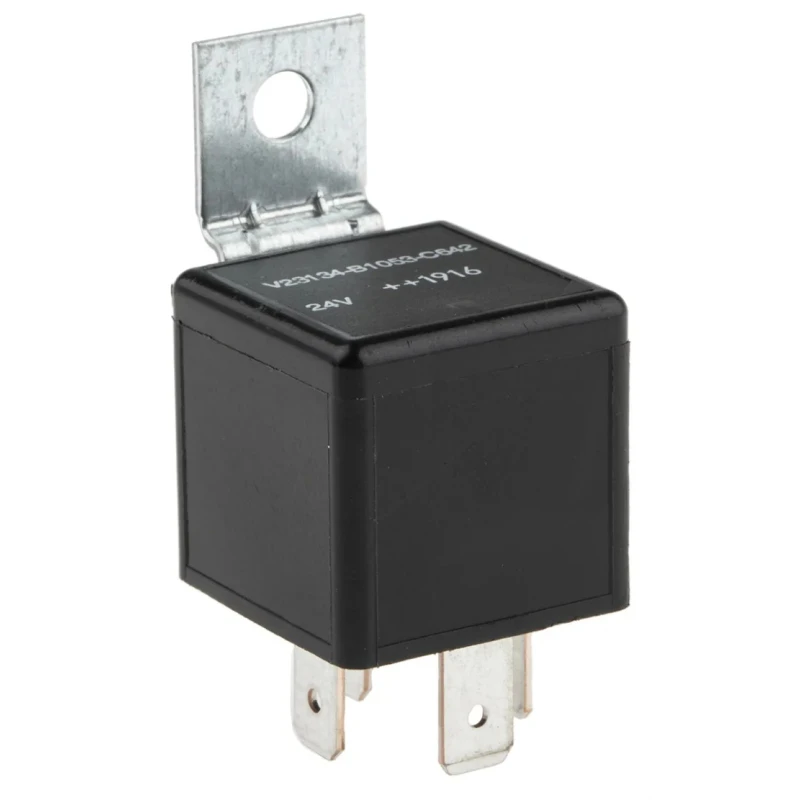

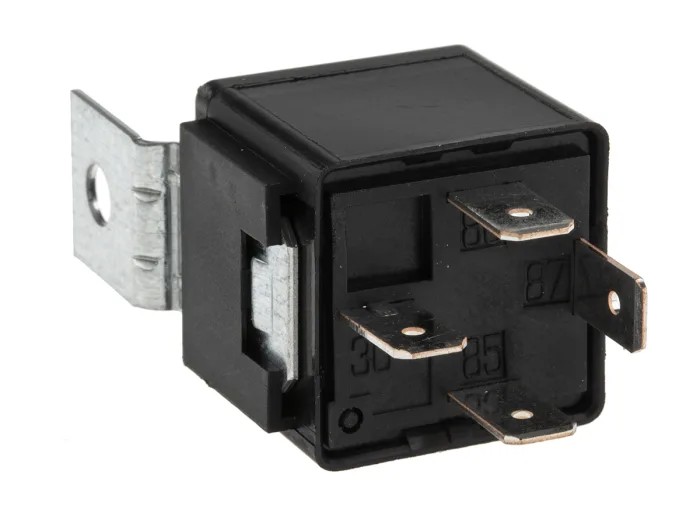

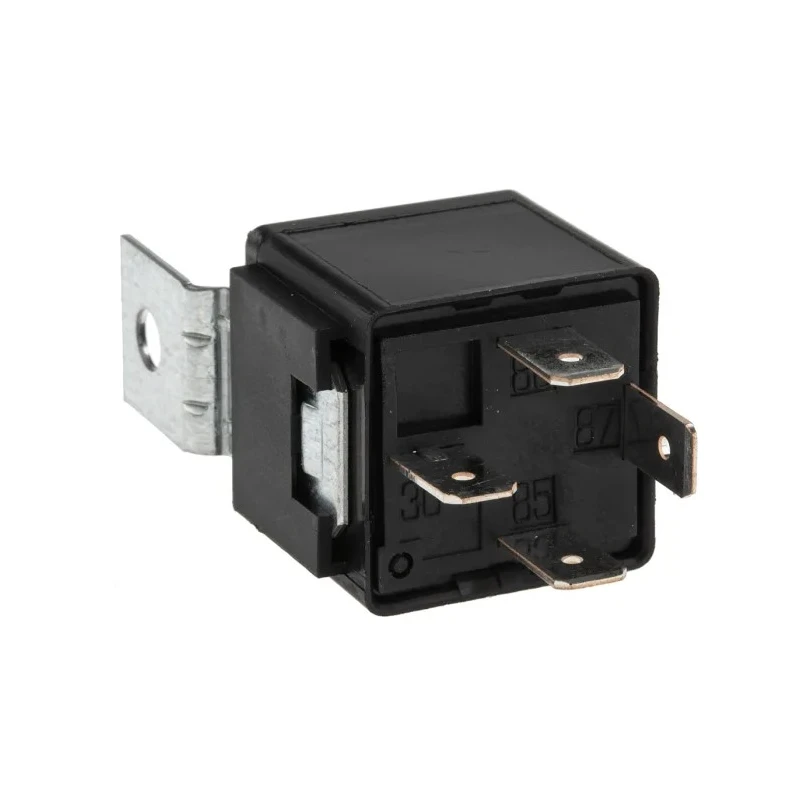

TE Connectivity Automotive Relay 24V DC Coil Voltage 40A Switching Current SPST V23134B1053C642 3-1393303-7
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 51.9mm |
| Length | 25.9mm |
| Model | V23134B1053C642 3-1393303-7 |
| Depth | 29.9mm |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 324Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
Key Features
- The relay features a coil power of 1.6 watts.
- Coil resistance is precisely 324 ohms ensuring reliable operation.
- Constructed with silver contact material for durability and conductivity.
- Operates efficiently within a temperature range of -40°C to 125°C.
- Designed with quick connect terminals for easy installation.
- The relay integrates an isolation voltage of 500V between coil and contacts.
- Compact dimensions measuring 51.9mm height, 29.9mm depth, and 25.9mm length.
- Part of the F4 Mini ISO series, suitable for various automotive electrical systems.
Product Description
TE Connectivity V23134B1053C642 3-1393303-7 is an automotive relay engineered for high performance in vehicular electrical systems. This relay operates with a 24V DC coil voltage, supports a maximum switching current of 40A, and features a single-pole single-throw (SPST) contact configuration suitable for straightforward switching tasks.
Continuing the legacy of reliability, this relay offers a coil power consumption of 1.6W and a coil resistance of 324 ohms, ensuring energy-efficient activation. The contacts are fashioned from silver, providing excellent conductivity and resistance to wear and corrosion over extended use.
Its operational temperature range from -40°C to 125°C makes it suitable for harsh automotive environments. The relay includes quick connect terminals designed for ease of installation and maintenance while providing a secure electrical connection.
With an isolation voltage rating of 500V between coil and contacts, this relay ensures safety and withstands voltage spikes common in automotive circuits. It is compact in size, measuring 51.9mm in height, 29.9mm in depth, and 25.9mm in length, fitting neatly into tight spaces within automotive assemblies.
The relay belongs to TE Connectivity’s F4 Mini ISO series, targeting applications such as ignition lock control, lamp loads including headlamps, exhaust emission control, ABS systems, fuel pumps, electric power steering, wiper control, car alarm systems, and blower fans.
Manufactured in Portugal, this new condition relay meets rigorous standards for automotive industry applications. Its design complies with ISO 7880 and ISO 7588 approvals, underscoring its quality and reliability.
The relay features a coil power of 1.6 watts. Coil resistance is precisely 324 ohms ensuring reliable operation. Constructed with silver contact material for durability and conductivity. Operates efficiently within a temperature range of -40°C to 125°C.
Designed with quick connect terminals for easy installation. The relay integrates an isolation voltage of 500V between coil and contacts. Compact dimensions measuring 51.9mm height, 29.9mm depth, and 25.9mm length. Part of the F4 Mini ISO series, suitable for various automotive electrical systems.
Explore the wide range of reliable Automotive Relays at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 40A.
This relay operates with a coil voltage of 24V DC.
The relay has an isolation voltage rating of 500V between the coil and contacts.
It measures 51.9mm in height, 29.9mm in depth, and 25.9mm in length.
The coil resistance is 324 ohms.
The relay operates efficiently within a temperature range of -40°C to 125°C.
It is designed with quick connect terminals for easy installation.
The relay features a single-pole single-throw (SPST) contact configuration.
The contacts are constructed from silver, providing good conductivity and resistance to wear.
This relay is part of the F4 Mini ISO series.
This model is manufactured in Portugal.
The coil power consumption is 1.6 watts.
