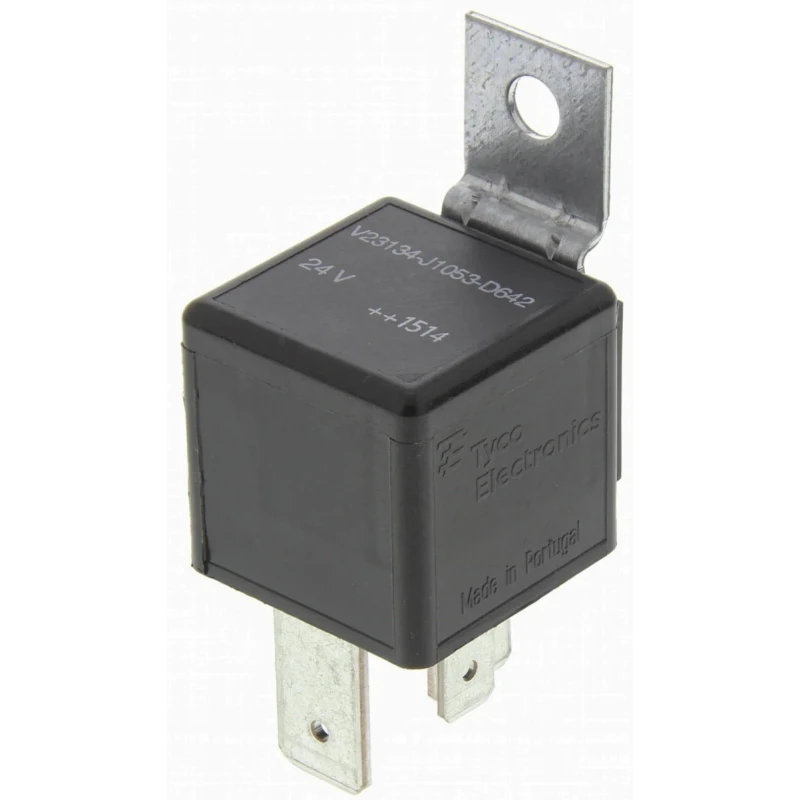

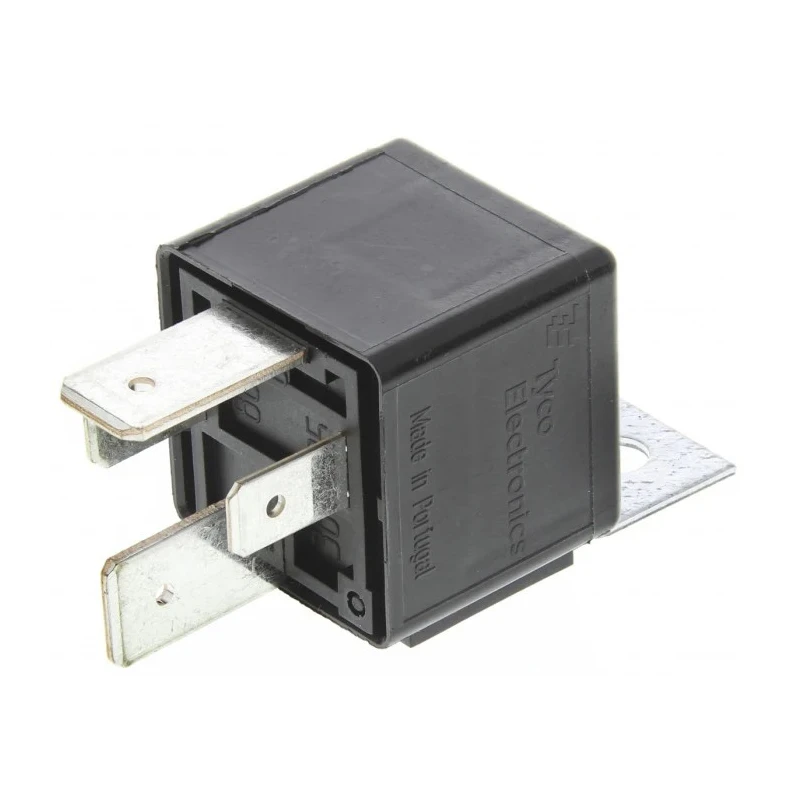

TE Connectivity Automotive Relay 24V DC Coil Voltage 25A Switching Current SPST V23134J1053D642 1-1393304-1
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 57.9mm |
| Length | 25.9mm |
| Model | V23134J1053D642 1-1393304-1 |
| Depth | 25.9mm |
| Contact Material | Silver Alloy |
| Series | F7 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 332Ω |
Key Features
- The relay features a SPST contact configuration suitable for controlling single circuits.
- It is designed with a coil resistance of 332Ω to ensure efficient operation.
- Constructed with silver alloy contact material to provide durability and low contact resistance.
- Housing quick connect terminals for easy and secure connections.
- Operates reliably within a temperature range of -40°C to 125°C.
- Compact dimensions of 25.9mm length, 57.9mm height, and 25.9mm depth allow versatile panel mounting.
- Non-latching design with a coil power consumption of approximately 1.6W.
- Rated IP54 for protection against dust and water splashes, suitable for harsh automotive environments.
Product Description
TE Connectivity V23134J1053D642 1-1393304-1 automotive relay is engineered for robust automotive electrical system integration, featuring a 24V DC coil voltage and a high 25A switching capacity. This SPST (Single Pole Single Throw) relay is ideal for switching applications in vehicles, supporting reliable control of circuits such as cooling fans and wipers.
Constructed with silver alloy contacts, the relay ensures minimal contact resistance and improved longevity. The coil resistance is precisely 332Ω, providing consistent coil power consumption of around 1.6W. The product supports operating temperatures from -40°C up to 125°C, making it suitable for a wide range of automotive environments.
The relay’s compact dimensions of 25.9mm length, 57.9mm height, and 25.9mm depth facilitate convenient panel mounting and integration into tight spaces. Quick connect terminals simplify installation and maintenance procedures.
The IP54 rating assures protection against dust ingress and water splashes, enhancing durability under harsh conditions typically encountered in automotive use cases. Manufactured in Portugal, this F7 series relay meets demanding quality standards.
This non-latching relay is suitable for multiple automotive circuit applications, including coil suppression, cooling fan systems, and wiper controls, where dependable switching performance is essential.
The relay features a SPST contact configuration suitable for controlling single circuits. Constructed with silver alloy contact material to ensure durability and low resistance. Quick connect terminals facilitate secure and rapid installation.
Operating temperature range spans from -40°C to 125°C, accommodating rigorous automotive conditions. Compact dimensions allow panel mounting in space-constrained environments. Coil resistance of 332 ohms supports efficient coil power usage.
IP54 rated for dust and water splash protection. Non-latching design suitable for various automotive control circuits. Manufactured in Portugal with F7 series quality assurance. Ideal for coil suppression circuits, cooling fan circuits, and wiper circuits applications.
Explore more products in the Automotive Relay category at EnvMart for reliable automotive electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC.
It has a switching current capacity of 25A.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 332Ω, which supports efficient operation.
The relay has compact dimensions of 25.9mm in length, 57.9mm in height, and 25.9mm in depth.
It operates reliably within a temperature range of -40°C to 125°C.
It is equipped with quick connect terminals for easy and secure connections.
The contacts are constructed with silver alloy material to provide low contact resistance and durability.
The relay is rated IP54, providing protection against dust ingress and water splashes.
This model is manufactured in Portugal.
It is suitable for various automotive circuit applications, including cooling fan systems and wiper controls.
The coil power consumption is approximately 1.6W.
