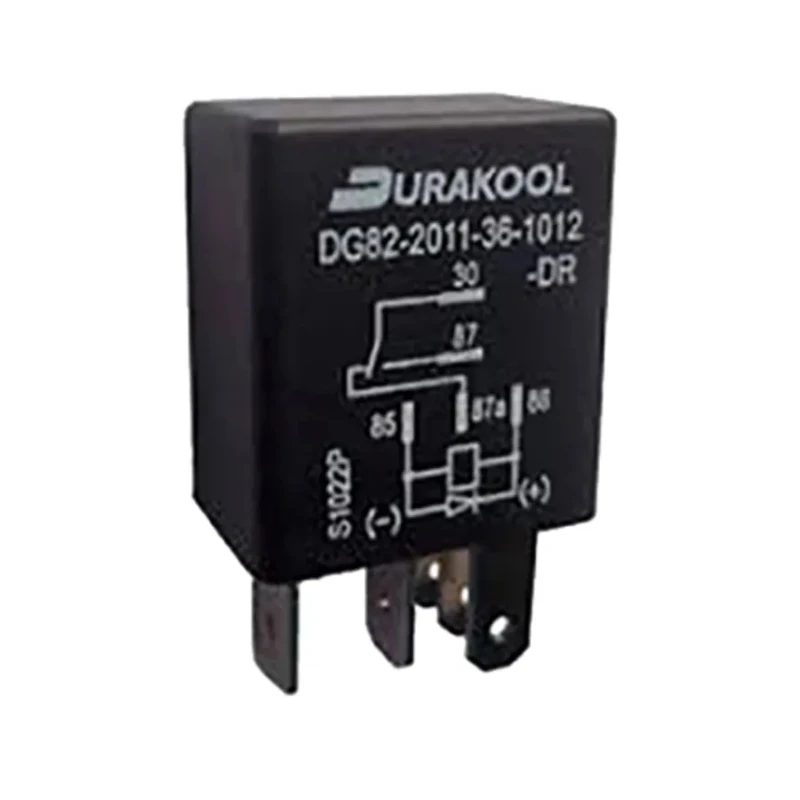

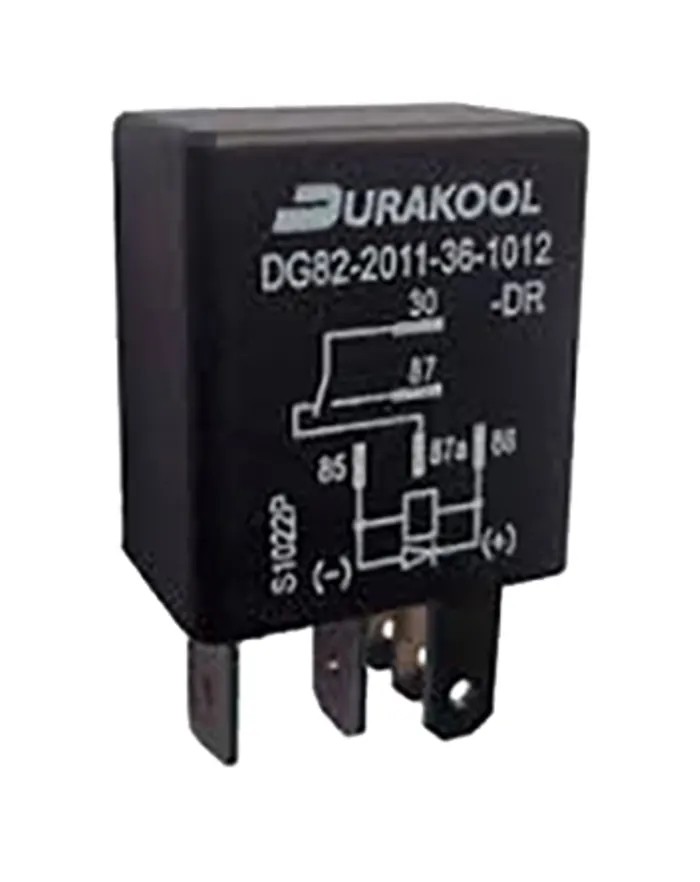

Durakool PCB Automotive Relay 12V DC Coil Voltage 1.81W Power 40A Switching Current SPST DG82-7021-36-1012-DR
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 26mm |
| Length | 23.7mm |
| Model | DG82-7021-36-1012-DR |
| Depth | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG82 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 123Ω |
| Coil Power | 1.81W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Designed with a coil power of 1.81 watts for efficient performance.
- Has a coil resistance of 123 ohms ensuring precise operation.
- Features a single pole, single throw (SPST) contact configuration suitable for various automotive applications.
- Equipped with quick connect terminals for easy PCB mounting and installation.
- Operates reliably within temperatures from -40°C to 125°C for automotive environments.
- Offers 500 Vrms isolation between coil and contacts ensuring safety and reliability.
- Contact material includes silver tin oxide indium oxide for durability and consistent switching.
Product Description
Durakool DG82-7021-36-1012-DR PCB Automotive Relay is a robust and reliable mini ISO automotive power relay designed for general purpose applications in automotive and related industries. Featuring a 12V DC coil voltage and 1.81W coil power, this relay supports a high switching current of 40A, making it ideal for DC motor control and other power switching uses. It has a single pole single throw (SPST) contact configuration offering straightforward switching functionality.

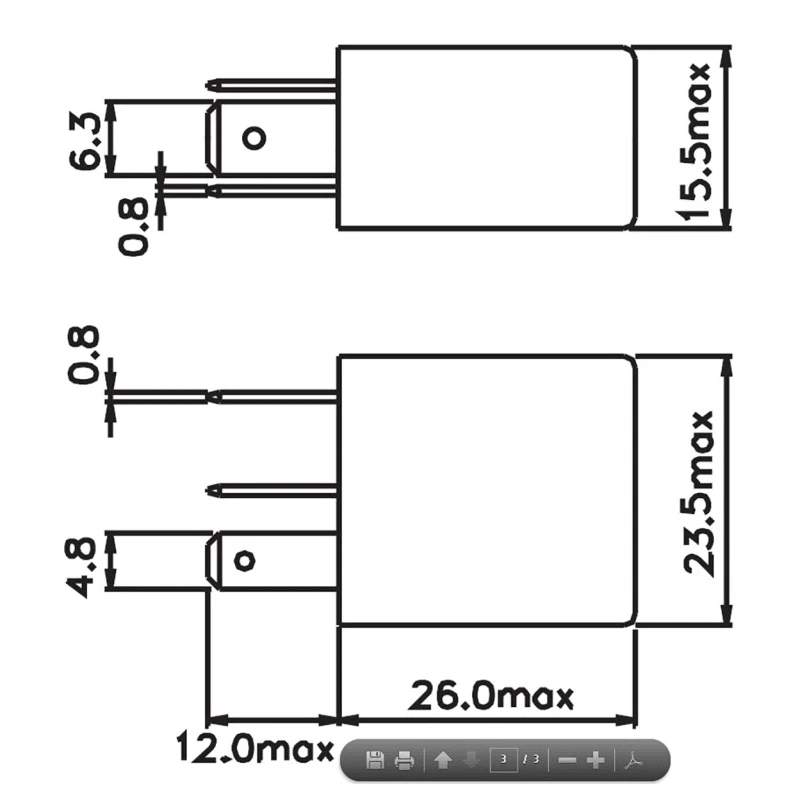

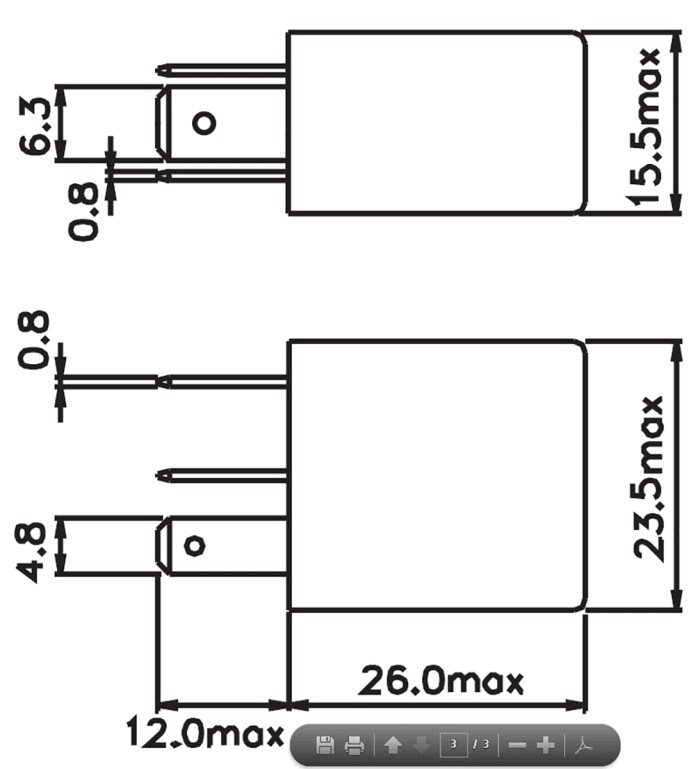

The relay is engineered to deliver high resistance to inrush current and continuous DC current capacity, ensuring longevity and stable operation in demanding environments. The compact dimensions of 23.7 mm length, 26 mm height, and 15.7 mm depth enable easy integration onto printed circuit boards (PCB) with quick connect terminal types simplifying assembly.
Operating temperature range from -40°C to 125°C allows this relay to perform reliably in extreme automotive environmental conditions. The contact material is crafted from silver tin oxide indium oxide, providing excellent conductive and wear-resistance properties. The coil-to-contact isolation rating of 500 Vrms offers an effective barrier ensuring operational safety.
Manufactured in China, this relay complies with RoHS standards, supporting environmentally responsible use. Ideal for industrial, automotive, manufacturing, and electrical automation systems, the DG82 series relay meets industry standard sizes and footprint requirements.
Designed for general purpose miniature automotive relay applications. High resistance to inrush current extends relay life expectancy. High continuous DC current capacity suitable for motor control circuits. Compact and industry standard size ensures compatibility and ease of replacement.
Reliable PCB mount with quick connect terminals for straightforward installation. Wide temperature range supports automotive and industrial ambient conditions. Durable silver tin oxide indium oxide contacts for long-term performance.
500 Vrms isolation provides safety and insulation between coil and contact circuits. Explore similar Automotive Relays and electrical components in our Electronics & Electricals category at EnvMart for your industrial and automotive automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It supports a maximum switching current of 40A.
The dimensions are 23.7 mm in length, 26 mm in height, and 15.7 mm in depth.
This relay features a single pole, single throw (SPST) contact configuration.
The coil power rating is 1.81 watts.
It is equipped with quick connect terminals for easy PCB mounting.
The operating temperature range is from -40°C to 125°C.
The contact material includes silver tin oxide indium oxide.
The relay has an isolation rating of 500 Vrms between the coil and contacts.
This relay is manufactured in China.
It is suitable for general purpose applications in automotive and related industries.
The coil resistance is 123 ohms.
