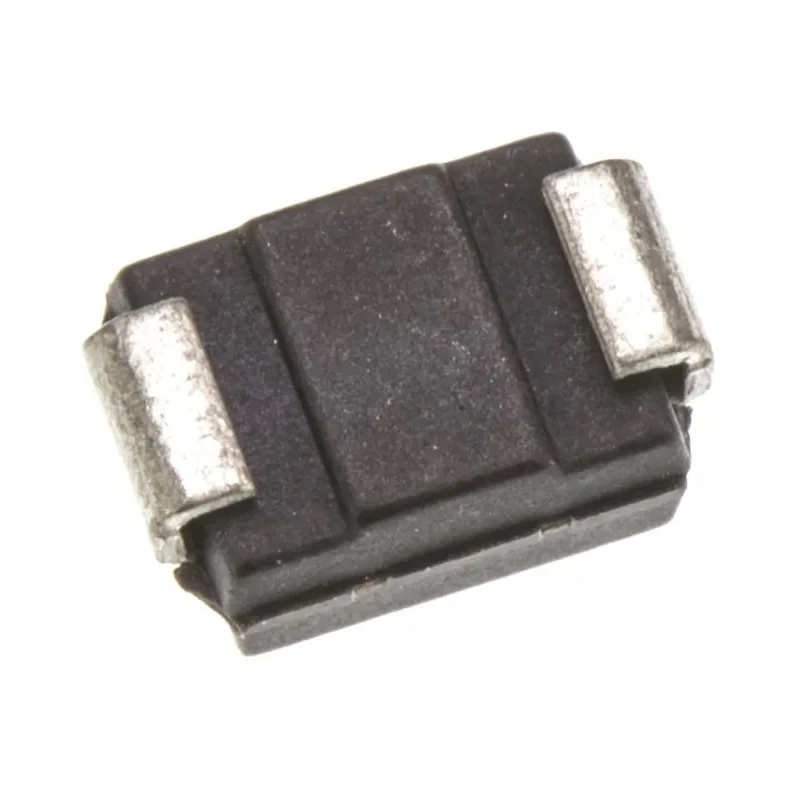

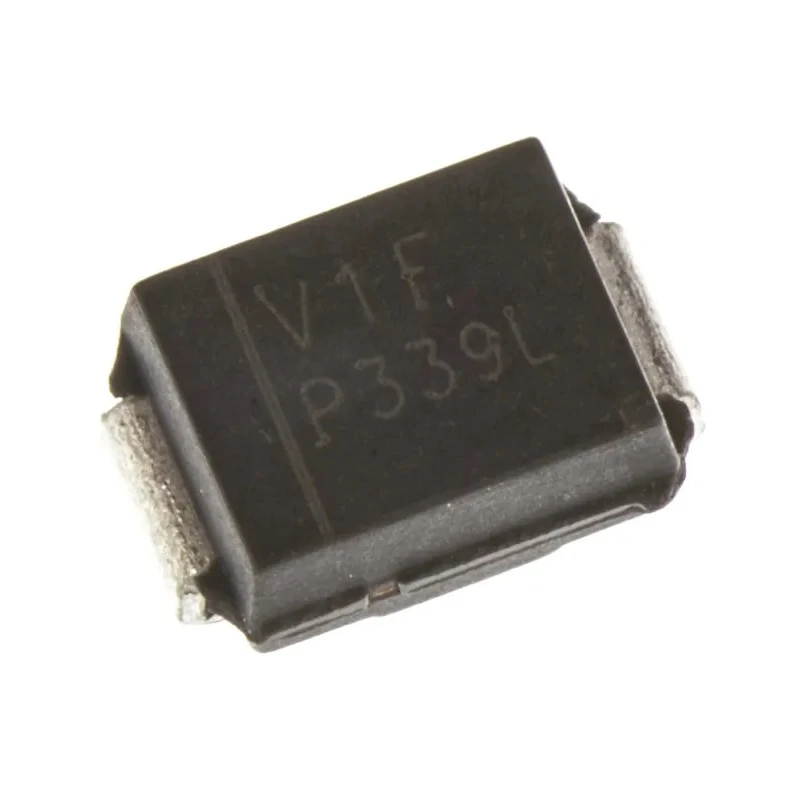

Vishay 40 V 1 A Schottky Diode Surface Mount DO-214AA VS-10BQ040-M3/5BT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | VS-10BQ040-M3/5BT |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 430A |
| Maximum Forward Voltage Vf | 0.52V |
| Vishay 40V 1A, Schottky Diode, 2-Pin DO-214AA VS-MBRS140TRPBFBrand | Vishay |
| Vishay Diode, 10BQ040Brand | Vishay |
Key Features
- Surface mount type with DO-214AA package ensures compact design.
- Maximum continuous forward current of 1 ampere supports moderate load requirements.
- Peak reverse repetitive voltage rating of 40 volts for reliable performance.
- Low maximum forward voltage of 0.52 V reduces power dissipation.
- Operates within a wide temperature range from -55°C to 150°C.
- Extremely short reverse recovery time enables fast switching applications.
- 2-pin single diode configuration ideal for rectifier circuits.
- High surge current tolerance with a peak non-repetitive forward surge current of 430 A.
Product Description
Vishay VS-10BQ040-M3/5BT is a reliable, high-performance Schottky diode designed for applications requiring fast switching and low losses. Featuring a 40 V maximum repetitive reverse voltage and a continuous forward current rating of 1 A, this surface mount device uses the DO-214AA package for a compact footprint suitable for space-constrained electronic designs.
The diode exhibits a low maximum forward voltage of 0.52 V, minimizing power dissipation and improving overall circuit efficiency. It supports an operating temperature range from -55°C up to 150°C, making it suitable for a variety of industrial, commercial, and consumer electronic applications including power rectification, freewheeling diodes, and protection circuits.
With a fast switching capability due to its short reverse recovery time and a robust peak non-repetitive forward surge current capacity of 430 A, the VS-10BQ040-M3/5BT diode excels in high-frequency and high-efficiency power conversion applications.
The device’s dimensions are 4.7 mm in length and 3.8 mm in width, optimizing board space while facilitating automated surface mount assembly processes. This diode does not have automotive or special industrial approvals, but its VSX series designation from Vishay ensures quality and performance consistency.
Surface mount diode with DO-214AA package type. Supports 1 A continuous forward current. Rated for 40 V peak repetitive reverse voltage. Low forward voltage minimizes power loss. Operating temperature range from -55°C to 150°C.
High surge current capacity for transient conditions. Compact size with 2-pin configuration. Suitable for industrial, laboratory, and commercial electronics. Explore a wide range of semiconductor diodes and related electronic components in the EnvMart catalog for your industrial and commercial projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 A.
This model has a peak reverse repetitive voltage rating of 40 V.
The maximum forward voltage drop of this diode is 0.52 V, which helps minimize power dissipation.
The dimensions of this diode are 4.7 mm in length and 3.8 mm in width.
It operates within a temperature range from -55°C to 150°C.
The diode is packaged in a DO-214AA surface mount type.
The peak non-repetitive forward surge current rating is 430 A.
This diode has a 2-pin configuration.
This model is a Schottky diode, designed for fast switching and low losses.
The peak reverse current rating for this diode is 100 μA.
It is suitable for applications such as power rectification, freewheeling diodes, and protection circuits.
This diode belongs to the VSX series from Vishay.
