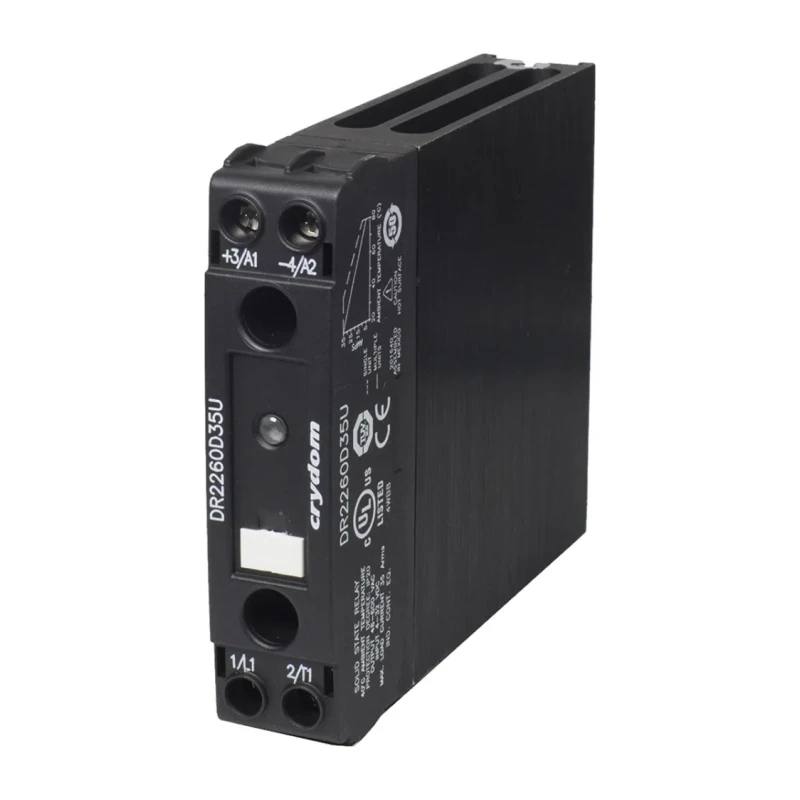

Crydom DR22 Series Solid State Relay, 30A Load, DIN Rail Mount, 600 Vrms Load, 280V AC/DC Control DR22
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 93.2mm |
| Length | 22.5mm |
| Model | DR22 |
| IP Rating | IP20 |
| Width | 116mm |
| Mount Type | DIN Rail |
| Output type | MOSFET |
| Series | DR22 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 30A |
| Standards/Approvals | CE, RoHS |
| Minimum Control Voltage | 90V ac/dc |
| Maximum Control Voltage | 280V ac/dc |
| Off State Leakage Current | 1mA |
Key Features
- Supports a wide load voltage range up to 600 Vrms for versatile applications.
- Control voltage range spans 90V to 280V AC/DC ensuring compatibility with diverse control systems.
- Equipped with a robust MOSFET output for reliable switching performance.
- Features zero voltage switching function to minimize electrical noise and stress.
- Durable aluminium heatsink and screw terminals enhance longevity and secure connections.
- Compact size with dimensions approximately 93.2mm height, 116mm width, and 22.5mm length.
- Built-in LED indicator for operational status monitoring.
- IP20 rated enclosure protects against solid objects but not water ingress.
Product Description
Crydom DR22 Series Solid State Relay model DR22 is a high-performance, 1-pole Solid State Relay designed to switch electrical loads up to 30A with a maximum load voltage of 600 Vrms. Intended for DIN rail mounting, this SSR offers a compact and efficient solution for automation and industrial control systems.
The control input voltage range of 90V to 280V AC/DC allows broad compatibility with various control circuits. The relay utilizes MOSFET output technology coupled with zero voltage switching to ensure minimal switching noise and enhanced electrical durability. An integrated aluminium heatsink dissipates heat effectively allowing reliable operation even under demanding conditions.
Mechanical connections are secured with screw terminals, offering easy and secure wiring options. The device features an LED indicator that visually confirms the relay's operating status, simplifying installation and troubleshooting. With an operating temperature range from -40°C to 80°C and an IP20 enclosure rating, this relay is suitable for diverse industrial, manufacturing, and automation environments.
The relay meets CE and RoHS standards, ensuring compliance with European safety and environmental directives. Typical applications include robotics, medical equipment control, process automation, and other demanding industrial control setups.
Supports load currents up to 30A at 600 Vrms. Control voltage range of 90V to 280V AC/DC for flexible integration. MOSFET output with zero voltage switching reduces electrical interference. Durable aluminium heatsink improves thermal management for prolonged life.
Screw terminal connections ensure secure and maintenance-friendly wiring. LED status indicator enables quick diagnostics and status verification. Compact DIN rail mounting facilitates tool-free installation and space saving.
Operating temperature range from -40°C to 80°C supports varied environments. IP20 degree of protection suitable for indoor industrial environments. CE and RoHS certifications confirm safety and environmental compliance. Explore the wide range of industrial and automation products available through EnvMart for advanced control and relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 30A.
The control voltage range spans from 90V to 280V AC/DC, allowing compatibility with various control systems.
It utilizes a MOSFET output, which is designed for reliable switching performance.
The dimensions of this unit are approximately 93.2mm in height, 116mm in width, and 22.5mm in length.
This relay has an IP20 rating, which protects against solid objects but not water ingress.
The operating temperature range is from -40°C to 80°C, making it suitable for varied environments.
Yes, it features a built-in LED indicator that shows the operational status of the relay.
This model is designed for DIN rail mounting, facilitating easy installation.
It uses screw terminal connections, which provide secure and maintenance-friendly wiring options.
The relay features zero voltage switching, which helps minimize electrical noise and stress during operation.
This relay meets CE and RoHS standards, ensuring compliance with European safety and environmental directives.
Typical applications include robotics, medical equipment control, and process automation among other industrial control setups.
