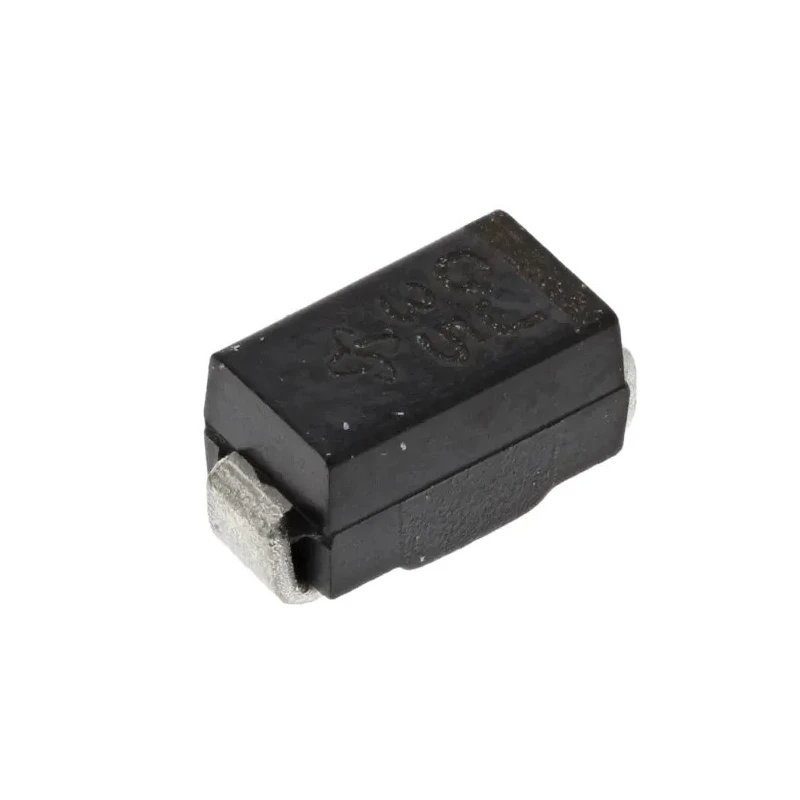

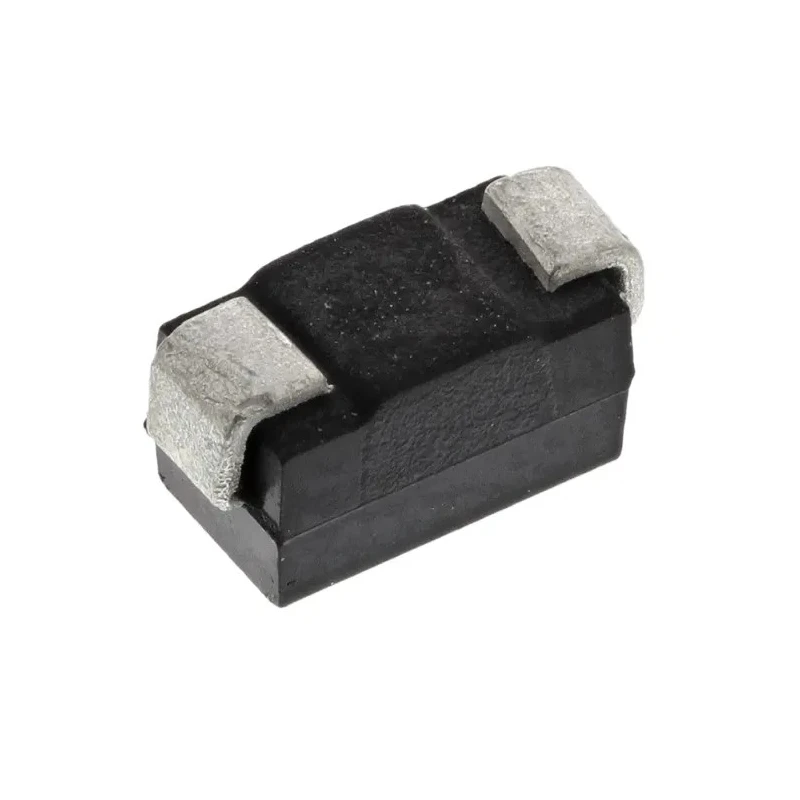

Vishay 600 V 1 A General Purpose Diode 2-Pin DO-214BA GF1J-E3/67A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13in |
| Brand | Vishay |
| Height | 2.74mm |
| Length | 4.75mm |
| Model | GF1J-E3/67A |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | GF1 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214BA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, JESD 201 Class 1A/Class 2, JESD 22-B102, J-STD-002, UL 94 V-0 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 2μs |
| Vishay 600V 1A, Silicon Junction Diode, 2-Pin DO-214BA GF1JBrand | Vishay |
| onsemi 1 kV 1 A Diode Switching 2-Pin DO-214AC MRA4007T3GBrand | onsemi |
Key Features
- Surface mount type package DO-214BA offers compact size and easy PCB mounting.
- Maximum continuous forward current of 1 ampere supports moderate power rectification.
- High peak reverse repetitive voltage rating of 600 volts protects circuits from voltage spikes.
- Fast peak reverse recovery time of 2 microseconds minimizes switching losses.
- Wide operating temperature range from -65°C to 175°C ensures reliability in harsh environments.
- General purpose rectifier type diode suitable for standard recovery applications.
- Pin count of 2 accommodates simple diode circuit integration.
- Built to meet stringent standards such as RoHS compliance and automotive AEC-Q101 qualification.
Product Description
Vishay GF1J-E3/67A general purpose diode is designed for efficient power rectification with a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 600 V. Packaged in a compact surface mount 2-pin DO-214BA package, it facilitates space-saving PCB layouts while providing reliable switching performance with a peak reverse recovery time of 2 microseconds.
Engineered to operate in extreme temperature conditions from -65°C up to 175°C, this diode is ideal for industrial, automotive, and electronic device applications requiring durable semiconductor rectifiers. The device supports general purpose rectification and meets environmental and quality standards including RoHS, JESD 201 Class 1A/Class 2, JESD 22-B102, J-STD-002, UL 94 V-0, and automotive AEC-Q101.
This silicon junction diode is suited for use in power supplies, converters, rectifier circuits, and other electronic modules demanding efficient control of current flow with minimal losses.
Surface mount DO-214BA package for compact integration. 1 A maximum continuous forward current rating. 600 V peak reverse repetitive voltage withstand capability. Fast peak reverse recovery time of 2 μs reduces switching losses.
Wide operating temperature from -65°C to 175°C for harsh environments. Compliance with multiple international standards enhances reliability. Small package dimensions: 4.75 mm x 2.9 mm x 2.74 mm. 2-pin configuration simplifies circuit design.
Package contains a single Vishay GF1J-E3/67A diode. Ideal for discrete semiconductor applications in electronics manufacturing, industrial automation, automotive electronics, and power electronics.
Explore more semiconductor diodes and electronic components at EnvMart for your industrial and laboratory needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay GF1J-E3/67A diode is 1 ampere.
This diode has a peak reverse repetitive voltage rating of 600 volts, which protects circuits from voltage spikes.
The peak reverse recovery time for the Vishay GF1J-E3/67A is 2 microseconds, helping to minimize switching losses.
The dimensions of the DO-214BA package are 4.75 mm in length, 2.9 mm in width, and 2.74 mm in height.
It operates within a wide temperature range from -65°C to 175°C, making it suitable for harsh environments.
The diode complies with several standards, including RoHS, AEC-Q101, and UL 94 V-0, among others.
This model is a general purpose rectifier type diode, suitable for standard recovery applications.
The Vishay GF1J-E3/67A features a 2-pin configuration, which simplifies circuit design and integration.
The maximum forward voltage drop for this diode is 1.1 volts.
The peak non-repetitive forward surge current rating for this model is 30 amperes.
It is suitable for applications in power supplies, converters, and rectifier circuits, as well as other electronic modules.
The Vishay GF1J-E3/67A diode is manufactured in India.
