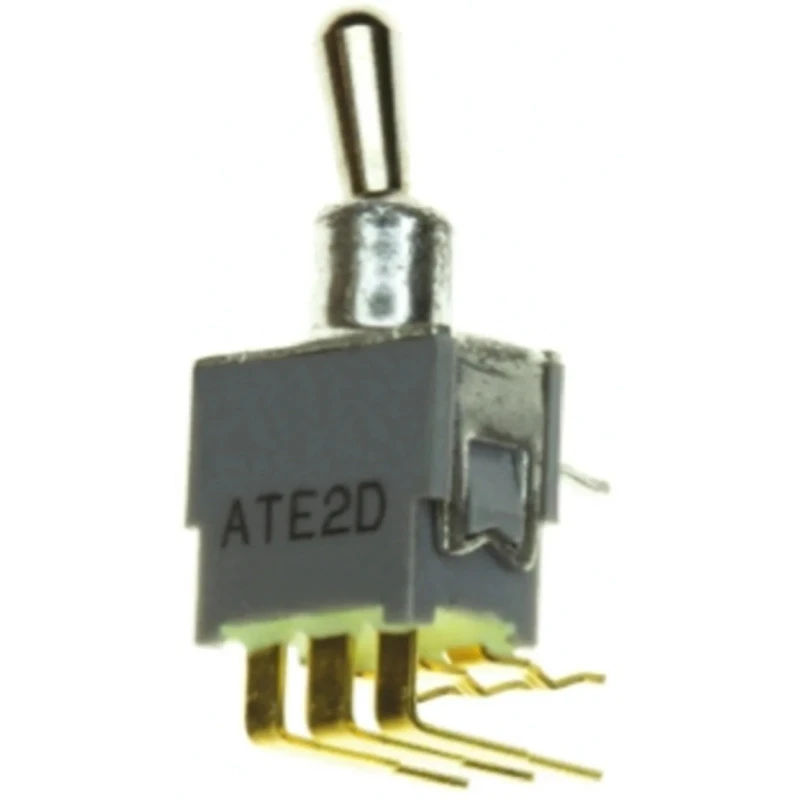

KNITTER-SWITCH Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 48V ac ATE2D-RA
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | ATE2D-RA |
| Mount Type | PCB |
| Series | ATE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Switch Configuration | SPDT, DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 6mm |
| Switch Contact Current | 50mA |
| Mechanical Life | 60000Operations |
| Contact AC Voltage | 48V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- The switch features a chrome plated brass actuator for durability.
- Contact configuration is double pole double throw (DPDT) with an On-On switch operation.
- It supports a switch contact current of 50mA suitable for low current control circuits.
- The switch is RoHS compliant ensuring environmental safety.
- It includes a 6mm actuator length for easy toggling.
- Mounting type is PCB mount with through hole terminals for secure fitting.
- Non-illuminated design enhances simplicity and reliability.
- Insulation resistance is greater than 500 MΩ at 250 Vdc for high safety margin.
Product Description
KNITTER-SWITCH ATE2D-RA Toggle Switch is a precision-engineered On-On DPDT toggle switch designed for through hole PCB mounting. Rated for 48V AC operation and a switch contact current of 50mA, this toggle switch combines durability with compact form factor, thanks to its 6mm chrome plated brass actuator.
Constructed with nickel-plated brass and a washable PBT case, this switch provides robust insulation resistance exceeding 500 MΩ at 250V DC, ensuring reliable operation under various electrical conditions. It sustains a mechanical life of 60,000 operations, making it suitable for demanding industrial and electrical applications.
The toggle switch is RoHS certified, endorsing its compliance with environmental standards. It is engineered to operate efficiently within temperatures ranging from -20°C to 80°C, accommodating various ambient environments.
This product is ideal for electrical and automation sectors where PCB mounting and durable switch operation are critical. Its through hole terminal design assures secure integration into printed circuit boards.
The chrome plated brass actuator offers sturdy switching action. DPDT contact configuration enables versatile circuit control and electrical routing. 50mA contact current supports low-power electrical applications. PCB mount with through hole terminals simplifies circuit board assembly.
Non-illuminated design suits straightforward switching tasks. Mechanical life rating of 60,000 operations guarantees longevity. Wide operating temperature range from -20°C to 80°C supports varied environmental conditions.
RoHS compliance ensures adherence to environmental directives. Nickel-plated brass parts provide corrosion resistance and product reliability. Insulation resistance exceeding 500 MΩ enhances safety in electrical circuits.
As a trusted component in electrical switch applications, the KNITTER-SWITCH ATE2D-RA toggle switch is indispensable for industrial automation, electronics manufacturing, and maintenance operations. Explore more products in the Toggle Switch category on EnvMart to find complementary switches and control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration is double pole double throw (DPDT), allowing for versatile circuit control and electrical routing.
The maximum operating temperature for this model is 80°C, accommodating various ambient environments.
It supports PCB mounting with through hole terminals for secure fitting on printed circuit boards.
This toggle switch is rated for 48V AC operation and supports a switch contact current of 50mA, suitable for low current control circuits.
The mechanical life of this toggle switch is rated for 60,000 operations, ensuring longevity in use.
The actuator is made of chrome plated brass, providing a sturdy switching action.
Yes, the ATE2D-RA is RoHS compliant, ensuring it meets environmental safety standards.
The insulation resistance exceeds 500 MΩ at 250 Vdc, providing a high safety margin in electrical applications.
The minimum operating temperature for this model is -20°C, suitable for various environmental conditions.
This switch features an On-On operation, allowing for two active positions.
The actuator length is 6mm, facilitating easy toggling during operation.
This model is suitable for electrical and automation sectors where PCB mounting and durable switch operation are critical.
