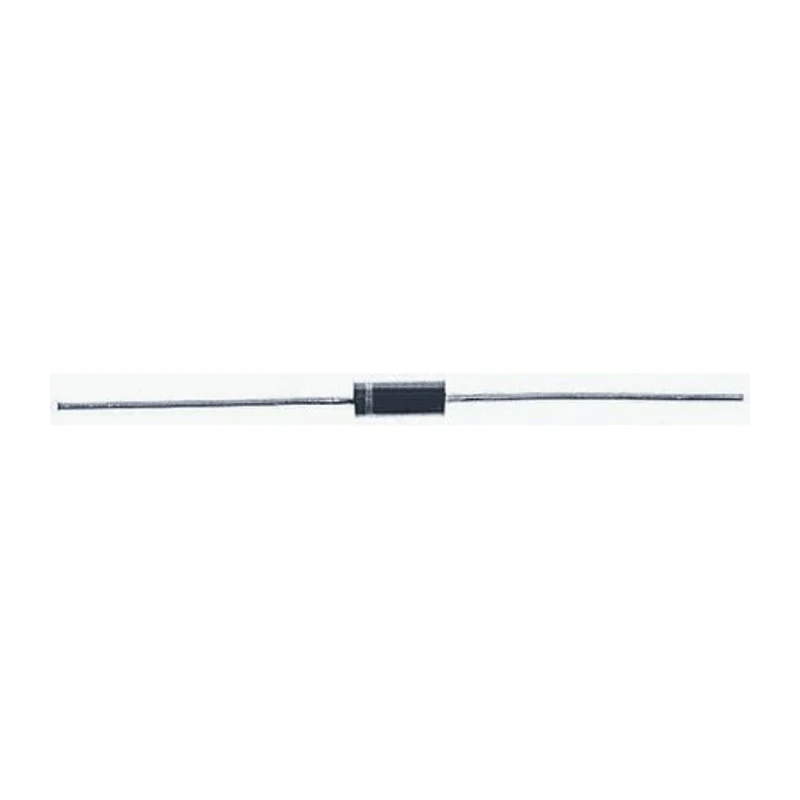

onsemi 50 V 1 A Schottky Diode Through Hole DO-41 MBR150RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | MBR150RLG |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | MBR150 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- Schottky barrier diode offering low forward voltage drop.
- Through hole mount type in DO-41 package for easy PCB insertion.
- Maximum continuous forward current 1 ampere.
- Peak reverse repetitive voltage of 50 volts.
- Peak forward surge current up to 25 amperes.
- Operating temperature range from -65°C to 150°C.
- Compact dimensions with length 5.2 mm and diameter 2.7 mm.
- Epoxy moulded lightweight package weighing approximately 11.7 mg.
Product Description
onsemi MBR150RLG Schottky Diode is a surface mount power rectifier that utilizes the Schottky barrier principle to achieve a low forward voltage drop coupled with very low reverse leakage current. This diode is designed for use in electronics applications requiring fast switching and efficient rectification.
Featuring a 50 volts peak reverse voltage and continuous forward current of 1 ampere, this diode is ideal for low voltage, high frequency circuits. The DO-41 through hole package allows for convenient mounting in various electronic assembly processes.
Its peak non-repetitive forward surge current capability of 25 amperes ensures robust performance during transient conditions. Operating temperature ranges from -65°C up to 150°C support usage in demanding industrial and commercial environments.
The diode’s compact package with dimensions of 5.2 mm length and 2.7 mm diameter provides a lightweight solution (approximately 11.7 mg), optimized for automated board assembly. The epoxy moulded case offers excellent mechanical and environmental protection.
This Schottky diode is suitable for applications including switching power supplies, freewheeling diodes, and polarity protection in circuits requiring efficient, reliable rectification with minimized switching losses.
Schottky barrier diode for low forward voltage drop. Through hole double-pin DO-41 package for easy mounting. Continuous forward current rated at 1 ampere. Peak reverse voltage capability of 50 volts. High surge current tolerance up to 25 amperes.
Wide operating temperature range: -65°C to 150°C. Compact, lightweight epoxy moulded case. Ideal for high-frequency rectification and polarity protection. Designed for automated assembly and robust industrial use.
This product is suited for electronics manufacturing, industrial equipment, power electronics, consumer electronics, and repair applications. For more related semiconductor components, explore other offerings under the Schottky Diodes & Rectifiers category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 1 ampere.
The peak reverse repetitive voltage rating is 50 volts.
This model can handle a peak non-repetitive forward surge current of up to 25 amperes.
The DO-41 package has a length of 5.2 mm and a diameter of 2.7 mm.
The operating temperature range is from -65°C to 150°C.
This diode uses a through hole mounting type.
The maximum forward voltage drop is rated at 1 volt.
The diode weighs approximately 11.7 mg.
The diode configuration is single.
This model is suitable for applications such as switching power supplies, freewheeling diodes, and polarity protection.
The peak reverse current is specified as 500 μA.
This diode belongs to the MBR150 series.
