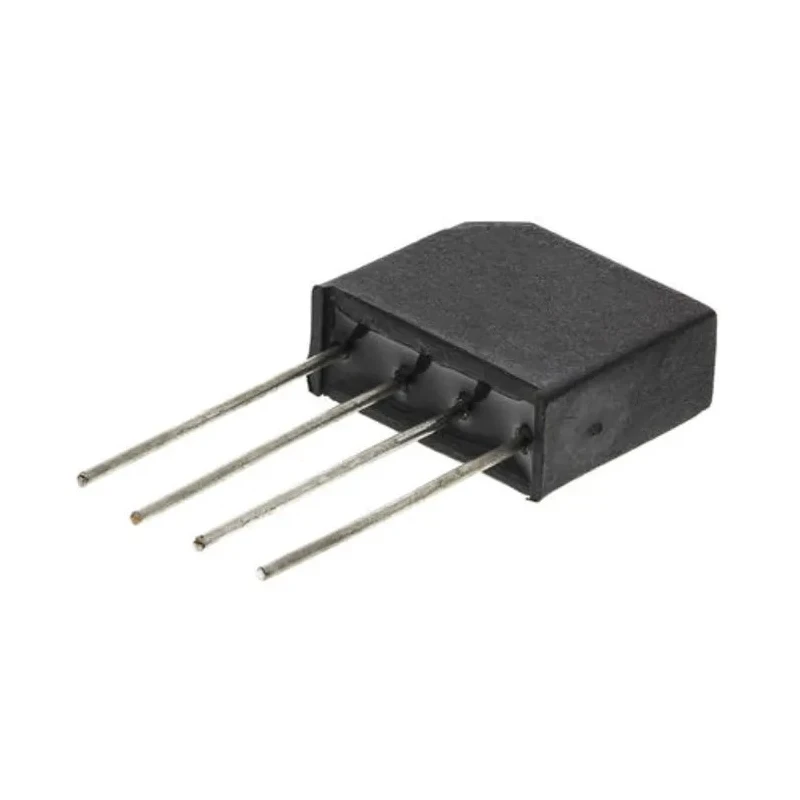

Vishay Bridge Rectifier, 100 V Peak Reverse Repetitive Voltage, 52 A Peak Surge Current, 4-Pin Single VS-2KBB10R

Vishay VS-2KBB10R Bridge Rectifier is a robust semiconductor device engineered for converting alternating current (AC) to direct current (DC) in full-wave rectification applications. Featuring a 4-pin single-phase configuration and through-hole SIL PCB mounting, this rectifier is designed for reliable integration into printed circuit boards.

This bridge rectifier supports a peak reverse repetitive voltage of 100 V and a forward current rating of 1.9 A, with the capability to withstand peak non-repetitive forward surge currents up to 52 A. Its compact D-37 package with dimensions 17.5 mm length, 15 mm height, and 6.5 mm width, allows for efficient space utilization in electronic assemblies.

The device operates within a broad temperature range from -40°C to 150°C, ensuring performance stability across varied environments. The low peak forward voltage drop of 1.1 V and minimal peak reverse leakage current of 10 μA contribute to high conversion efficiency and reduced power losses.

The rectifier's construction provides compactness and thermal efficiency. The leads fit a standard 2.54 mm (0.1 inch) grid, facilitating straightforward through-hole mounting. Standard pin configurations simplify circuit design and component replacement, with the option to use an alternative pin configuration by suffix ‘R’ in part numbers.

Commonly applied in industrial, electronics, automotive, and power supply manufacturing settings, Vishay's VS-2KBB10R bridge rectifier meets rigorous demands for durability and electrical performance. Its surge current handling and thermal stability make it ideal for power conversion in control systems and consumer electronics.

Compact SIL PCB mounting with leads on 2.54 mm grid for easy through-hole installation. High surge current capability ensures reliable operation under transient load conditions. Wide operating temperature range from -40°C to 150°C suits diverse industrial environments.

Low peak forward voltage of 1.1 V allows efficient rectification with minimal losses. Standard pin configuration enables straightforward integration into existing circuit designs. Constructed for high reliability and thermal performance in power conversion applications.

Equipped with an industry-standard D-37 package measuring 17.5 mm length, 15 mm height, and 6.5 mm width. Provides full-wave rectification converting AC input into DC output for power supply circuits. Peak reverse current of 10 μA minimizes leakage and improves overall efficiency.

Manufactured in India ensuring quality compliance for electronic components.
