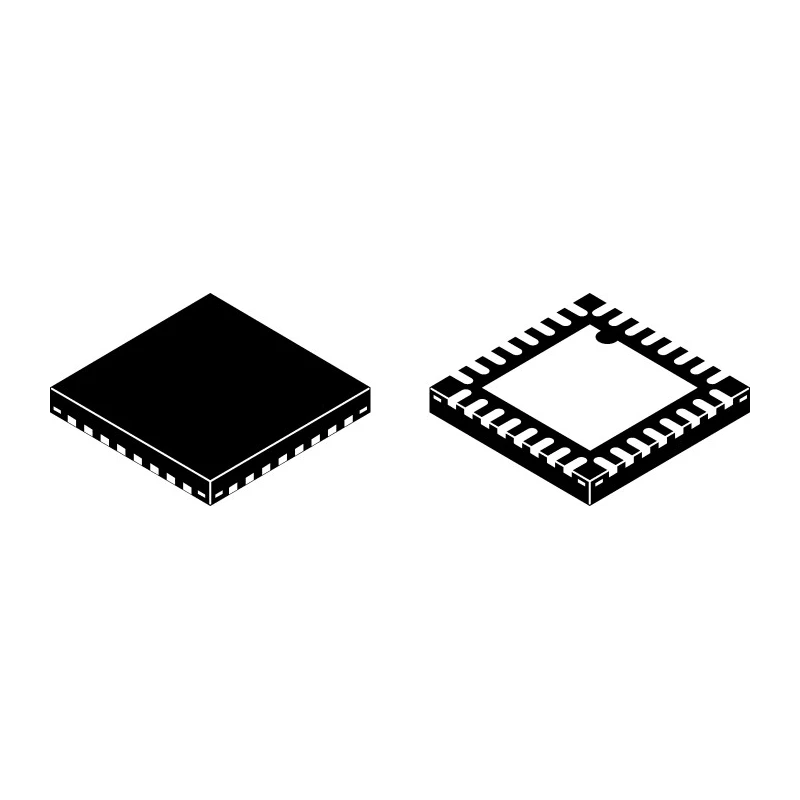

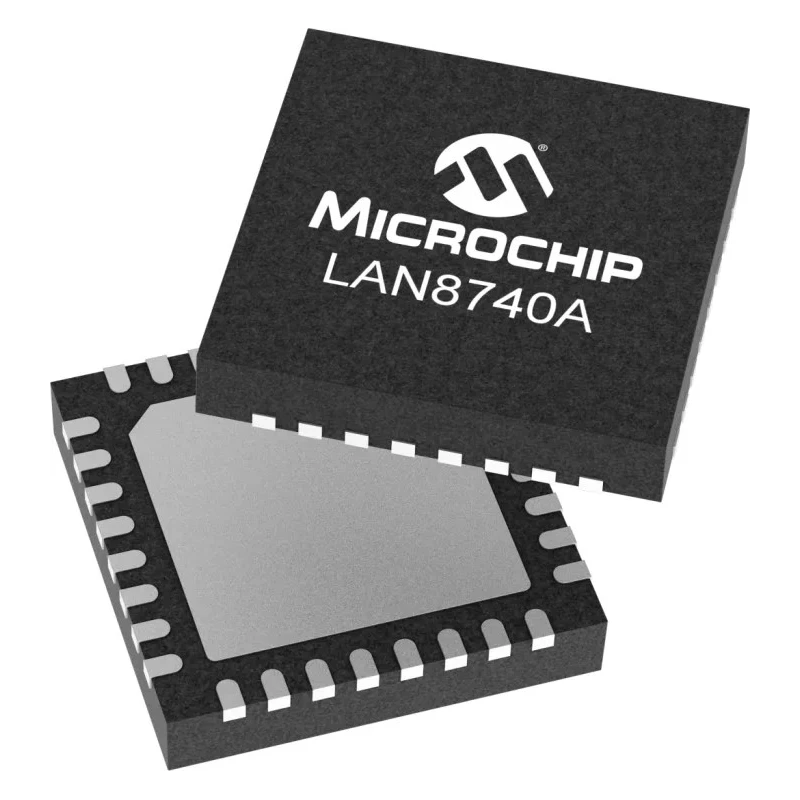

Microchip 32-Pin SQFN Ethernet Transceiver 100Mbps 3.3V RMII Full Duplex/Half Duplex LAN8740A-EN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 5mm |
| Model | LAN8740A-EN |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | SQFN |
| Minimum Operating Temperature | 0°C |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | RMII |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 55mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3az, IEEE 802.3, IEEE 802.3u |
| Number of Transceivers | 1 |
Key Features
- Supports 10/100 Mbps Ethernet communication.
- 32-Pin SQFN package ensures compact surface mount design.
- Operates at 3.3V supply voltage for low power consumption.
- Internal loopback mode for testing and diagnostics.
- Meets IEEE 802.3, 802.3u, and 802.3az Ethernet standards.
- Wide operating temperature range from 0°C to 70°C.
- Compact physical dimensions of 5 mm by 5 mm by 1 mm thickness.
- Consumes supply current of 55mA at typical operation.
Product Description
Microchip LAN8740A-EN is a high-performance 32-pin SQFN Ethernet transceiver designed for fast and reliable network communications. Operating at a maximum data rate of 100 Mbps with a 3.3V supply, this transceiver supports both full duplex and half duplex communication modes over RMII interface, ensuring flexible deployment in Ethernet networking equipment.
This device complies with IEEE 802.3, 802.3u, and energy-efficient IEEE 802.3az standards, making it suitable for energy-conscious applications. The internal loopback mode facilitates system diagnostics and functional testing without requiring external test equipment.
With a compact 5 mm by 5 mm footprint and 1 mm height, the LAN8740A-EN package type is surface mountable, allowing integration into modern compact printed circuit boards for industrial, commercial, and electronic instrumentation applications.
Its electrical characteristics include a supply current of 55 mA and a 3.3V maximum supply voltage, optimized for low power consumption. The operating temperature range from 0°C to 70°C ensures reliable performance in typical commercial environments.
The LAN8740A-EN Ethernet Transceiver is ideal for use in network interface cards, embedded systems, and devices requiring seamless 10/100 Mbps Ethernet connectivity. Its single transceiver design supports robust and efficient data transfers suitable for consumer, industrial controls, and communication infrastructure.
Supports 10/100 Mbps Ethernet communication. 32-Pin SQFN package ensures compact surface mount design. Operates at 3.3V supply voltage for low power consumption. Internal loopback mode for testing and diagnostics. Meets IEEE 802.3, 802.3u, and 802.3az Ethernet standards.
Wide operating temperature range from 0°C to 70°C. Compact physical dimensions of 5 mm by 5 mm by 1 mm thickness. Consumes supply current of 55mA at typical operation. Single transceiver architecture suitable for diverse Ethernet applications.
Surface mount device compatible with automated assembly processes. Explore the full selection of semiconductor components and Ethernet interface ICs at EnvMart for robust networking solutions in electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LAN8740A-EN supports a maximum data rate of 100 Mbps for Ethernet communication.
This model operates at a maximum supply voltage of 3.3V.
It supports both full duplex and half duplex communication modes over the RMII interface.
The operating temperature range for the LAN8740A-EN is from 0°C to 70°C.
It has compact dimensions of 5 mm in length, 5 mm in width, and 1 mm in height.
This transceiver meets the IEEE 802.3, 802.3u, and IEEE 802.3az Ethernet standards.
The LAN8740A-EN consumes a supply current of 55 mA during typical operation.
Yes, it includes an internal loopback mode for testing and diagnostics without needing external equipment.
It is packaged in a 32-pin SQFN (Thin Quad Flat No-lead) format, suitable for surface mounting.
The LAN8740A-EN features a single transceiver architecture.
This model is designed for surface mounting, allowing integration into compact circuit boards.
It is ideal for use in network interface cards, embedded systems, and devices requiring 10/100 Mbps Ethernet connectivity.
