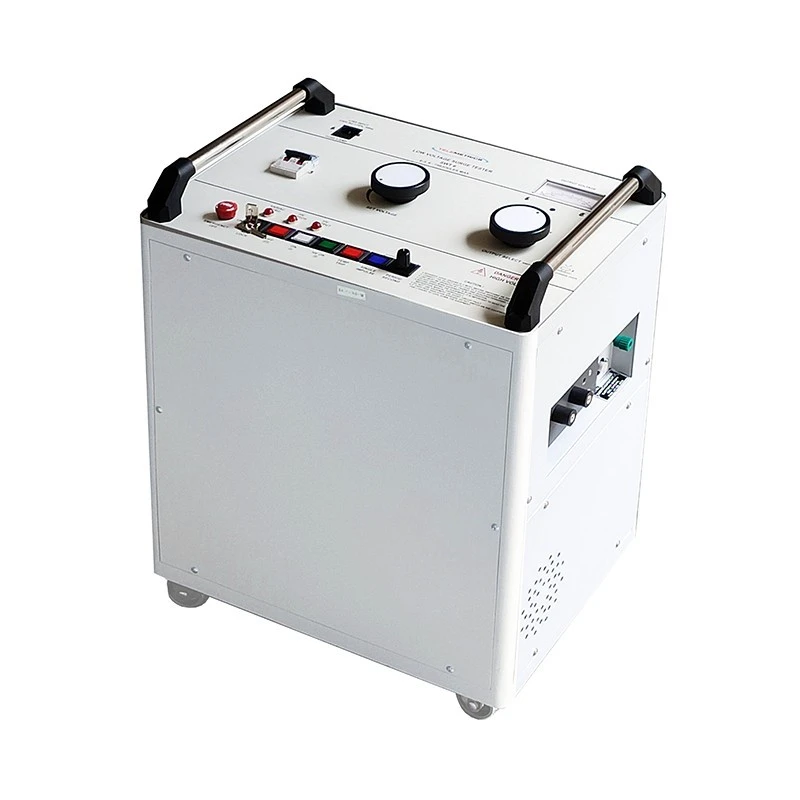

Motwane Low Voltage Surge Tester SWT 6 image-1

Free Delivery in India | Lowest Global Shipping Charges

Motwane SWT 6 Low Voltage Surge Tester

Name: Motwane SWT 6 Low Voltage Surge Tester
Brand: Motwane
SKU: ADDYC
Price: 69.5 USD
Availability: InStock



SKU ADDYC Category Voltage Detectors Brand Motwane Condition New

Specifications

Country of Origin	India
Brand	Motwane
Power Supply	230V AC ±10% / 50 Hz / Single Phase
Operating Temperature	0 Deg C ~ 55 Deg C
Dimensions	585(L) x 350(W) x 525(H) mm + Handle 50mm + Wheel 65mm
Storage Temperature	-5 Deg C ~ 60 Deg C
Product Name	LV Surge Tester SWT 6
Model	SWT 6
Weight	60 KG APPROX
Operating Time	1-2 hours continuous
Overload Protection	Input current limiter switch in mains input supply / Fast blow fuse in controlled supply
Cooling System	Air-cooled
Standard Warranty	One Year
Indications	ON/OFF lamp indication / Analog moving coil meter for output voltage (kV) / Over Heat indication
Output Energy	750 Joules full energy at each range
Output Voltage Ranges	0-3 & 6 kV selectable & continuously variable
Impulse Mode	Single and Auto
Auto Impulse Sequence	2 / 4 seconds intervals
Safety Protections	Variac zero inter-lock / HV Switch inter-lock / Over Heat Protection / Input current MCB trip in input supply
Earth Discharge	Soft and automatic discharge
Other Models Available	LV Surge Tester SWT 6D (3kV & 6kV-1000J)
Associated Receiver	Surge wave receiver SLE90

Key Features

Pin-point location of cable faults in Low voltage cables by acoustic method.
Output voltage selectable ranges 0-3 kV, 6 kV continuously variable.
High energy of 750 Joules.
Full energy delivering capacity at each select range.
Single Impulse and 2, 4 seconds intervals Sequence.
Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
LT Network 1.1kV.

Product Description

The LV Surge Tester SWT 6 is a device used to precisely locate faults in underground power cables using acoustic methods. It employs a suitable Surge Wave Receiver to pinpoint these faults. Additionally, it can pre-locate fault distances with a suitable pre-locator unit in impulse current (ICM) mode. It is designed to deliver 750 Joules of energy at selectable ranges of 3kV and 6kV, making it effective for use on low voltage power cable networks.

Application

It is used to pin-point underground cable faults in power transmission, distribution cable networks in acoustic mode with the help of a suitable surge wave receiver.

Standard Accessories

HV Output Cable (6 sq mm single core screen cable, 5-meter length with heavy-duty clamp).
Mains supply cord (3-meter length).
Yellow/Green earthing cable (10 sq mm, 5-meter length).
