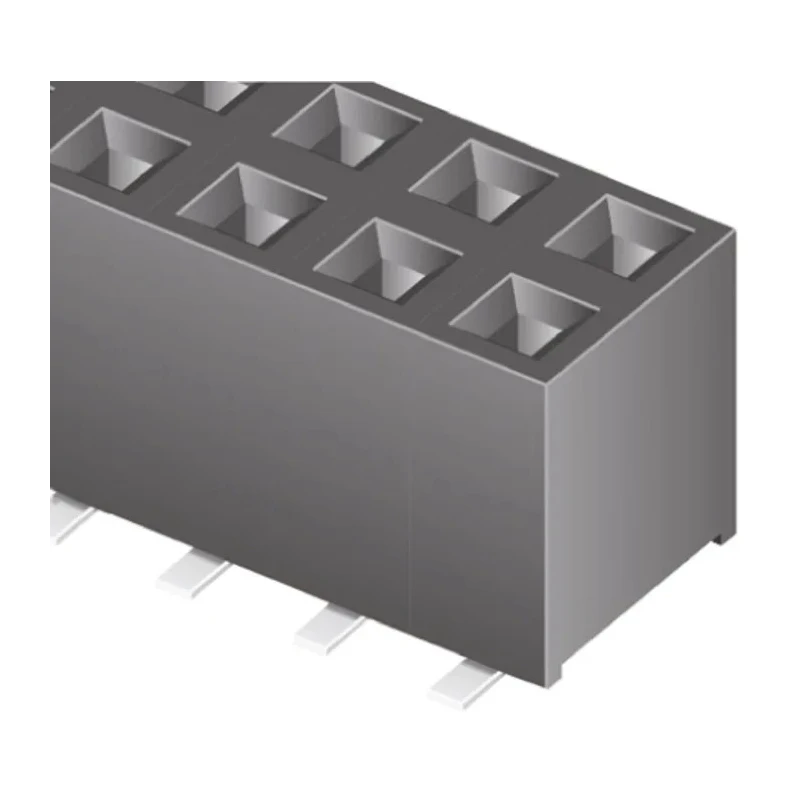

Samtec TLE Series Straight Surface PCB Socket, 18-Contact, 2 Row, 2 mm Pitch, Solder Termination TLE-109-01-G-DV

Samtec TLE-109-01-G-DV is a premium Straight Surface PCB Socket from the TLE Series designed for reliable board-to-board connections in electronic applications. This 18-contact, dual-row socket features a 2 mm pitch offering precise and compact connectivity solutions for modern PCBs.

The socket housing is made from robust black Liquid Crystal Polymer (LCP), ensuring resistance to heat and mechanical stress. The bronze contact pins are plated with 0.25 μm of gold, providing excellent corrosion resistance and consistent electrical conductivity. Designed as a surface mount device with solder termination type, it guarantees secure and durable placement on PCBs.

Capable of handling a current rating of 3.2 amperes, this socket operates efficiently over a wide temperature range from -55 °C to 125 °C, suitable for demanding industrial and commercial environments. It maintains a low profile with a 4.5 mm height above the board, optimizing space for compact electronic assemblies.

The straight orientation and 2-row configuration with 2 mm row pitch facilitate straightforward integration with system headers and connectors. It is compatible with TMM series SMT and through-hole headers, offering versatile mating options.

This product is ideal for applications in industrial controls, instrumentation, telecommunications, and other electronic manufacturing fields requiring reliable board-to-board interfacing components.

Features 18 female contacts designed for board-to-board connection. Constructed with black Liquid Crystal Polymer insulator material ensuring high durability. Contact material is bronze with gold plating to enhance conductivity and prevent corrosion.

Supports current up to 3.2 A with termination by solder for secure mounting. Surface mount type with straight orientation suitable for printed circuit board applications. Designed with 2 mm pitch between rows and pins for compact PCB layouts.

Operating temperature range from -55 °C to 125 °C for reliable performance in harsh environments. Measures 4.5 mm board height above mount for space-optimized designs. Compatible with mating TMM SMT and Through Hole Headers for flexible system integration.

Ideal for electronics manufacturing, industrial automation, and board-to-board connection needs. Samtec products at EnvMart provide industry-grade quality and compatibility, trusted for electronics and industrial projects worldwide.
