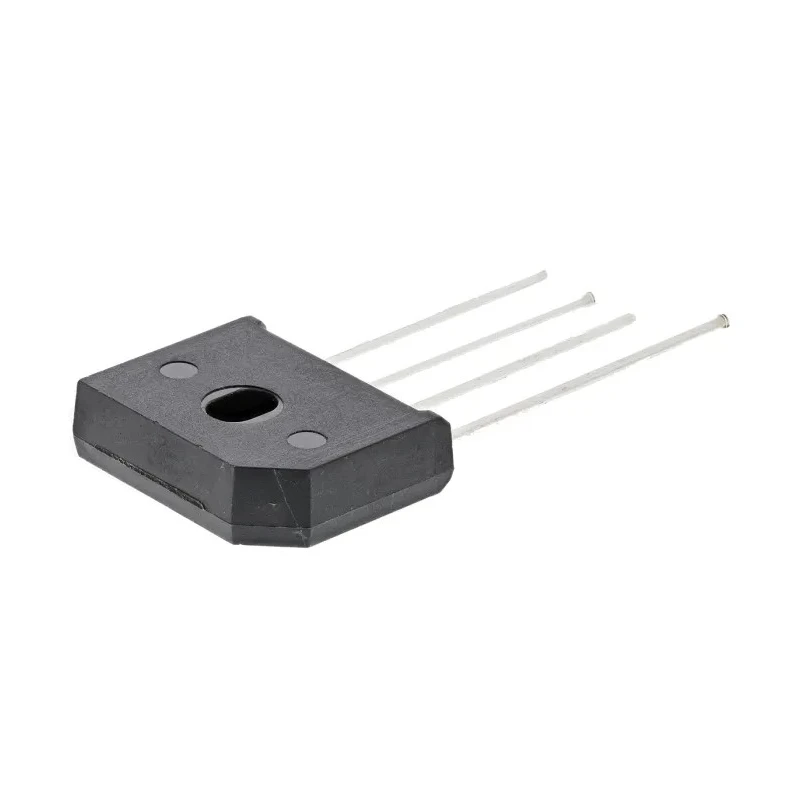

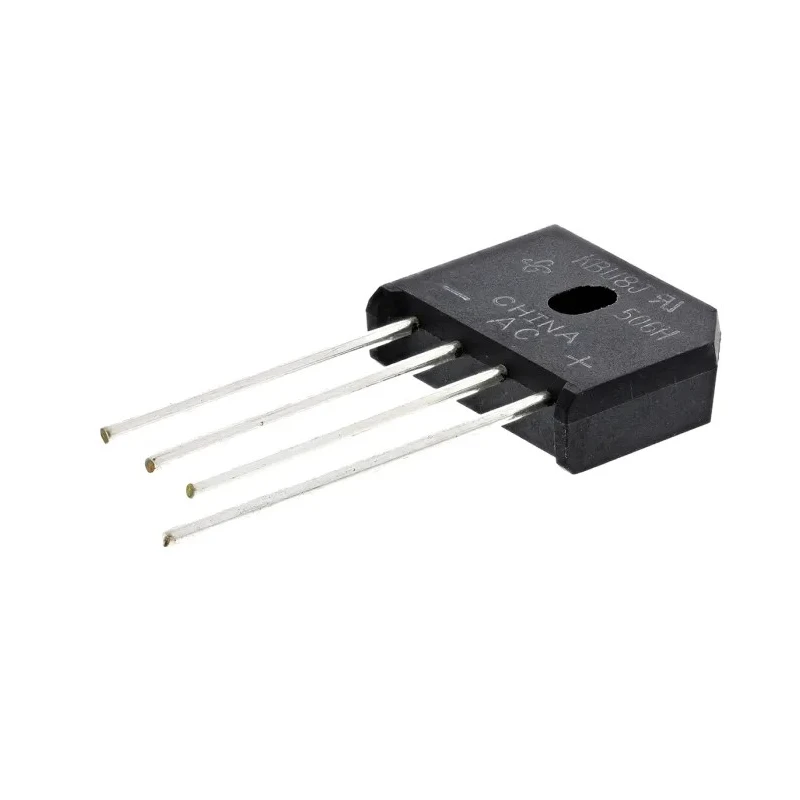

Vishay Bridge Rectifier Through Hole KBU Series, 600 V Peak Reverse Voltage, 8 A Forward Current, 300 A Surge KBU8J-E4/51

Vishay KBU8J-E4/51 Bridge Rectifier is a semiconductor device designed for converting alternating current (AC) to direct current (DC) through full-wave rectification. It features a 4-pin single-phase KBU package enabling easy through-hole mounting on printed circuit boards.

This rectifier supports a peak reverse repetitive voltage (Vrrm) of 600 V and a continuous forward current (If) of 8 A, capable of withstanding surge currents up to 300 A, making it suitable for demanding power electronics applications.

The device operates reliably within a temperature range of -50°C to 150°C and offers a low peak forward voltage drop of 1 V, minimizing power dissipation and improving system efficiency. The minimal peak reverse current rating of 10 μA enhances performance by reducing leakage.

Its compact dimensions of 23.7 mm length, 19.3 mm height, and 7.1 mm width allow for efficient PCB layout and space savings in electronic assemblies. The isolating voltage of 1500 Vrms enhances electrical safety by preventing unintended current paths.

Through-hole mounting design for robust mechanical and electrical attachment. 600 V maximum reverse voltage capability protects circuits from voltage spikes. 8 A forward current rating suitable for moderate power applications.

300 A surge current rating withstands transient overloads reliably. Wide operating temperature range supports industrial and commercial environments. Low forward voltage drop reduces heat generation and improves efficiency.

Minimal leakage current maintains circuit integrity. Compact size assists in miniaturizing power electronic devices. Isolating voltage of 1500 Vrms ensures circuit safety in high voltage scenarios. Applicable in power supplies, converters, and motor controls in industrial, laboratory, and commercial equipment.

Vishay's KBU series bridge rectifiers are engineered for durability, reliability, and optimal thermal performance. The KBU8J-E4/51 model is well-suited for integration into power conversion systems requiring steady DC output from AC inputs.

Explore Vishay semiconductors and Bridge Rectifiers to find quality components fit for various electronic and electrical applications at EnvMart.
