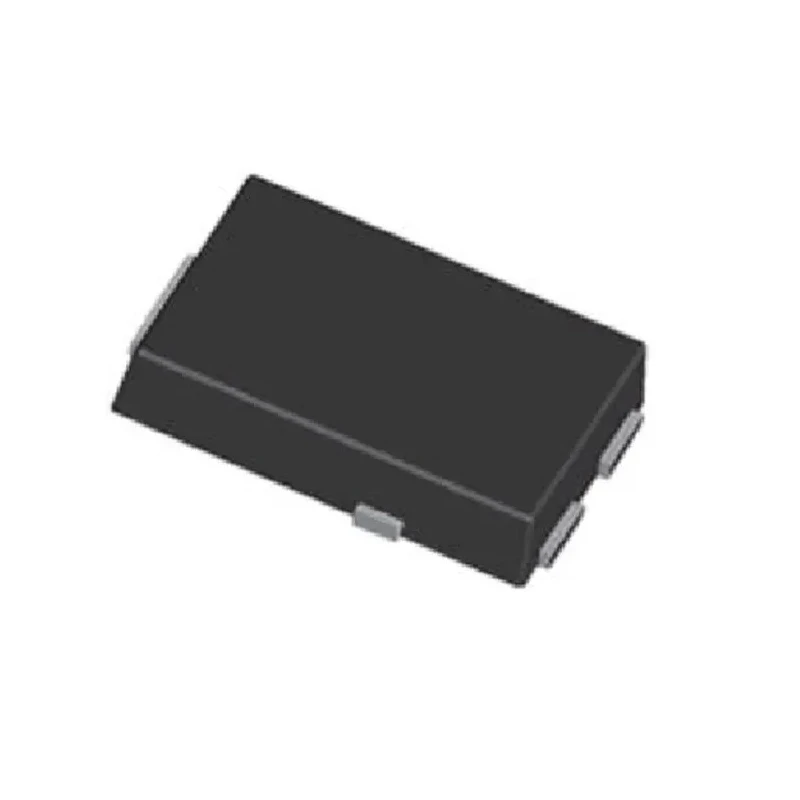

Vishay 150 V 15 A Schottky Barrier Rectifier Surface Mount TO-252 Package V15PM153HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V15PM153HM3/H |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.62V |
Key Features
- Utilizes trench MOS Schottky technology for low forward voltage drop and high efficiency operation.
- Designed for low voltage, high frequency DC/DC converter applications and polarity protection.
- Features a maximum continuous forward current of 15 amperes and peak reverse voltage of 150 volts.
- Robust operating temperature range from -65°C to 150°C suitable for automotive and industrial use.
- Complies with RoHS and meets automotive standard AEC-Q101, ensuring quality and reliability.
- Low profile design with a typical height of 1.3 mm allowing automated placement on PCBs.
- Capable of handling peak non-repetitive surge current up to 200 amperes.
- Meets Moisture Sensitivity Level 1 per J-STD-020 for reliable soldering processes.
Product Description
Vishay V15PM153HM3/H is a high current density Schottky barrier rectifier packaged in a TO-252 surface mount form factor. It operates at a maximum reverse voltage of 150 V and continuous forward current of 15 A, making it ideal for power electronics applications such as low voltage, high frequency DC/DC converters, freewheeling diodes, and polarity protection circuits.
This device employs advanced trench MOS Schottky technology, resulting in a low forward voltage drop of typically 0.62 V, which significantly reduces power losses and increases efficiency in high-frequency switching environments.
The robust design supports an operating temperature range from -65°C to 150°C, suitable for automotive and industrial environments. It is qualified to AEC-Q101 automotive standards and is RoHS compliant, ensuring both environmental safety and reliability.
IThe package’s low profile, around 1.3 mm in height, facilitates automated PCB assembly, while its surge current capability of 200 A peak non-repetitive forward surge current (Ifsm) provides rugged protection under transient conditions.
Advanced trench MOS Schottky technology enables low forward voltage drop and high efficiency. Compact TO-252 surface mount package suitable for automated placement. Maximum continuous forward current rating of 15 A for power handling.
Reverse voltage of 150 V protects against voltage spikes in circuits. Wide operating temperature range from -65°C to 150°C for demanding applications. Compliant with RoHS and AEC-Q101 automotive standards for quality assurance.
Capable of handling excessive surge currents with a peak non-repetitive current of 200 A.
This Vishay Schottky diode is widely applied in industrial, automotive, and power supply manufacturing environments, where efficiency and reliability are critical. It is specifically suited for use in power converters, automotive power management, and protection circuits requiring a robust rectifying solution.
Explore a comprehensive range of Vishay semiconductor components at EnvMart for trusted performance in your designs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 15 amperes.
This Schottky barrier rectifier has a peak reverse voltage of 150 volts.
It operates within a temperature range of -65°C to 150°C, making it suitable for various demanding applications.
This model is packaged in a TO-252 surface mount configuration.
The maximum forward voltage drop is typically 0.62 volts.
It can handle a peak non-repetitive forward surge current of up to 200 amperes.
Yes, it complies with the AEC-Q101 automotive standard, ensuring quality and reliability for automotive applications.
This model is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for low voltage, high frequency DC/DC converter applications, freewheeling diodes, and polarity protection circuits.
This Schottky rectifier features a single diode configuration.
The country of origin for this model is India.
It belongs to the eSMP series of Schottky diodes.
