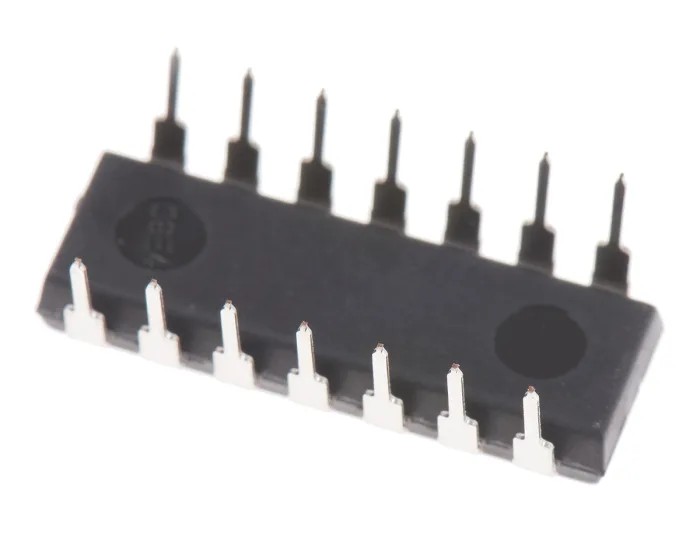

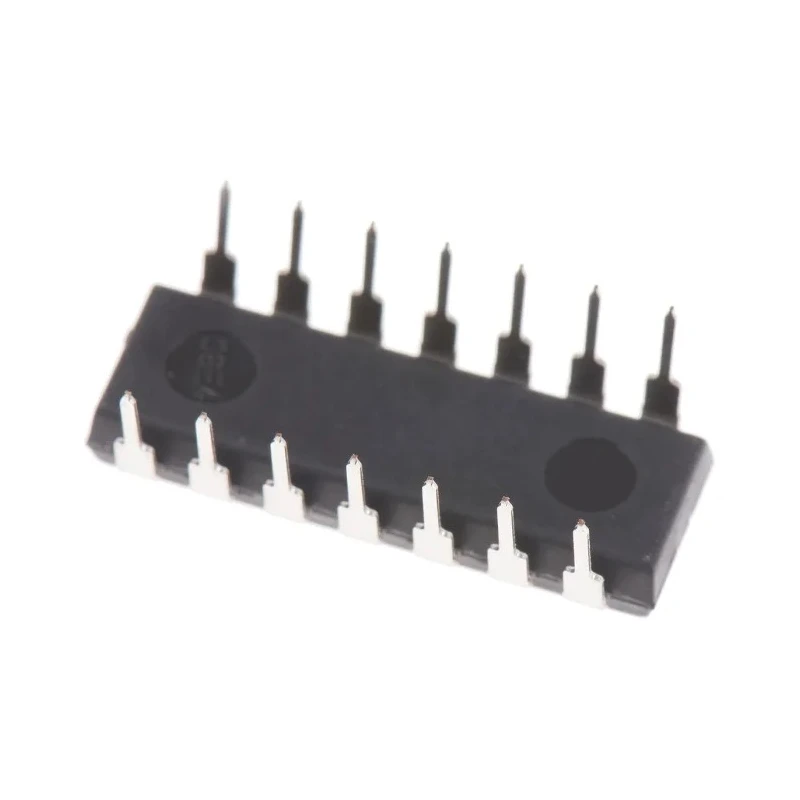

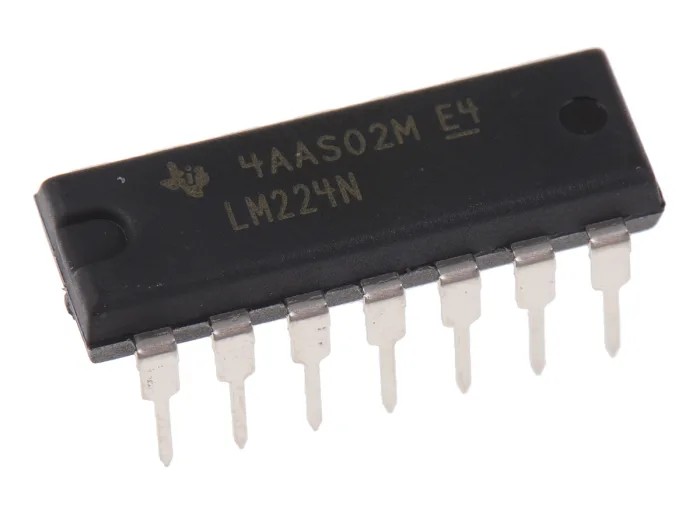

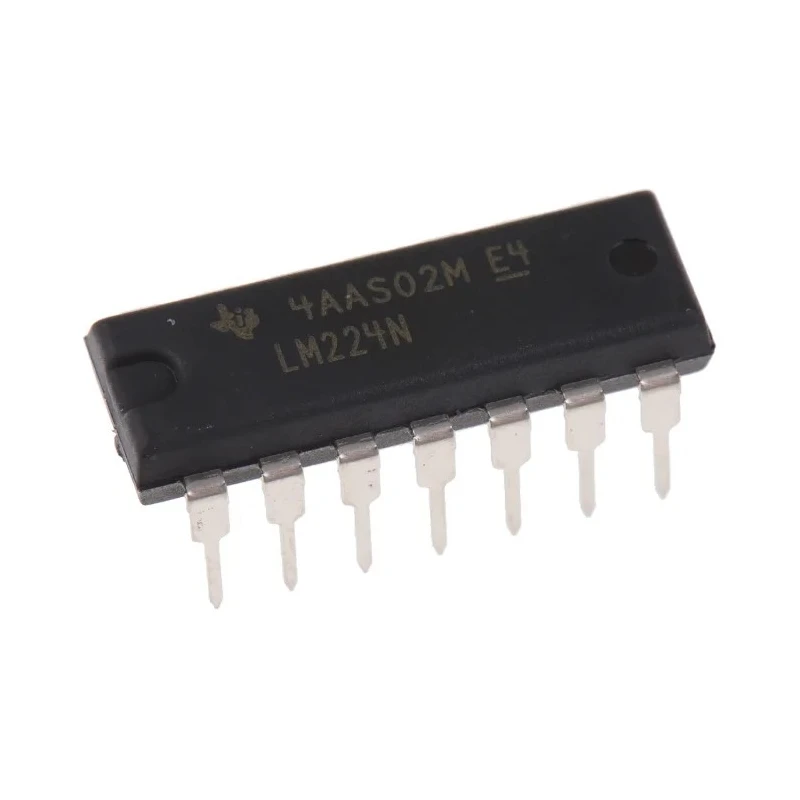

Texas Instruments Operational Amplifier 1.2 MHz 14-Pin PDIP LM224N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LM224N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM224 |
| Output Current | -10mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | -300 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 100 nA |
Key Features
- Provides four independent channels for versatile signal amplification.
- Operates with a supply voltage range from 5V to 30V.
- Features a gain bandwidth product of 1.2 MHz for reliable amplification.
- Includes a low input bias current of -300 nA and input offset current of 100 nA.
- Offers a slew rate of 0.5 V/μs ensuring stable signal transition.
- Works within an operating temperature range of -25°C to 85°C.
- Encased in a through-hole 14-pin PDIP for easy integration on circuit boards.
- Implements RoHS compliant manufacturing standards.
Product Description
Texas Instruments LM224N is a versatile operational amplifier featuring a quad-channel configuration in a 14-pin PDIP package. It operates within a supply voltage range of 5V to 30V and supports a 1.2 MHz gain bandwidth product, delivering cost-effective, reliable performance in general-purpose signal amplification tasks.
This component includes a low input bias current of -300 nA and input offset current of 100 nA, combined with a 0.5 V/μs slew rate, which facilitates smooth and precise signal processing. Designed for through-hole mounting, the LM224N package measures 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, making it suitable for various PCB layouts.
The operational amplifier functions reliably over a wide operating temperature range of -25°C to 85°C, making it suitable for use in industrial, commercial, and laboratory electronic equipment. It is compliant with RoHS standards, ensuring environmental safety.
Its four independent channels provide flexibility for multi-signal amplification in complex circuits, including audio amplification, signal conditioning, and instrumentation applications.
Four independent channels in a single package for versatile use. Wide voltage supply range from 5V to 30V for diverse applications. Stable gain bandwidth of 1.2 MHz suitable for multiple signals. Low input bias and offset currents for precise signal handling.
Moderate slew rate ensuring signal fidelity during transitions. Reliable operation across -25°C to 85°C operating temperatures. User-friendly through-hole 14-pin PDIP mounting package. RoHS compliance for eco-friendly electronic manufacturing.
This LM224 Series amplifier is ideal for integration in electronic circuit designs requiring reliable, low-power, and efficient amplification. Explore more Operational Amplifiers and related semiconductor components in the Electronics & Electricals section of EnvMart to meet your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM224N features a gain bandwidth product of 1.2 MHz, suitable for various signal amplification tasks.
It operates with a supply voltage range from 5V to 30V, allowing for diverse applications.
This model provides four independent channels for versatile signal amplification.
The LM224N measures 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, making it suitable for various PCB layouts.
It functions reliably over a wide operating temperature range of -25°C to 85°C.
The operational amplifier has a slew rate of 0.5 V/μs, ensuring stable signal transitions.
It is encased in a through-hole 14-pin PDIP package for easy integration on circuit boards.
The LM224N has a low input bias current of -300 nA and an input offset current of 100 nA, facilitating precise signal handling.
Yes, the LM224N is manufactured in compliance with RoHS standards, ensuring environmental safety.
This operational amplifier can handle a maximum output current of -10 mA.
The LM224N has an input offset voltage of 7 mV, which is important for accurate signal amplification.
The LM224N is part of the LM224 series of operational amplifiers, known for their versatility in signal amplification.
